Loading Dock Vehicle Restraints Model VR
Loading Dock Vehicle Restraints Model VR

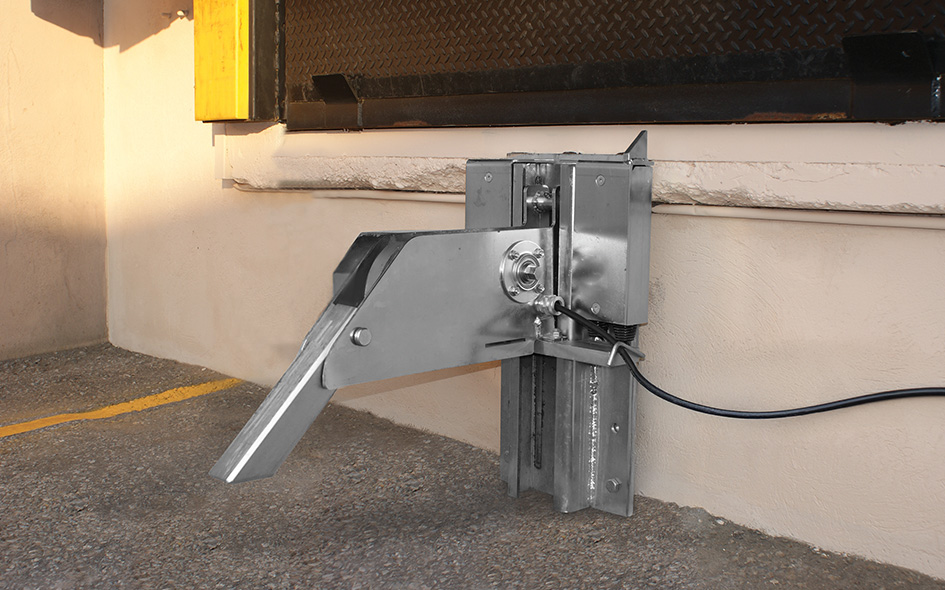

The Overhead Door™ Vehicle Restraint is designed for safety and reduces the risk of dock accidents. With a high-visibility hook-style restraint arm, it is the ideal solution for keeping workers, equipment, and cargo safer during loading and unloading. Its rugged design makes it virtually maintenance-free with the ability to function in the toughest environments. The unique rotating hook engages over the impact guard using a restraining force of 32,000 lbs (14,514 kgs).
1-Year Limited Warranty
Overhead Door™ Tech Support: 1-800-929-4692Features & Benefits
- No Mechanical Limit Switches - Hook position constantly monitored by means of reliable, waterproof position sensor
- Pulse Width Modulation Motor Control - Increases life of motor and mechanical parts suffer less impact damage due to integrated shock absorption.
- Restraint Hook Maintains Contact With ICC Bar - Automatically adjusting with trailer motion.

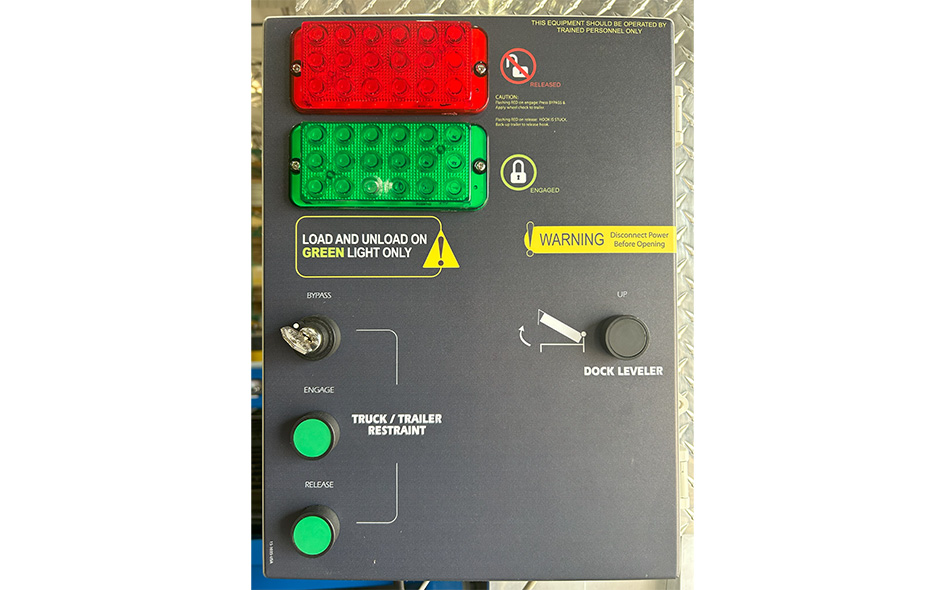

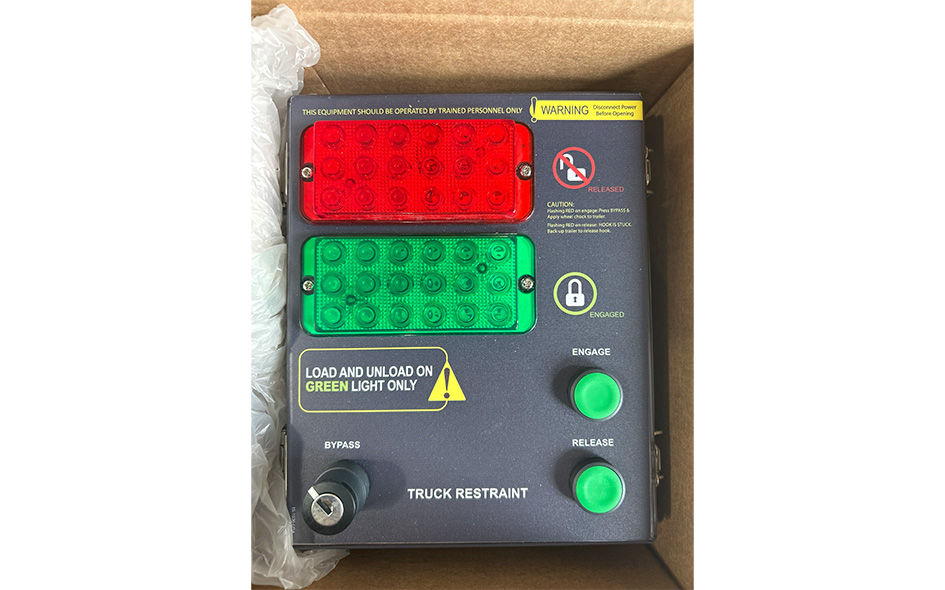

- Inside & Outside Red & Green L.E.D. Communication Lights - Providing safe, clear status of restraint position to truck drivers & loading dock personnel.
- Easy Installation - Unit mounts to dock wall above ground level.
- Low Profile - 9” carriage, works with all standard trailers and an impact extension bar with a service range of 9” to 25”.
- Dock Leveler & O/H Door Interlock Capability
- Zinc Plating - Providing all-weather durability.
- IP-44 Rated DC Gear Motor - Protects motor from dirt & water spray.
- Low Power Consumption - Saving on energy costs
- Easy Push Button Operation
- Standard 120 Volt (1 Phase) - Available in all Voltages: 220 Volt (1 phase), 230 Volt, 460 & 575 Volt (3 phase)
