Aluminum Glass Door - 522 Model 522

Aluminum Glass Door - 522 Model 522

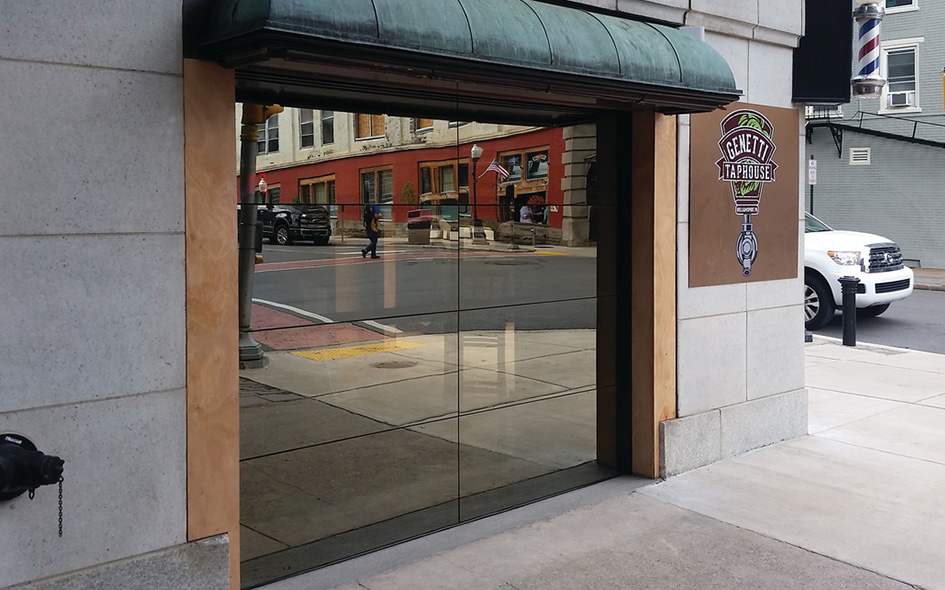

Aluminum Glass Door model 522 is designed in sizes up to 18’ 2” (5486 mm) wide and 14’ 1” (4318 mm) high. This aluminum full-view door, featuring a frameless design, is ideal for restaurants, auto dealerships and any application where the door needs to integrate seamlessly with the aesthetics of the building. Available with five glass options.


Product Specifications
Standard Max Width18'2" (5486 mm)
Standard Max Height14'1" (4318 mm)
Section thickness1 3/8"
Material6063-T6 aluminum
Standard finishWhite, Black or Bronze Powder Coat
Center stile width3"
End stile width3 1/2"
Top rail width3 1/2"
Top intermediate rail width1 5/8"
Bottom intermediate rail width1 3/8"
Bottom rail width3 1/2"
WeathersealsBottom, flexible PVC
Standard springs10,000 cycle
TrackProvide track as recommended by manufacturer to suit suit loading required and clearance available
OperationManual pull rope
Hinges and fixturesGalvanized steel
LockGalvanized, interior-mounted single unit


  • 1-year limited

Powder Coat Finishes

  • white powder coat swatch


  • black powder coat swatch


  • brown powder coat color swatch


Anodized Finishes

  • black anodized finish color swatch


  • anodized bronze color swatch


Online color swatches are only digital reproductions of actual standards and will vary in appearance due to differences in monitor and video card output. These digital representations should not be used to finalize color selection(s). Please contact your local Overhead Door™ Distributor for actual color samples to match with your home or business.

Actual door colors may vary slightly from the website images due to fluctuations in paint or anodizing process.

Glass Options

  • opaque white glass swatch

    Opaque White

  • opaque black glass swatch

    Opaque Black

  • mirrored gray glass swatch

    Mirrored Gray

  • mirrored bronze glass swatch

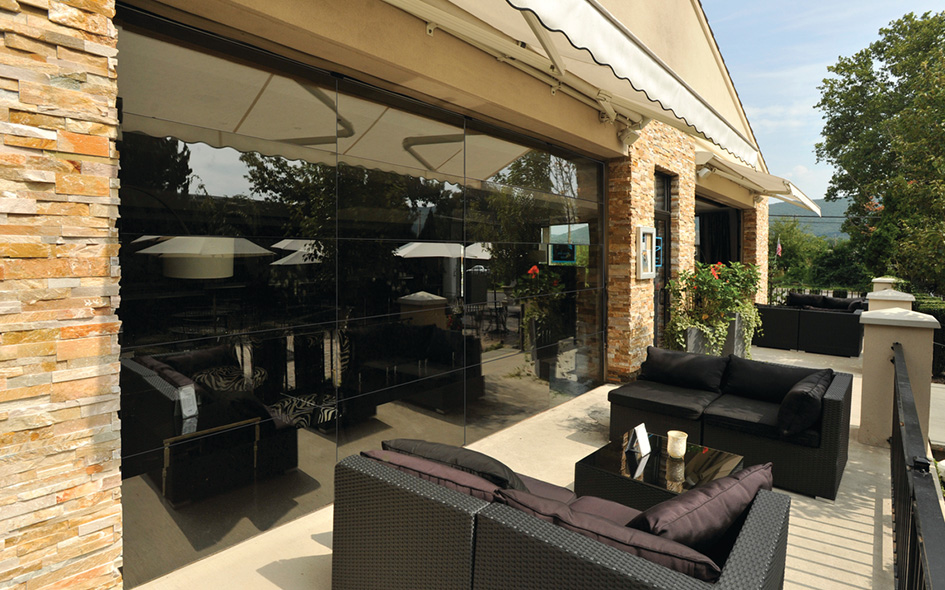

    Mirrored Bronze

  • translucent black glass swatch

    Translucent Black

Aluminum and Glass Pairing

Aluminum OptionGlass Option
White Powder CoatOpaque White
Black Powder Coat / Bronze Powder Coat / Black Anodized / Bronze AnodizedOpaque Black / Mirrored Gray / Mirrored Bronze / Translucent Black

​​Each door is unique and built to order, therefore a slight deviation in glass alignment is possible. These doors may become hot to the touch in sustained hot weather.

  • Springs: 25,000, 50,000, 75,000 or 100,000 cycles
  • Weather stripping jamb and header seals
  • White or Black powder coat track
