Rolling Counter Doors - 652 Model 652

Rolling Counter Doors - 652 Model 652

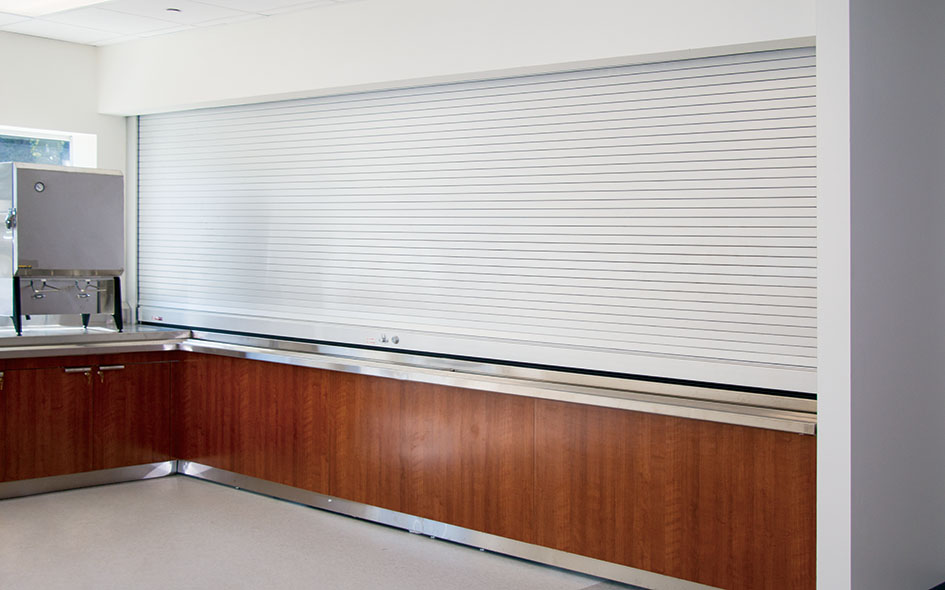

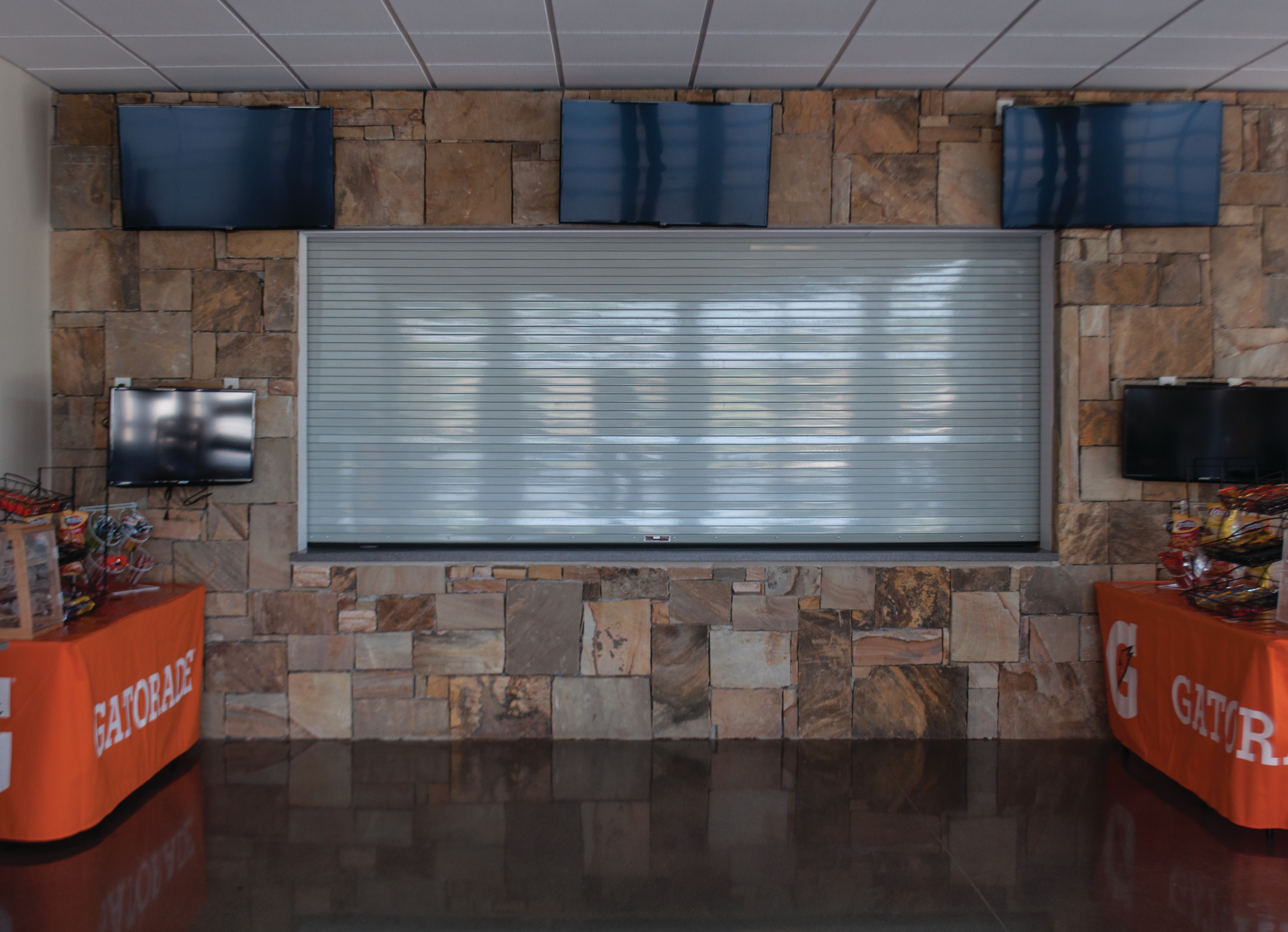

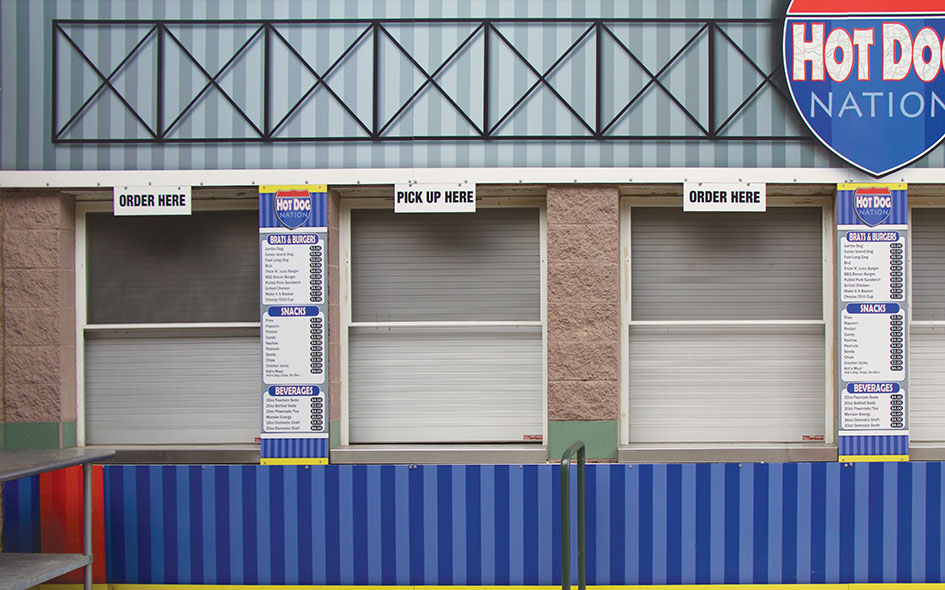

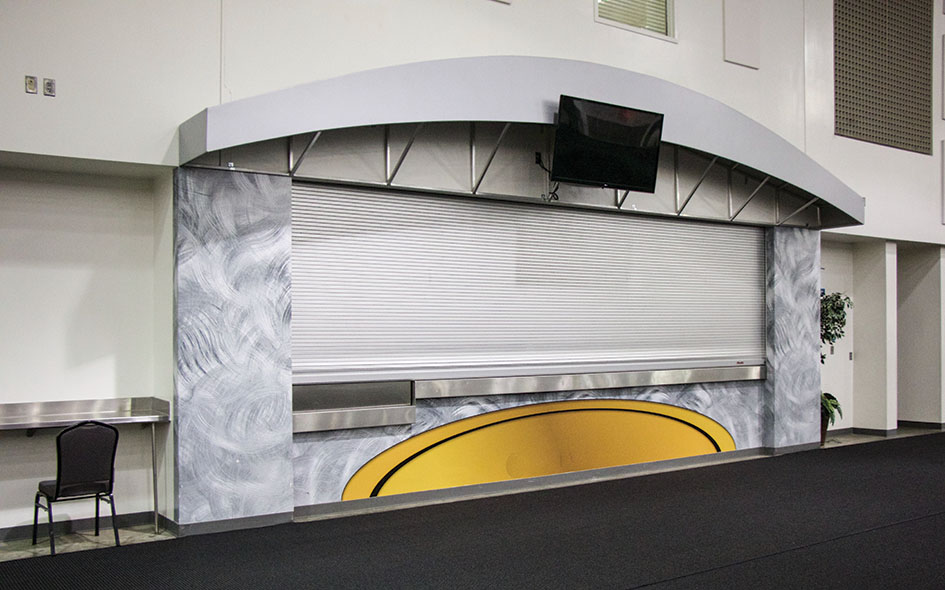

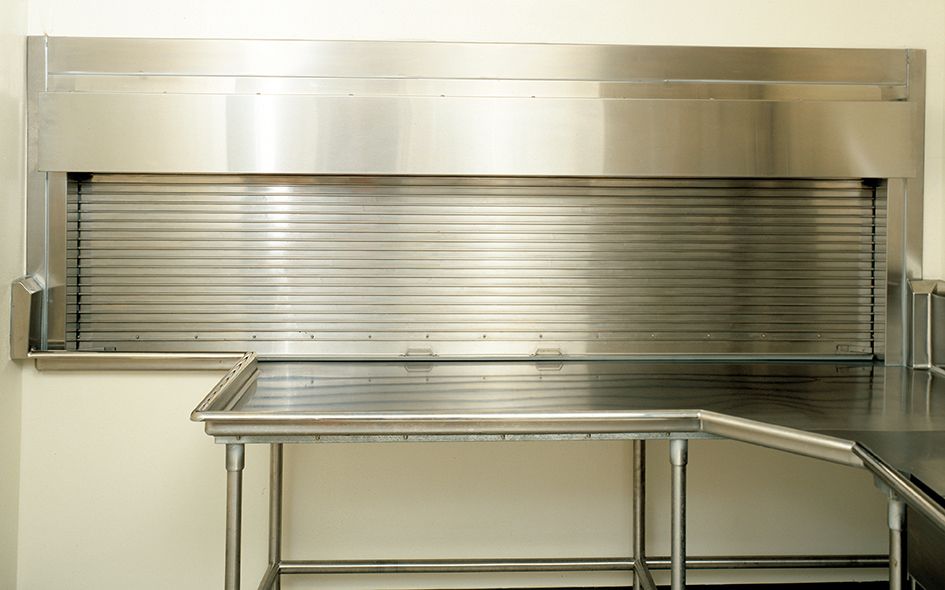

​​​​​​​​​​​​​​​​​​Distinguished by their clear anodized aluminum curtain finish, Model 652 rolling counter doors are designed to fit openings to 20' wide and 9' high. These doors are ideal for a host of small-opening applications where security is important and non-rated door is appropriate. Common applications include concession areas, cafeterias, pharmacies, parts-storage areas and ticket windows.​​​

Standard Max Width20' (6096 mm)
Standard Max Height9'0" (2743 mm)
CurtainInterlocking flat profile slats (F-158) with endlocks; Aluminum
HoodAluminum
FinishClear anodized aluminum
BracketsSteel plate to support curtain, counterbalance and hood
GuidesExtruded aluminum
CounterbalanceHelical torsion springs housed in a steel tube or pipe barrel
MountingFace of wall, between jambs
OperationManual push up
LockInterior slide bolt
Warranty24 - month limited
  • Crank or electric operation
  • PowderGuard® Premium powder coat finish options are available in approximately 200 colors as well as custom matching to specification.
  • PowderGuard® Zinc and PowderGuard® Weathered finishes
  • Vision lites
  • Perforated slats
  • Fenestrated slats with uniformly spaced openings of 5/8" x 3" (16 mm x 76 mm)
  • Guides: 11-gauge roll-formed steel guides
  • Cylinder lock ​​


Aluminum, clear anodized

Powder Coat Color Options

PowderGuard® Premium powder coat options are available in approximately 200 colors as well as custom matching to specification.

Powder Guard Coat Colors
