Flexible Bottom High Speed Door – 990 Model 990
Flexible Bottom High Speed Door – 990 Model 990

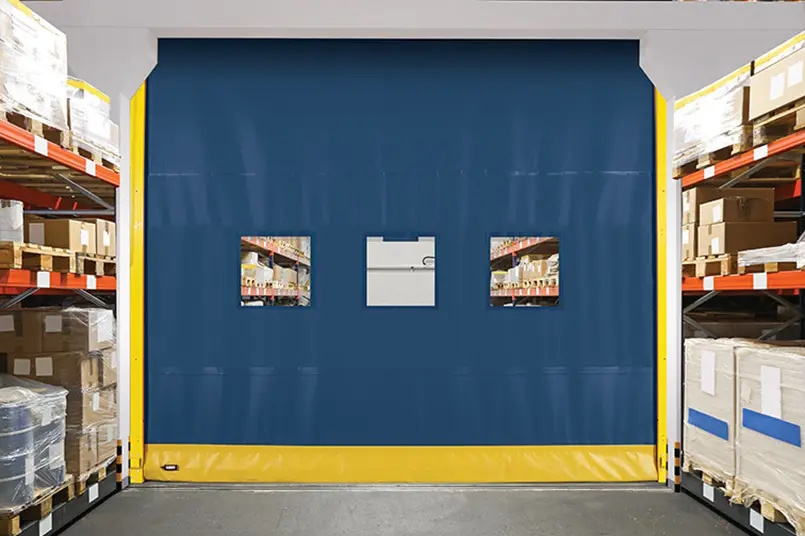

Our flexible bottom high speed interior fabric door, RapidFlex® 990, is ideal for high-traffic manufacturing, pharmaceutical, warehouse and distribution facilities. Built for safety this door features a flexible bottom with wireless monitored reversing edge, built-in drop stop device and in-plane infrared sensors.
Construction
| Product Specifications | |
|---|---|
| Standard Max Width | 12' |
| Standard Max Height | 12' |
| Speed | Up to 70" per second |
| Curtain Lock | Patent-pending curtain-lock design allows for quick and easy repair in the field |
| Break-Away Self-Reset | Designed to break away from the side guides to minimize damage and simply reset and self-repair after the event |
| Wind Load* | Up to 3.0 psf |
| Door Panel | 2 thin layers of PVC coated polyester; 1 layer of polyester weave |
| Operation | Direct drive motor and gearbox system with a door stop device |
| Control Panel |
|
| Obstruction Detection | Infrared sensors mounted in-plane to the door curtain at 6" and 50"-54" from floor |
| Reversing Safety Edge | Wireless reversing edge; Flexible bottom bar with detachable bottom seal |
| Electrical Availability** | 120V AC 1PH; 208V AC 1PH†; 220V AC 1PH; 208V AC 3PH†; 230V AC 3PH; 460V AC 3PH; 575V AC 3PH† |
* Pressure/wind resistance value is the ultimate pressure tested at door width of 12'.
**Single phase available up to 10’ doors.
†Requires stand-alone mounted transformer
Warranty
- 5-year limited on drive motor and gearbox; 1-year limited on all other available components
Colors
-
Red
-
Blue (Textured)
-
Gray
-
White
Bottom Bar & Guide
-
Safety Yellow
RAL Powder Coat
Actual door color may vary from the digital representation shown here. Color samples are available by request through your Overhead Door™ Distributor. The standard color for guides, brackets, and bottom bar is yellow. 197 optional RAL powder coat color options are available.
Actuation options
Push button, key switch, pull switch, motion detector, radio control, loop detector, treadle switch ; Wireless options: pull switches, 1 or 3 button push button, palm button
Signal device options
Red/green LED warning light, horn/strobe combination, rotating warning light
Programmable LED lighting system
Tall light bar with red, yellow, green lighting
20" high vision panels
Spaced evenly across width of door
