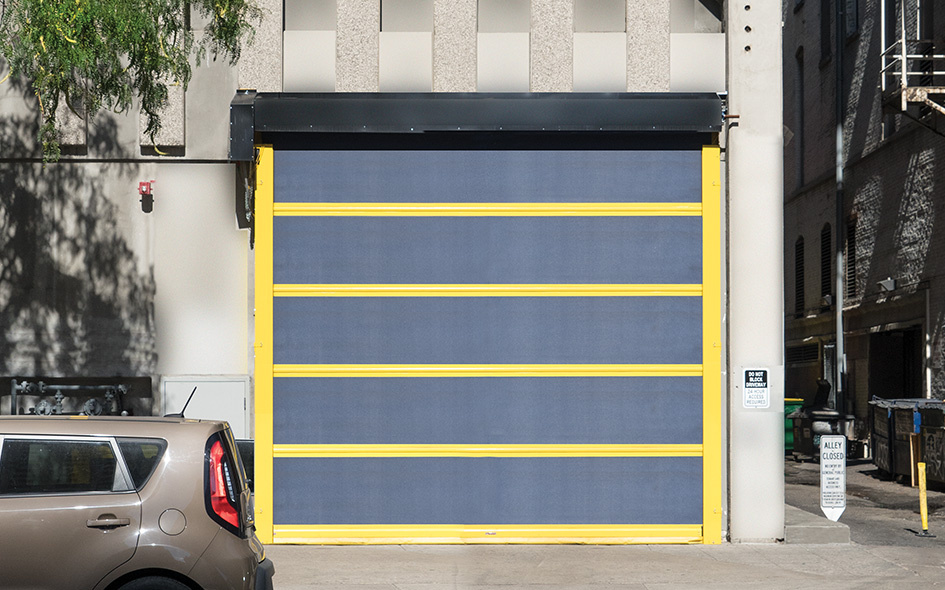

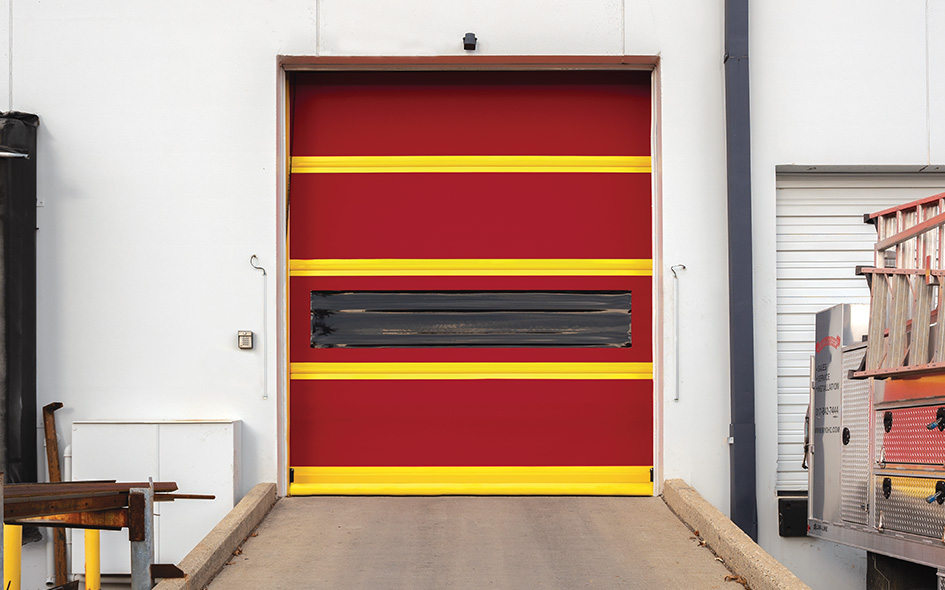

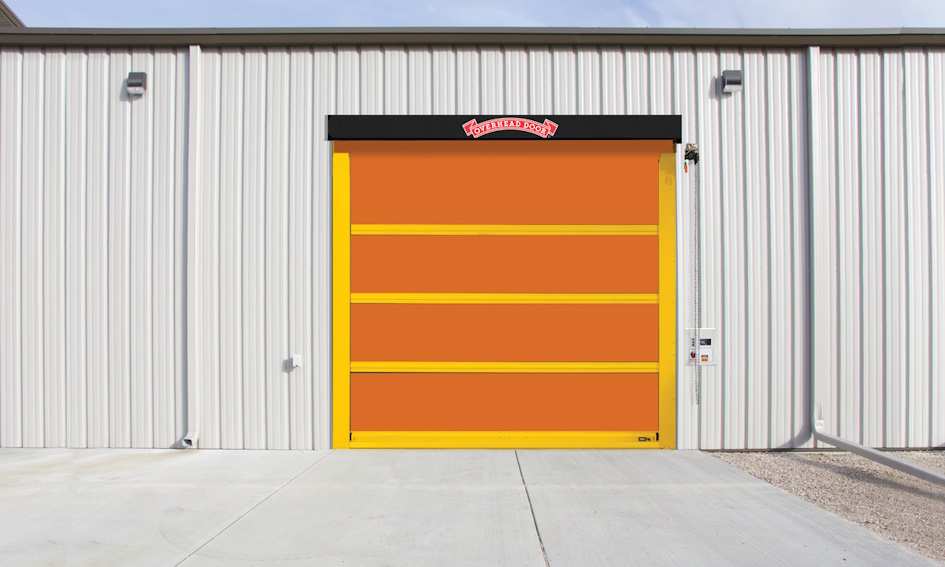

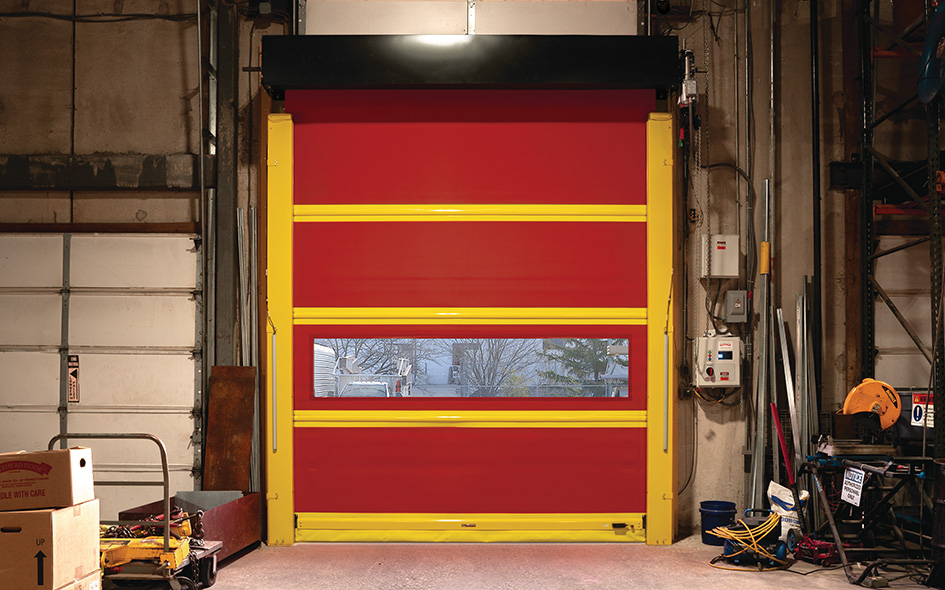

RapidFlex® Model 993 is a strutted, exterior heavy-duty high speed fabric door with independently tested wind load of up to 19.5 psf*. Its industry-leading standard safety features include reversing edge, two sets of infrared obstruction detection sensors and door stop device.

Perfect for parking garages, manufacturing, warehouse and distribution facilities.

Ideal Applications Include

Construction

Product Specifications
Standard Max Width 20'
Standard Max Height 20'
Speed Up to 65" per second
Break-away Self-reset Designed to break away from the side guides to minimize damage and simply reset and self-repair after the event
Wind Strut Metal struts with roller windlocks
Curtain Material 3 layers of PVC coated polyester with 2 layers of polyester weave
Header Braces Multiple braces across entire width strengthen and combat sagging
Hood Protection from debris and moisture
Operation Direct drive motor and gearbox system with a door stop device
Control Panel
  • Variable frequency drive
  • NEMA 4X cULus listed
  • Onboard self diagnostic and service reminder
  • Built-in padlockable field disconnect
Obstruction Safety Detection Infrared sensors mounted in-plane to the door curtain at 18" and 50" - 54" from floor
Reversing Safety Edge Wireless reversing edge
Available Supply Voltages** 120V AC 1 PH, 208V AC 1PH†, 220V AC 1PH, 208V AC 3PH†, 230V AC 3PH, 460V AC 3PH, 575V AC 3PH†
(†requires stand-alone mounted transformer)
Wind Load* Up to 19.5 psf

** Single phase available up to 10'x10' doors.
* Pressure/wind resistance value is the ultimate pressure tested at door width of 16'.

Warranty

  • 5-year Limited

Colors

  • HPD Exterior Red Color Swatch

    Red

  • HPD Exterior Blue Color Swatch

    Blue

  • HPD Exterior Orange Color Swatch

    Orange

  • HPD Exterior Gray Color Swatch

    Gray

Bottom Bar & Guide

  • Safety Yellow Color Option - Model 990

    Safety Yellow

RAL Powder Coat

Actual door color may vary from the digital representation shown here. Color samples are available by request through your Overhead Door™ Distributor. The standard color for guides, brackets, and bottom bar is yellow. 197 optional RAL powder coat color options are available.

RAL Color Swatch

Actuation options

Push button, key switch, pull switch, loop detector, motion detector, treadle switch, radio control. Wireless options available

Signaling device options

Red/green LED warning light, horn/strobe combination, rotating warning light

Programmable LED lighting system

3' tall light bar with red, yellow, green lighting

Sloped hood and non-drive end cover

Protection from debris and moisture

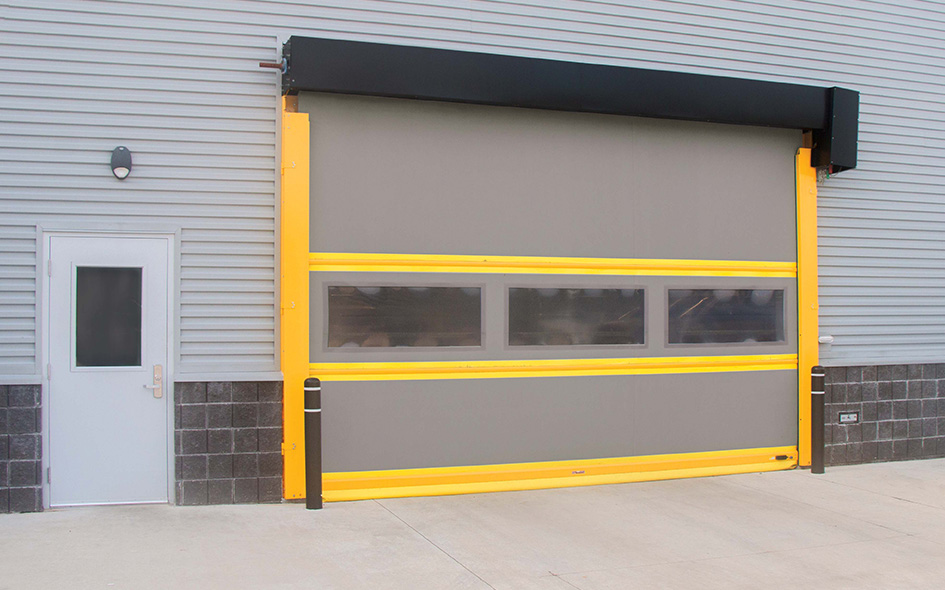

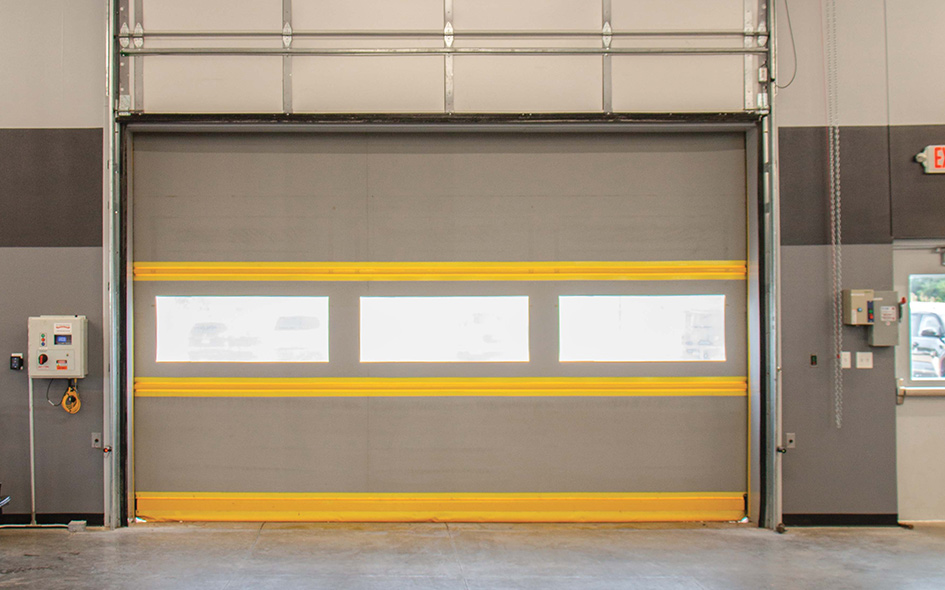

20" high vision panels

spaced evenly across width of door

Light Curtain

Front or rear mounted; available in 3' or 6' models
