High Speed Exterior Rubber Door - 995 Model 995

High Speed Exterior Rubber Door - 995 Model 995

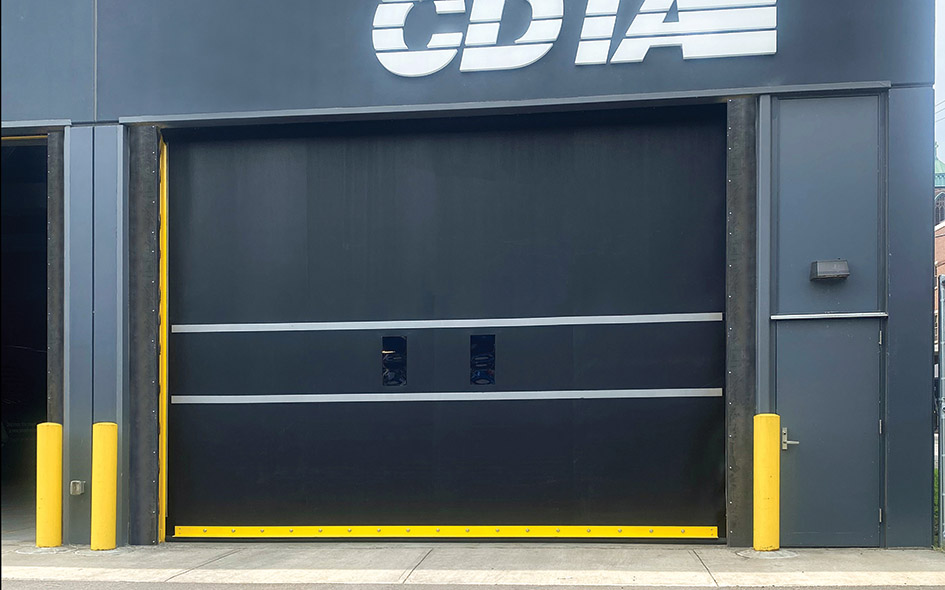

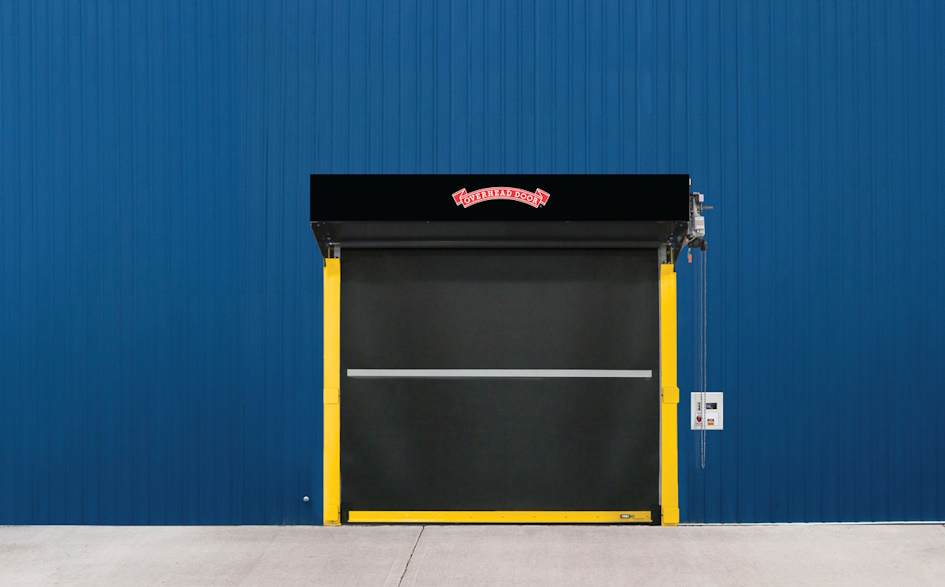

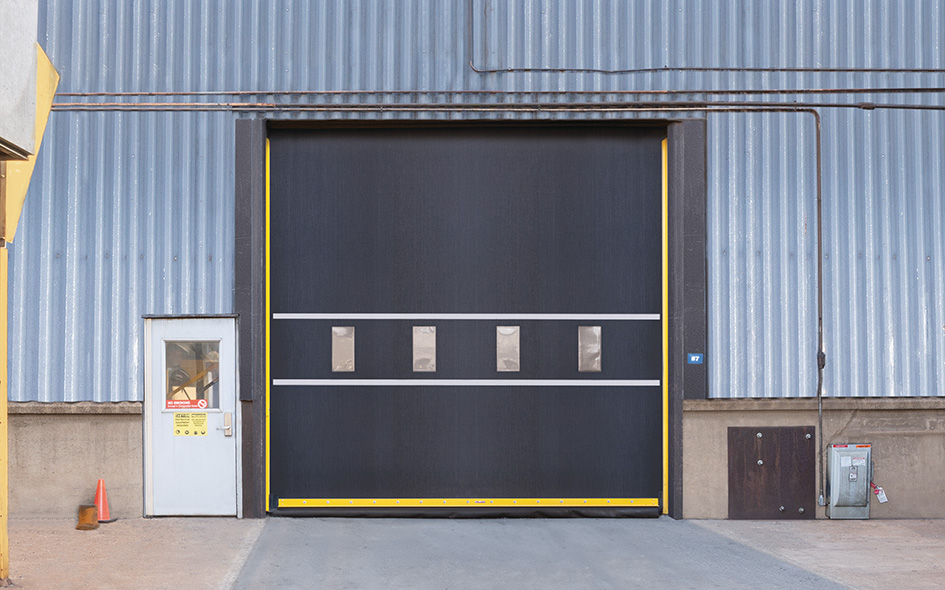

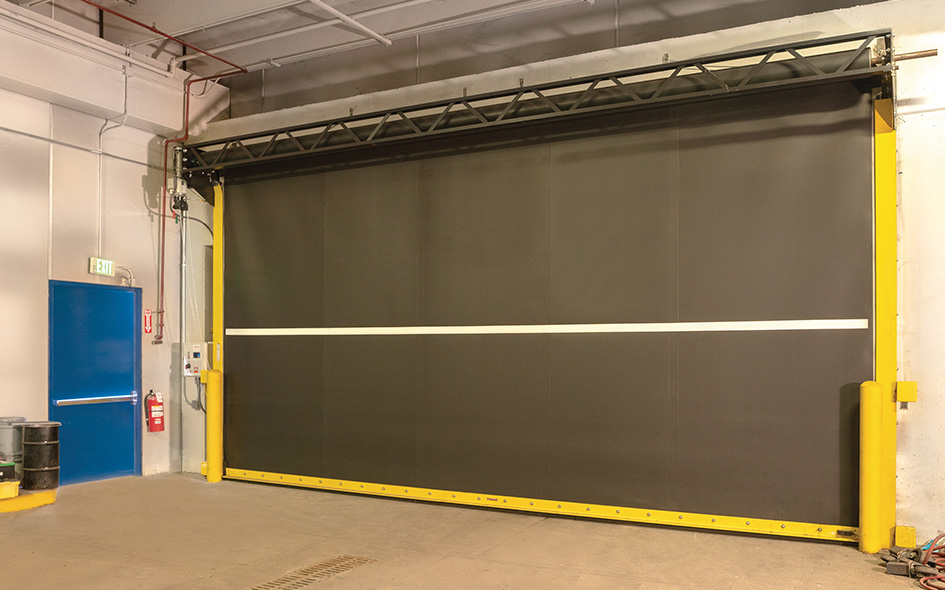

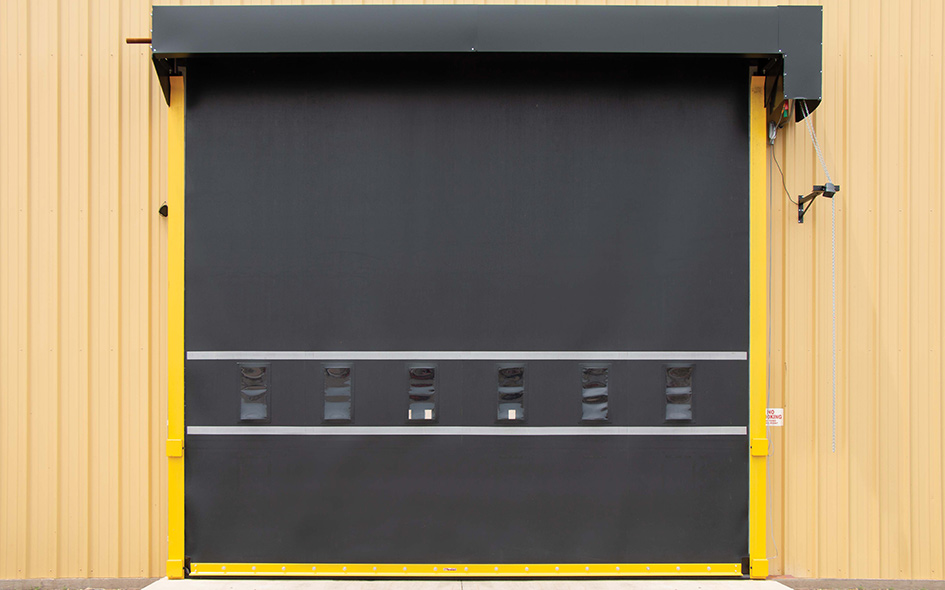

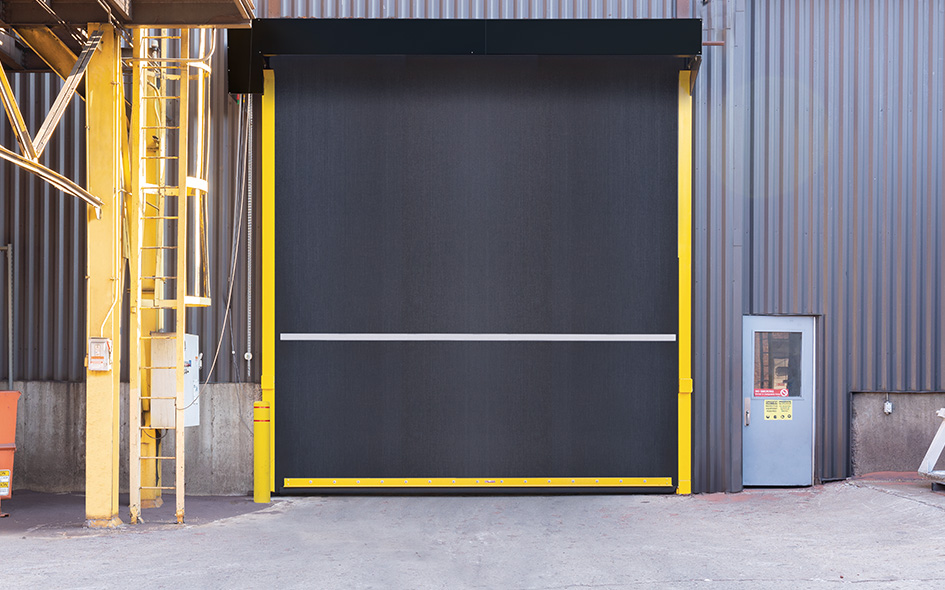

RapidFlex® Model 995 is a heavy-duty exterior high speed rubber door that features a multi-reinforced NBR rubber curtain and high strength guide construction to withstand harsh exterior conditions. It features an independently tested wind load of up to 27.0 psf*. The RapidFlex® Model 995 includes industry-leading standard safety features such as reversing edge, two sets of infrared obstruction detection sensors and door stop device. Perfect for parking garages, food/beverage, mining, auto/transit and manufacturing facilities.

Ideal Applications Include

Construction

Product Specifications
Standard Max Width 30'
Standard Max Height 30'
Speed Up to 50" per second
Break-away Self-reset Designed to break away from the side guides to minimize damage and simply reset and self-repair after the event
Wind Strut Not available
Curtain Material 5 layers of NBR rubber; 4 layers of polyester weave

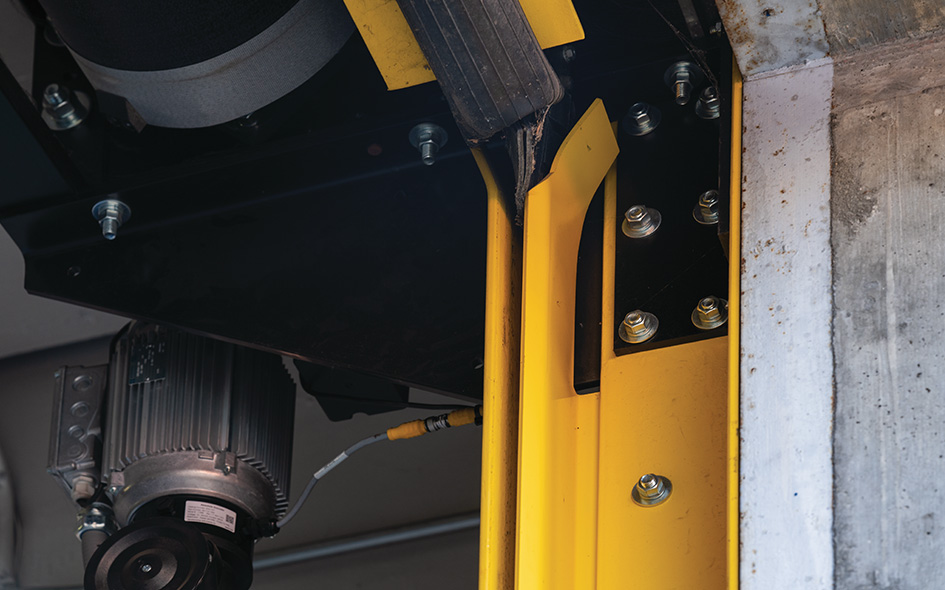

Operation Direct drive motor and gearbox system with a door stop device
Control Panel
  • Variable frequency drive
  • NEMA 4X cULus listed
  • Onboard self diagnostic and service reminder
  • Built-in padlockable field disconnect
Obstruction Detection 2 sets of infrared sensor mounted proximity to the door path
Reversing Safety Edge Wireless monitored reversing edge
Electrical Availability 208V AC 3PH, 230V AC 3PH; 460V AC 3PH; 575V AC 3PH†
(requires stand-alone mounted transformer)
Wind Load* Up to 27.0 psf

* Pressure/wind resistance value is the ultimate pressure tested at door width of 19'.

Warranty

  • 5-year Limited

Colors

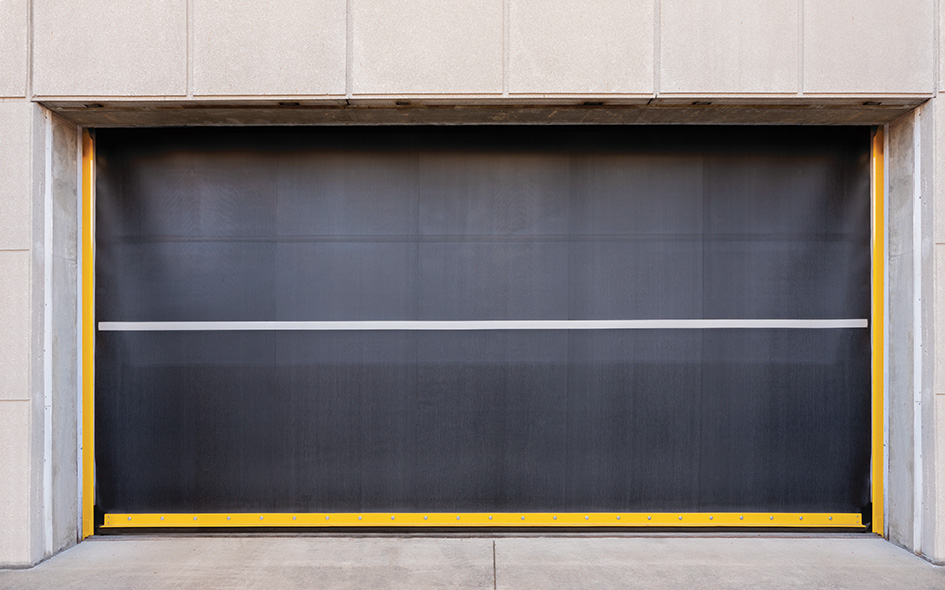

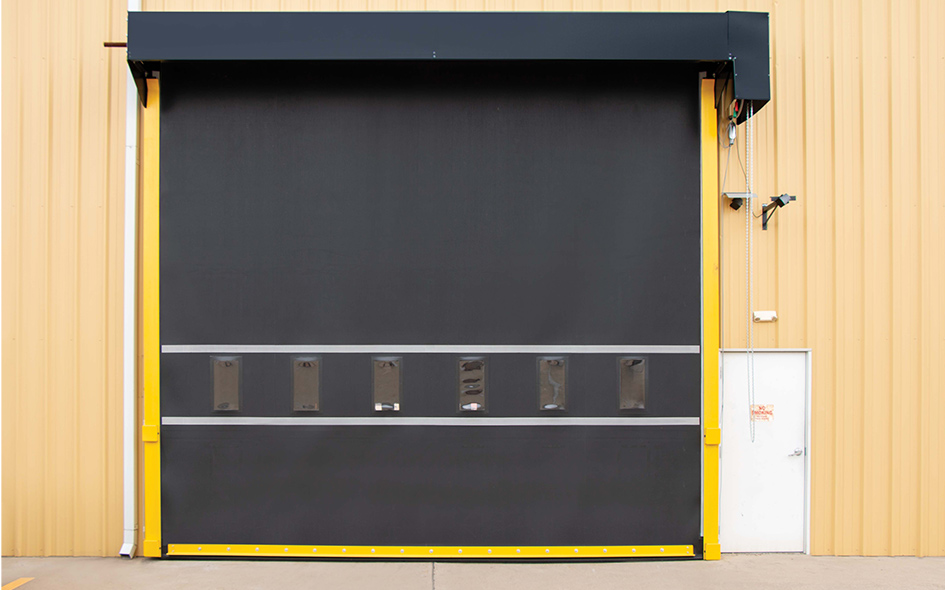

  • Black Rubber High Speed Color Swatch

    Black

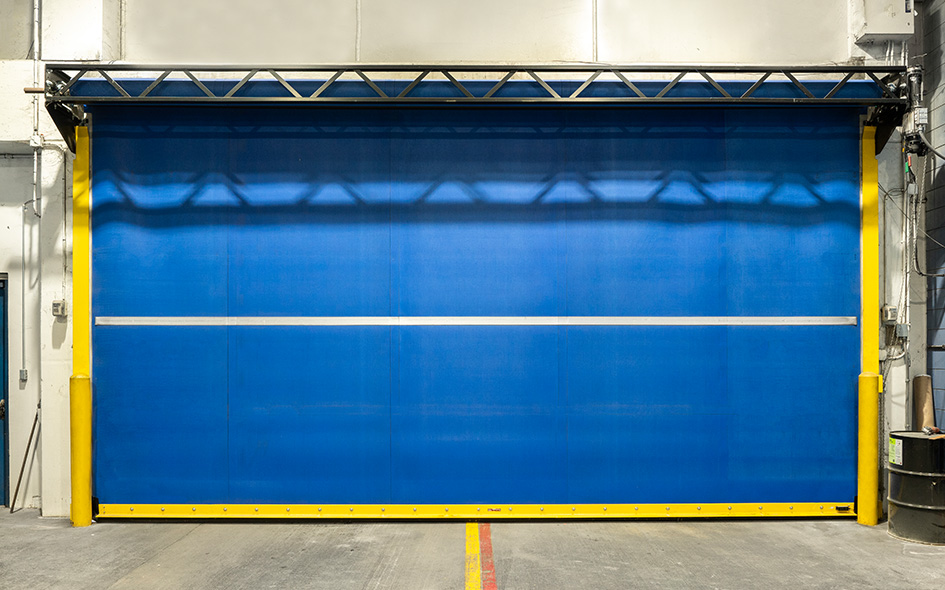

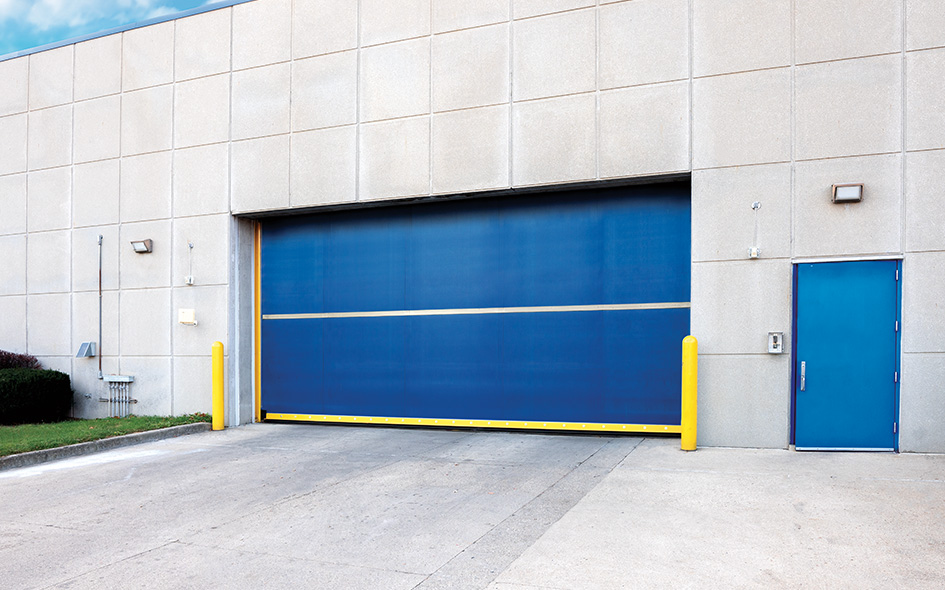

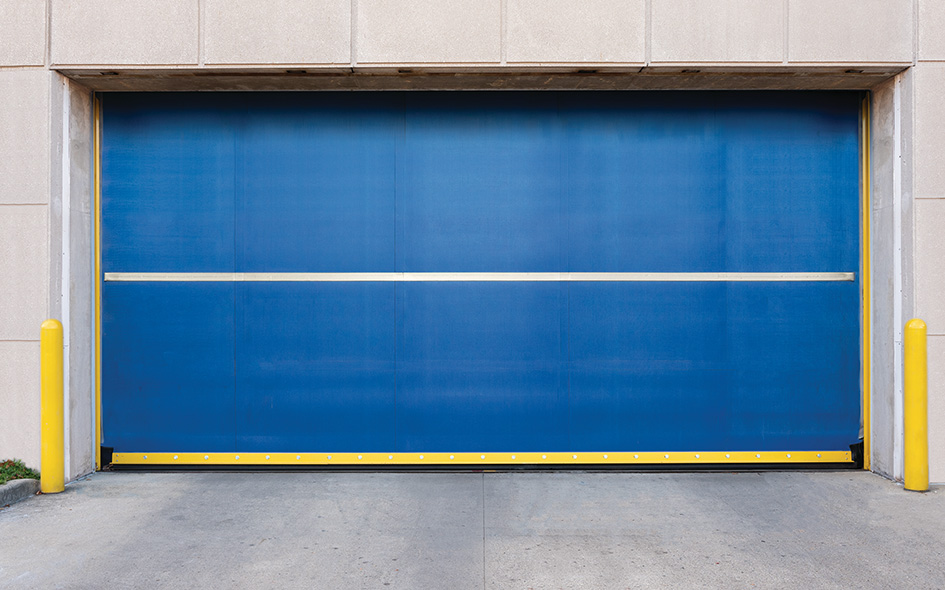

  • Blue Rubber High Speed Color Swatch

    Blue

RAL Powder Coat

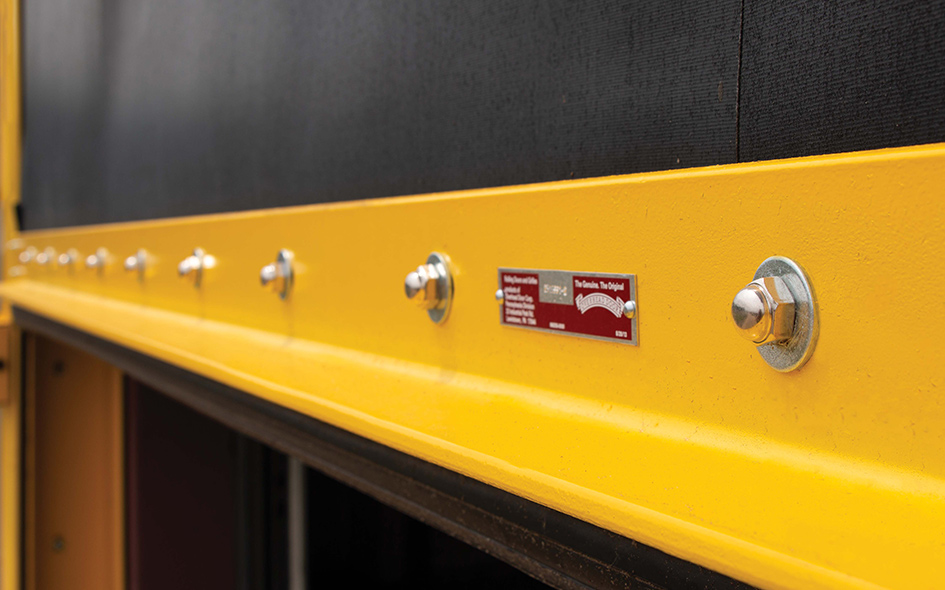

Actual door color may vary from the digital representation shown here. Color samples are available by request through your Overhead Door™ Distributor. The standard color for guides, brackets, and bottom bar is yellow. 197 optional RAL powder coat color options are available.

RAL Color Swatch
