High Speed Heavy Duty Exterior Fabric Door - 994 Model 994
High Speed Heavy Duty Exterior Fabric Door - 994 Model 994

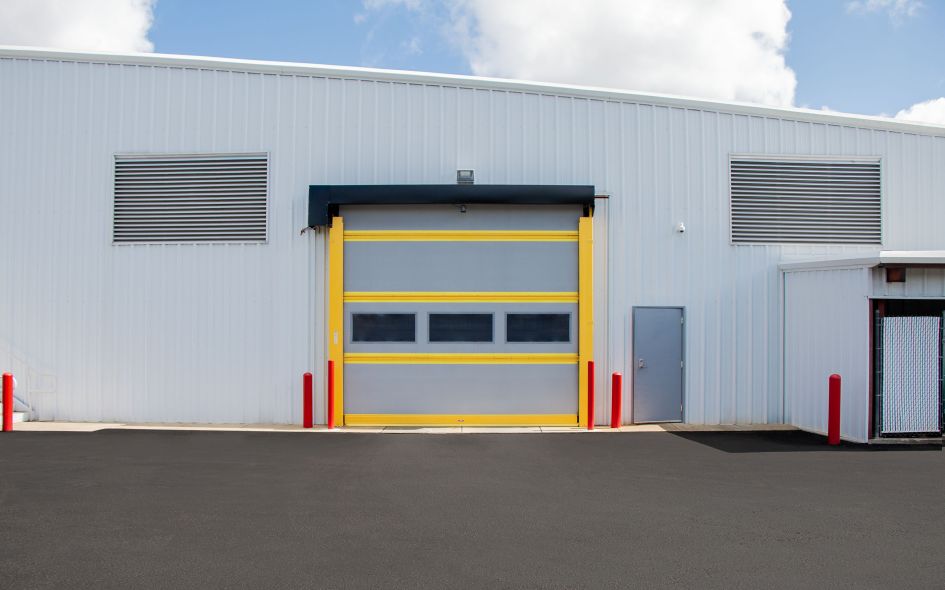

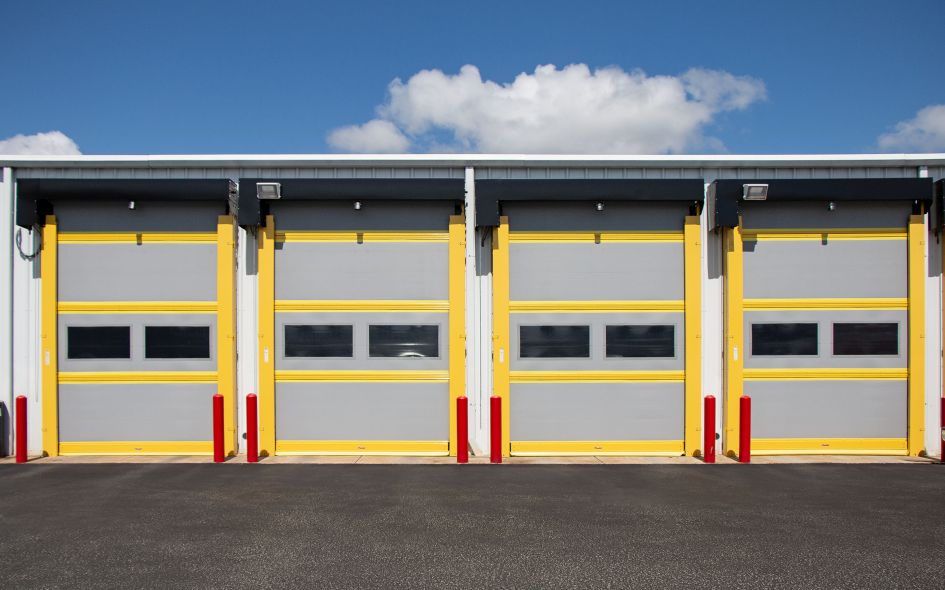

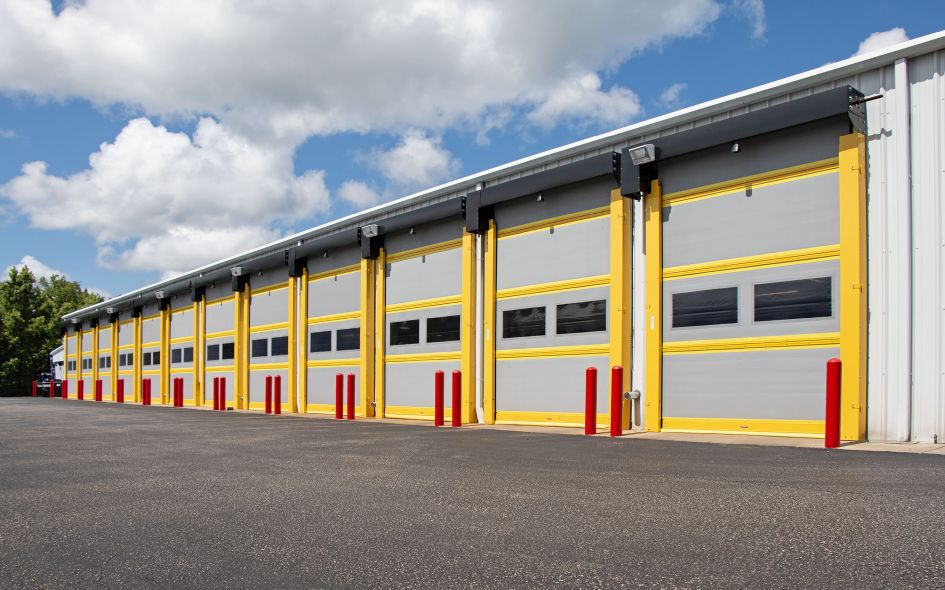

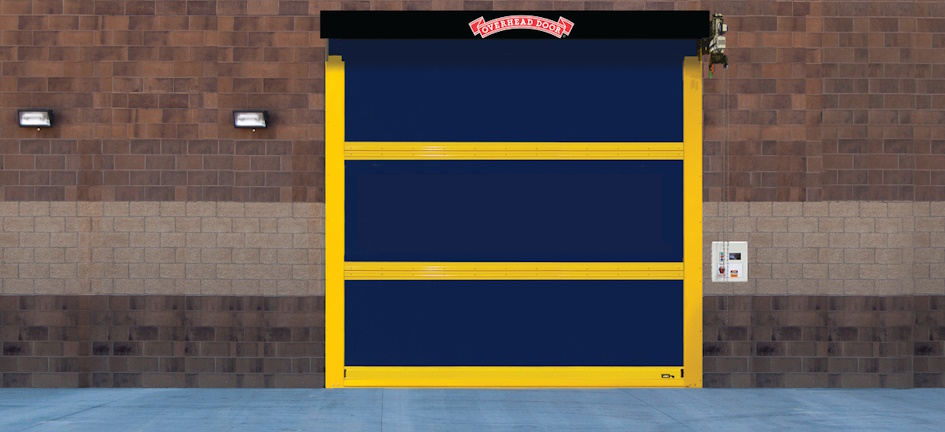

RapidFlex® Model 994 is a strutted, heavy-duty exterior high speed fabric door that is perfect for large openings and is best suited for manufacturing, mining, auto/transit, and parking garage applications. It features an independently tested wind load of up to 22.0 psf. The RapidFlex® Model 994 includes industry-leading standard safety features such as reversing edge, two sets of infrared obstruction detection sensors and door stop device.
Our RapidFlex® Model 994 high speed heavy-duty exterior door is a perfect door solution for parking garages, mining, auto/transit and manufacturing facilities.
Ideal Applications Include
Construction
| Product Specifications | |
|---|---|
| Standard Max Width | 24' |
| Standard Max Height | 20' |
| Speed | Up to 55" per second |
| Break-away Self-reset | Designed to break away from the side guides to minimize damage and simply reset and self-repair after the event |
| Wind Strut | 4” articulating roller wind strut |
| Curtain Material | 3 layers of PVC coated polyester; 2 layers of polyester weave. |
| Vision Option | 20” high windows spaced evenly across width of door |
| Operation | Direct drive motor and gearbox system with a door stop device |
| Control Panel | Variable frequency drive NEMA 4X cULus listed Onboard self diagnostic and service reminder Built-in padlockable field disconnect |
| Obstruction Detection | 2 sets of infrared sensor mounted proximity to the door path |
| Reversing Safety Edge | Wireless monitored reversing edge |
| Electrical Availability | 208V AC 3PH†, 230V AC 3PH; 460V AC 3PH; 575V AC 3PH† (†requires stand-alone mounted transformer) |
| Wind Load* | Up to 22.0 psf |
* Pressure/wind resistance value is the ultimate pressure tested at door width of 20'.
Warranty
- 5-year Limited
color group red
-
Model 593 -v3 (Model 593 sub title v3 has no order value)
-
Model 593 (Model 593 sub title)
-
Model 593 -v2 (Model 593 sub title v2)
-
Model 593 -v4 (Model 593 sub title v4)
RAL Powder Coat
Actual door color may vary from the digital representation shown here. Color samples are available by request through your Overhead Door™ Distributor. The standard color for guides, brackets, and bottom bar is yellow. 197 optional RAL powder coat color options are available.
Actuation options
Push button, key switch, pull switch, loop detector, motion detector, treadle switch, radio control. Wireless options available
Signaling device options
Red/green LED warning light, horn/ strobe combination, rotating warning light
Programmable LED lighting system
3' tall light bar with red, yellow, green lighting
20" high vision panels
spaced evenly across width of door
Light Curtain
Front or rear mounted; available in 3' or 6' models
