High Speed Insulated Fabric Doors - 997 Model 997

High Speed Insulated Fabric Doors - 997 Model 997

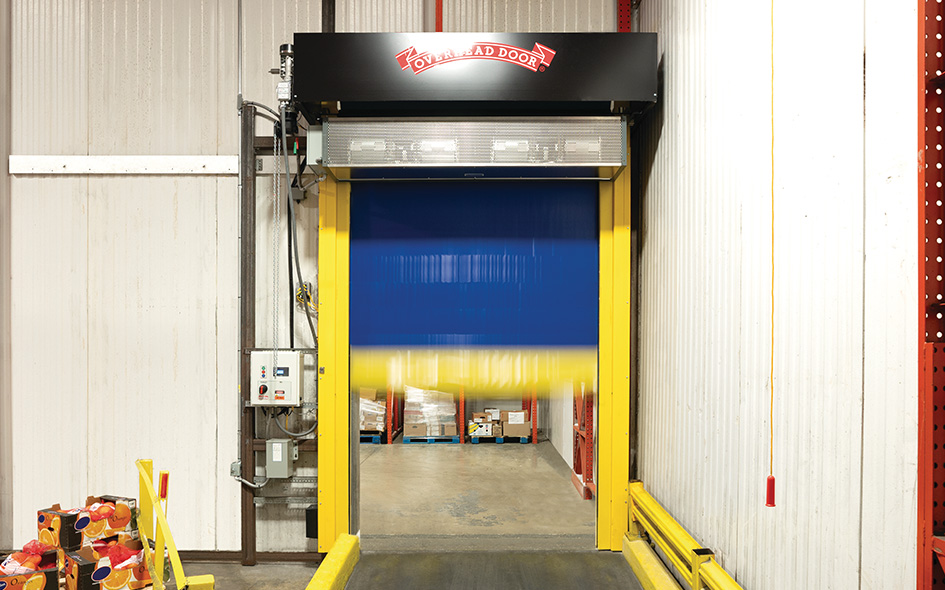

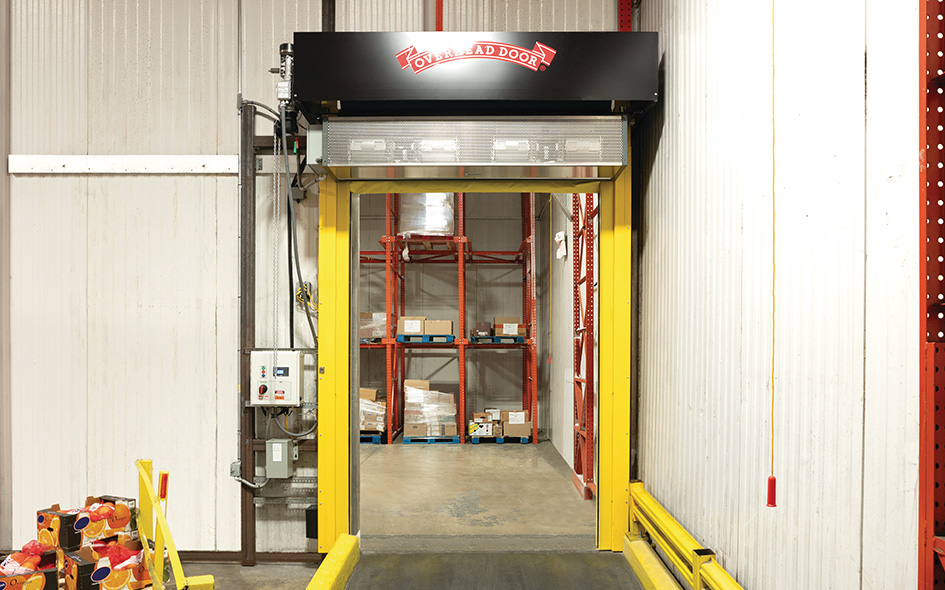

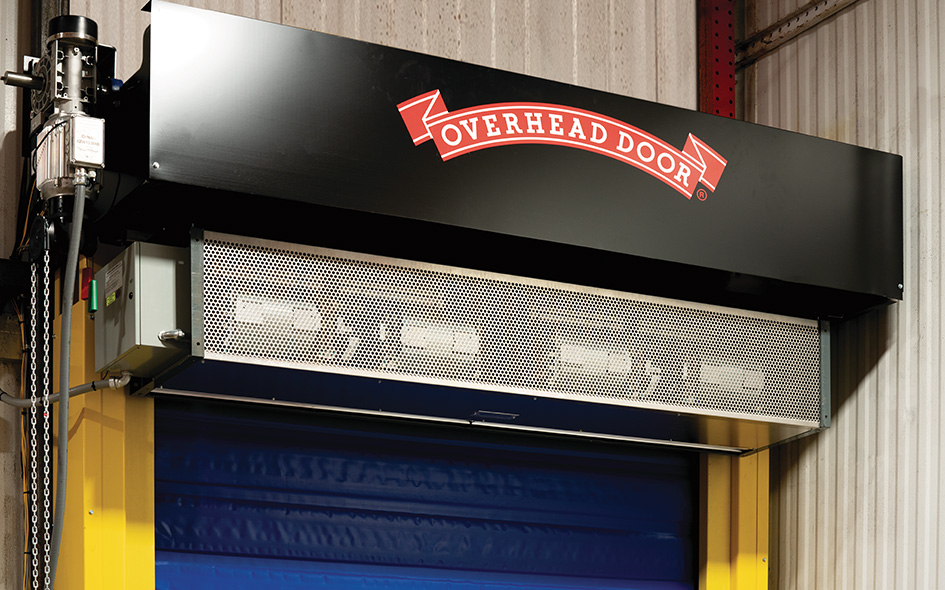

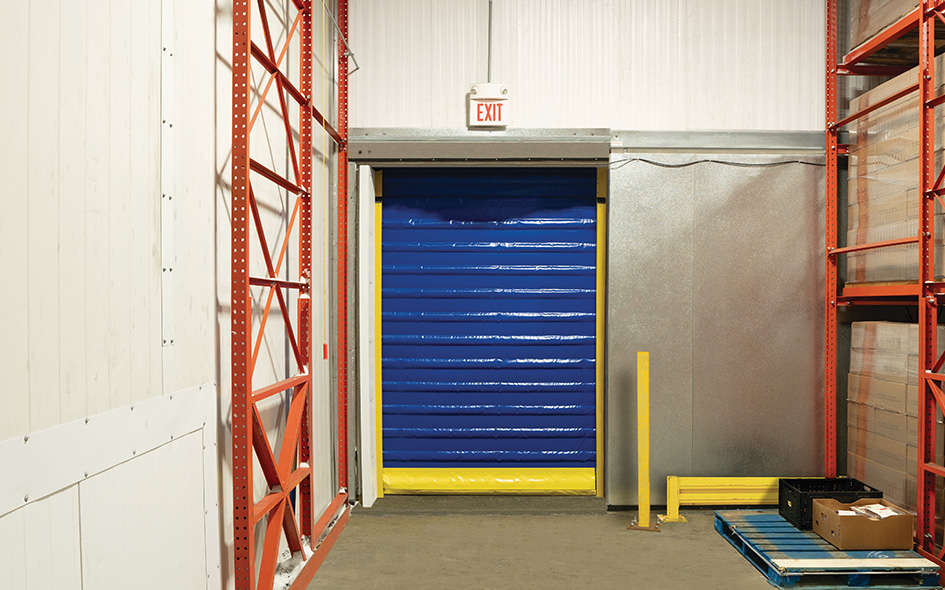

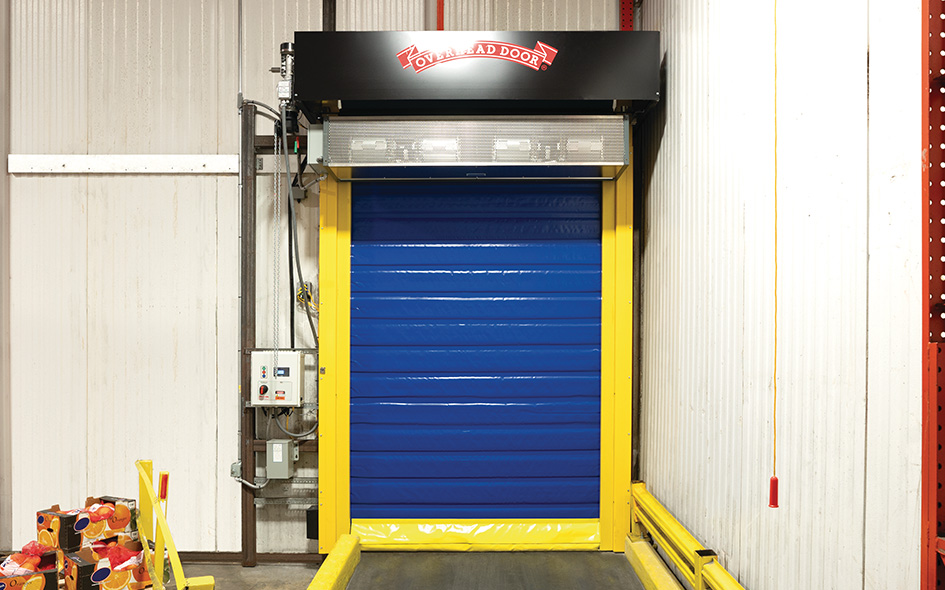

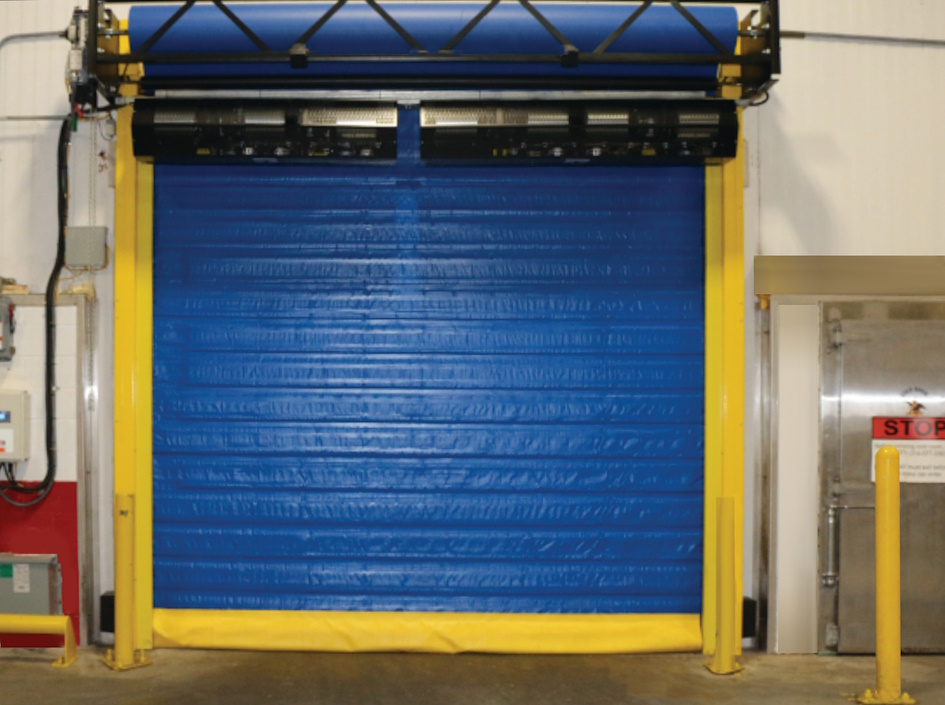

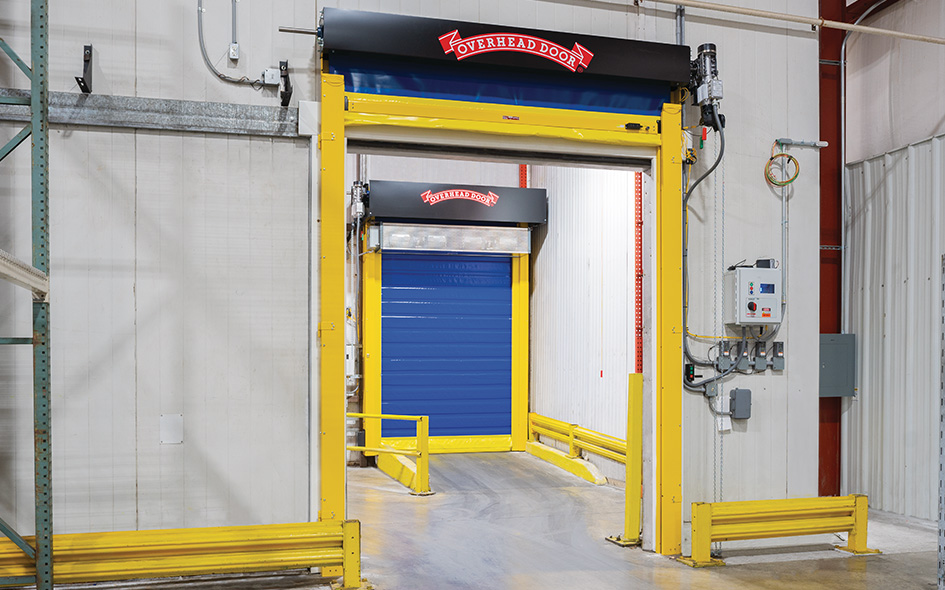

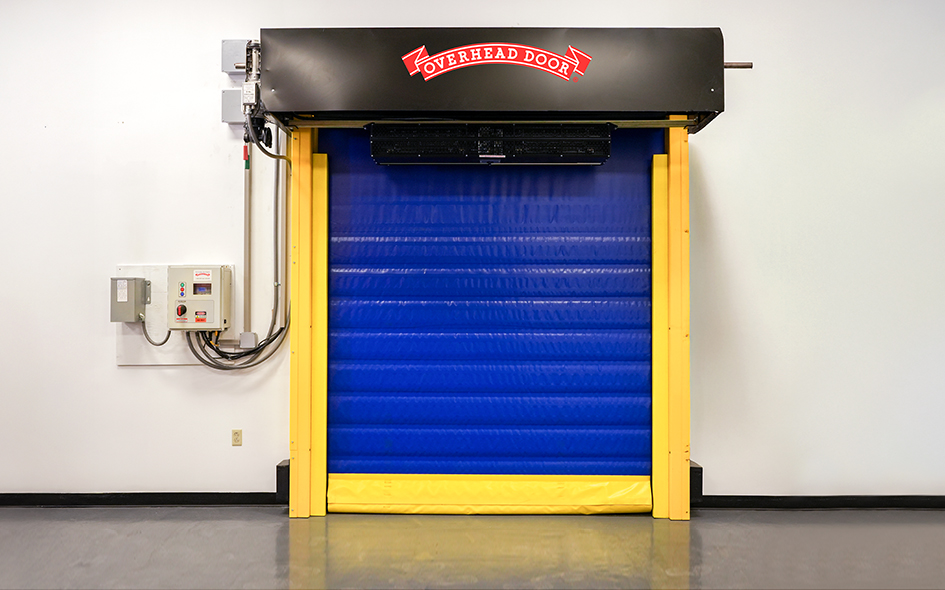

RapidFreeze® Model 997 is an interior fabric high speed freezer and cooler door that features an insulated curtain to prevent heat loss and condensation in settings where temperatures vary greatly on either side of the door opening. With a patented quad-sealed guide design and an optional heated air curtain, this application driven solution is flexible enough to meet the thermal performance needs of demanding temperature and humidity combinations. RapidFreeze® 997 continues the Overhead Door™ brand tradition of delivering superior performance, speed and longevity, while providing cutting edge engineering innovation. This freezer and cooler door has been designed especially for cold storage along with food and beverage facilities.

Construction

Product Specifications
Standard Max Width 12'
Standard Max Height 18'
Opening SpeedUp to 80" per second
Closing SpeedUp to 40" per second
Break-away Self-reset Yes
Curtain Panel2 layers of PVC coated polyester with 1 layer of polyester weave and conductive plus radiant insulation
Operation Direct drive motor and gearbox system with a door stop device
Control Panel
  • Variable frequency drive - NEMA 4X
  • cULus listed
  • Onboard self diagnostic and service reminder
  • Built-in padlockable field disconnect; Includes power for guide heater and blower
Guide Design Thermally broken, with active heat, quad brush seals and front/rear breakaway capabilites
Obstruction Safety Detection Infrared sensors mounted in-plane to the door curtain at 16" and 50" - 54" from floor
Reversing Safety EdgeWireless reversing edge
Electrical Availability 230V AC 3PH; 460V AC 3PH; 575V AC 3PH
(requires stand-alone mounted transformer)
Wind Load*  Up to 2.0 psf

* Pressure/wind resistance value is the ultimate pressure tested at door width of 10'.

Warranty

  • 5-year Limited

Colors

  • HPD Red Color Swatch

    Red

  • HPD Blue Color Swatch

    Blue

  • HPD Gray Color Swatch

    Gray

  • HPD White Color Swatch

    White

Bottom Bar & Guide

  • Safety Yellow Color Option - Model 990

    Safety Yellow

RAL Powder Coat

Actual door color may vary from the digital representation shown here. Color samples are available by request through your Overhead Door™ Distributor. The standard color for guides, brackets, and bottom bar is yellow. 197 optional RAL powder coat color options are available.

RAL Color Swatch

Actuation options

Push button, key switch, pull switch, loop detector, motion detector, treadle switch, radio control.    Wireless options available

Signaling device options

Red/green LED warning light, horn/strobe combination, rotating warning light

Programmable LED lighting system

3' tall light bar with red, yellow, green lighting
