High Speed Interior Fabric Door - 991 Model 991
High Speed Interior Fabric Door - 991 Model 991

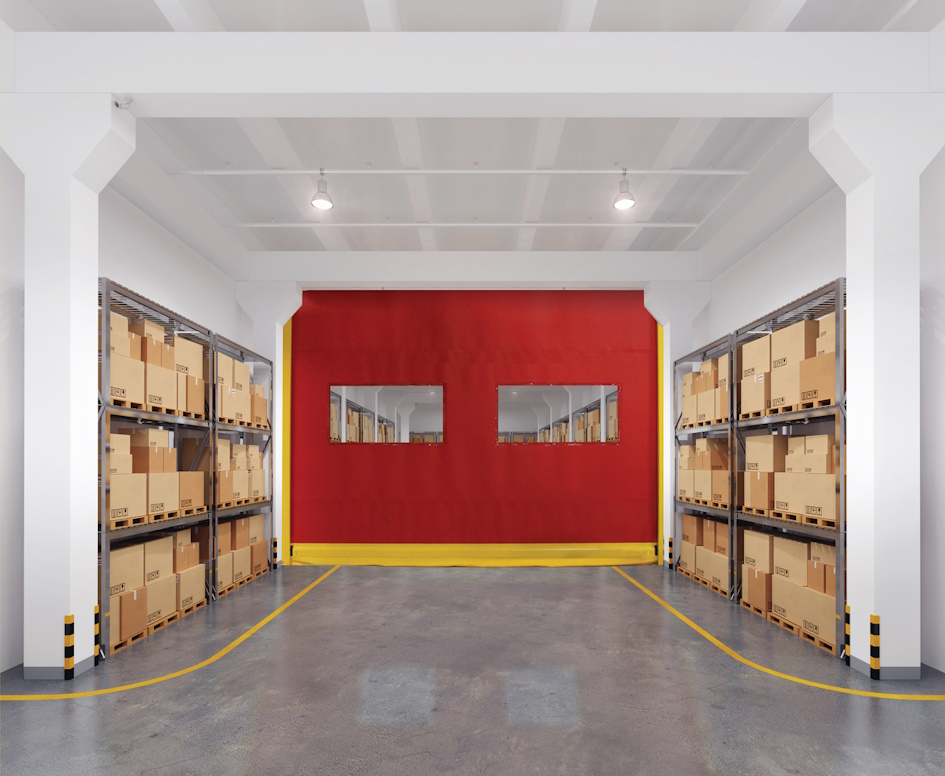

Our high speed interior fabric door, RapidFlex® Model 991, is ideal for separating controlled environment spaces such as food and beverage facilities, high traffic zones, storage rooms and manufacturing areas to prevent cross contamination. This door features dual recessed photo eyes and a patent-pending curtain lock which allows the door to withstand pressure and enables it to be repaired quickly in the field.
Perfect for manufacturing, distribution, food / beverage, cold storage and pharmaceutical facilities.
Construction
| Product Specifications | |
|---|---|
| Standard Max Width | 14' |
| Standard Max Height | 14' |
| Speed | Up to 70" per second |
| Certified Air Tightness | < 0.236 cfm/sq. ft.:- independently tested airtight design to prevent airborne contaminants from entering a controlled environment |
| Curtain Lock | Patent-pending curtain-lock design allows for quick and easy repair in the field |
| Break-away Self-reset | Designed to break away from the side guides to minimize damage and simply reset and self-repair after the event |
| Door Panel | 2 layers of PVC coated polyester; 1 layer of polyester weave |
| Vision Option | 20” high windows spaced evenly across width of door |
| Operation | Direct drive motor and gearbox system with a door stop device |
| Cooler Application | Air curtain options available including heated or non-heated, steel or stainless steel and various voltage offerings |

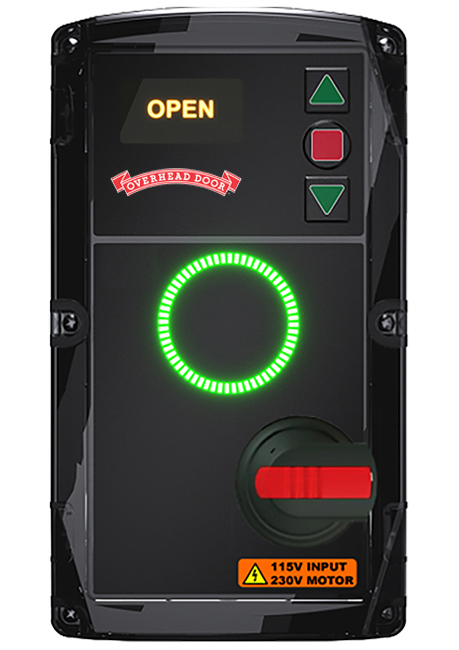

| Control Panel |
|
| Obstruction Detection | Infrared sensors mounted in-plane to the door curtain at 18" and 50"-54" from floor |
| Reversing Safety Edge | Wireless monitored reversing edge |
| Electrical Availability*** | 120V AC 1PH; 208V AC 1PH†; 220V AC 1PH; 208V AC 3PH†; 230V AC 1PH; 230V AC 3PH; 460V AC 3PH; 575V AC 3PH† (†requires stand-alone mounted transformer) |
| Wind Load* | Up to 7.5 PSF |
***Single phase available up to 10'x10' doors.
* Pressure/wind resistance value is the ultimate pressure tested at door width of 10'.
Warranty
- 5-year limited
FDA Compliant Applications
-
Royal Blue
-
White
Colors
-
White
-
Gray
-
Red
-
Blue
-
Black
-
Orange
RAL Powder Coat
Actual door color may vary from the digital representation shown here. Color samples are available by request through your Overhead Door™ Distributor. The standard color for guides, brackets, and bottom bar is yellow. 197 optional RAL powder coat color options are available.
Actuation options
Push button, key switch, pull switch, loop detector, motion detector, treadle switch, radio control. Wireless options available.
Signaling device options
Red/green LED warning light, horn/strobe combination, rotating warning light
Programmable LED lighting system
3' tall light bar with red, yellow, green lighting
20" high vision panels
Spaced evenly across width of door
Stainless steel guides, hood, motor cover and head plates
Food and beverage applications
An FDA-compliant fabric is available
Cooler application
Air curtain options available including heated or non-heated, steel or stainless steel and various voltage offerings
Light Curtain
Front or rear mounted; available in 3' or 6' models
