High Speed Exterior Low Headroom Rubber Door - RapidFlex® Model 995LH
High Speed Exterior Low Headroom Rubber Door - RapidFlex® Model 995LH

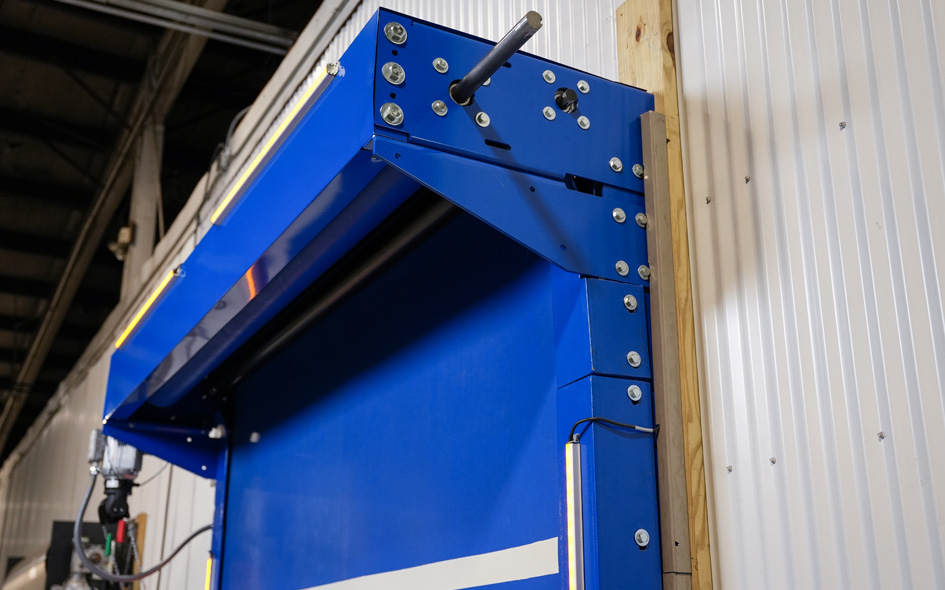

RapidFlex® Model 995LH is a heavy-duty exterior high speed rubber door specially designed for applications with low headroom. Built for performance and reliability, this high-cycle door is engineered to keep your operations running smoothly with minimal maintenance. Its innovative springless design, smooth-start variable frequency drive, and durable direct-mounted gear system reduce wear and extend service life. This door features multi-reinforced Nitrile Butadiene Rubber (NBR) for exceptional strength and resistance to petrochemicals—perfect for demanding exterior environments. With a pre-installed header assembly, optional LED lighting, and a moisture-blocking hood, it's a smart, space-saving solution designed to perform.
Ideal Applications Include
Product Specification | |
|---|---|
| Maximum Width | 22' |
| Maximum Height | 10' |
| Headroom | 12" for 8' to 14' wide doors 13" for 15' to 18' wide doors 15" for 19' to 22' wide doors |
| Maximum Opening Speed | Up to 30"/sec |
| Maximum Closing Speed | Up to 20"/sec |
| Curtain Lock | Yes |
| Breakaway Self Reset† | No |
| Wind Load* | Up to 27.0 psf |
| Curtain Material | 5 layers of NBR rubber with 4 layers of polyester weave |
| Operation | Direct drive motor and gearbox system with field changeable universal handing and door stop safety device |
| Control Panel | Variable frequency drive NEMA 4X cULus listed; Onboard self-diagnostic and service reminder; Built-in padlockable fused disconnect |
| Detection | Infrared sensors mounted in-plane to the door curtain at 4.5" and 50"-54" from floor |
| Reversing Safety Edge | cUR 325 recognized wireless reversing monitored edge sensor with adjustable impact detection |
| Available Voltages | 208V AC 3PH†, 230V AC 3PH, 460V AC 3PH, 575V AC 3PH† (†Requires stand-alone mounted transformer) |
* Wind load is the ultimate pressure tested at door width of 19'.
+ Automatic reset not available with low headroom model.
Warranty
- 5-year Limited
- Actuation options – Push button, key switch, pull switch, loop detector, motion detector, treadle switch, radio control. Wireless options available
- Signaling device options – Red/green LED warning light, horn/strobe combination, rotating warning light
- Programmable LED lighting system – 3' tall light bar with red, yellow, green lighting
- 20" high vision panels – spaced evenly across width of door
- Light Curtain – Front or rear mounted; available in 3' or 6' models
- Sealed Brake Kit – For exterior mounted environments
- Self-regulating gearbox heater – For cold climates to ensure optimal performance
Curtain Color Options
-
Black
-
Blue
Approximately 200 optional RAL powder coat
colors are also available.
RAL Powder Coat
Actual door color may vary from the digital representation shown here. Color samples are available by request through your Overhead Door™ Distributor. The standard color for guides, brackets, and bottom bar is yellow. 197 optional RAL powder coat color options are available.
