RapidSlat® Model 611 Model 611
RapidSlat® Model 611 Model 611
RapidSlat® Model 611

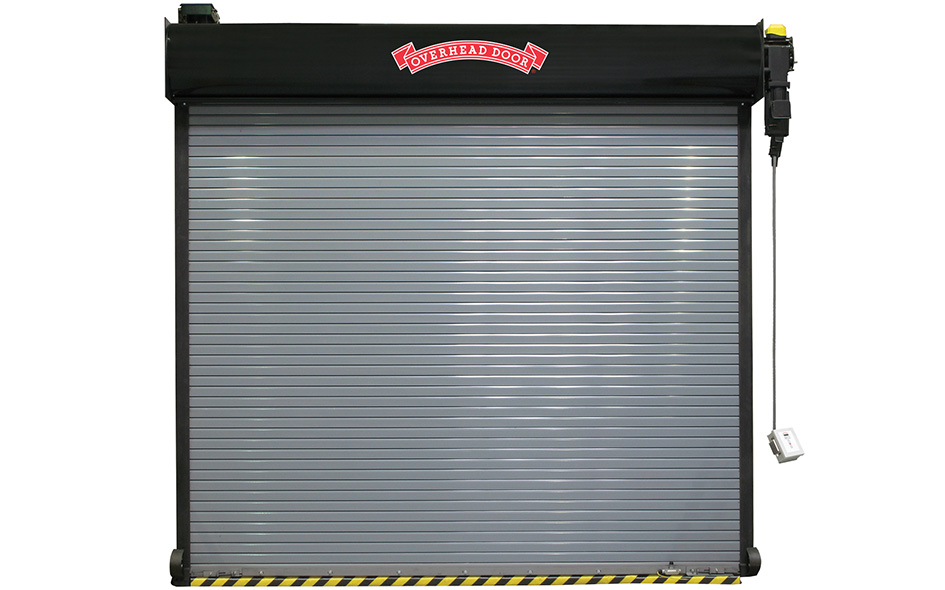

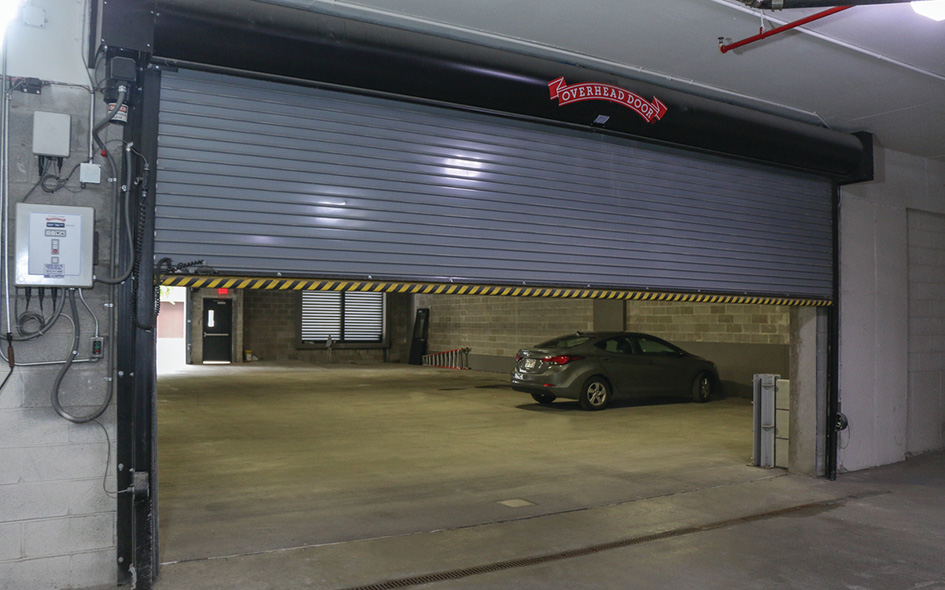

This advanced service door is well suited for any application that requires a rolling steel door with the added benefits of high cycles, increased productivity and durability including banks, manufacturing facilities, and parking garages. It is ideal for customers in the parking garage market wanting to replace grilles. The fenestrated slats allow air circulation; they are more durable than grilles and more secure than fabric doors.
Ideal Applications Include
Construction
| Product Specifications | |
|---|---|
| Standard Max Width | up to 30' (9246 mm) depending on gauge and slat type |
| Standard Max Height | up to 20' (6096 mm) depending on gauge and slat type |
| Mounting | Interior or exterior face of wall |
| Control panel | Variable frequency drive controller with self-diagnostics (time delay self-close timer and non-resettable cycle counter included); LCD readout, enclosure NEMA 4X rated |
| Curtain | Galvanized steel interlocking roll-formed slats, end locks attached to prevent lateral movement; Curved profile type C-187 for doors up to 15'4" wide - 22 gauge; Curved profile type C-275 for doors from 15'5" to 18'4" wide - 22 gauge; From 18'5" to 25'4" - 20 gauge; From 25'5" to 30'0" - 18 gauge |
| Curtain finish | Gray, tan or white PowderGuard® Max powder coat with hardening additive |
| Bottom bar | Two PowderGuard® Premium powder coated black angles (min. thickness 3/16”) with 2-wire, self-monitoring, fail safe, electric sensing edge |
| Hood | 24 gauge galvanized steel primed, black painted |
| Brackets | Min. ¼” hot rolled primed, PowderGuard® Premium powder coated black steel |
| Guides | Three structural steel angles PowderGuard® Premium powder coated black |
| Door roll | Direct driven, springless roll with integrated shafts; self-aligning grease-able sealed bearings; door does not require counterbalance device |
| Safety devices | Built-in brake mechanism provides additional peace-of-mind against uncontrolled curtain travel. Wireless monitored safety edge - all doors are equipped with a mandatory reversing or sensing edge to prevent entrapment. Photoelectric safety sensors with guards - provide additional safety during door operation to help prevent injury and damage |
| Operation | Direct drive, integrated gear motor/brake assembly (up to 24” per sec up speed / 12” per sec down speed); drive assembly and limit sensors are factory pre-assembled. Manual hand chain for power outage. Horsepower is appropriate to size and weight of door. 230V AC 3-phase motor |
| Actuator | Single open/close/stop push button station incorporated into control panel |
| Wind load | 20 psf when optional wear strips are not specified |
Warranty
- 5 year limited warranty coverage on all mechanical door system components and control panel hardware.
Standard Color: PowderGuard® Max
-
White
-
Gray
-
Tan
Actual door color may vary from the digital representation shown here. Actual color samples are available by request through your Overhead Door™ Distributor.
Powder Coat Color Options
PowderGuard® Premium powder coat options are available in approximately 200 colors as well as custom matching to specification.
Door Options
- Motor options: 208V AC 1PH†, 220V AC 1PH, 208V AC 3PH†, 230V AC 3PH, 460V AC 3PH, 575V AC 3PH†
(†requires stand-alone mounted transformer) - Curved Profile type C-187 for doors up to 15’4” wide. Available in: 20, 18 gauge galvanized steel; 22, 20 gauge stainless steel; 18 gauge (.044”) aluminum*
- Curved Profile type C-275 for doors up to 30’ wide. Available in: 20, 18 gauge galvanized steel; 22, 20 gauge stainless steel; 16 gauge (.050”) aluminum*
- Flat Profile type F-265 for doors up to 30’ wide. Available in: 20, 18 gauge galvanized steel; 22, 20 gauge stainless steel; 16 gauge (.050”) aluminum*

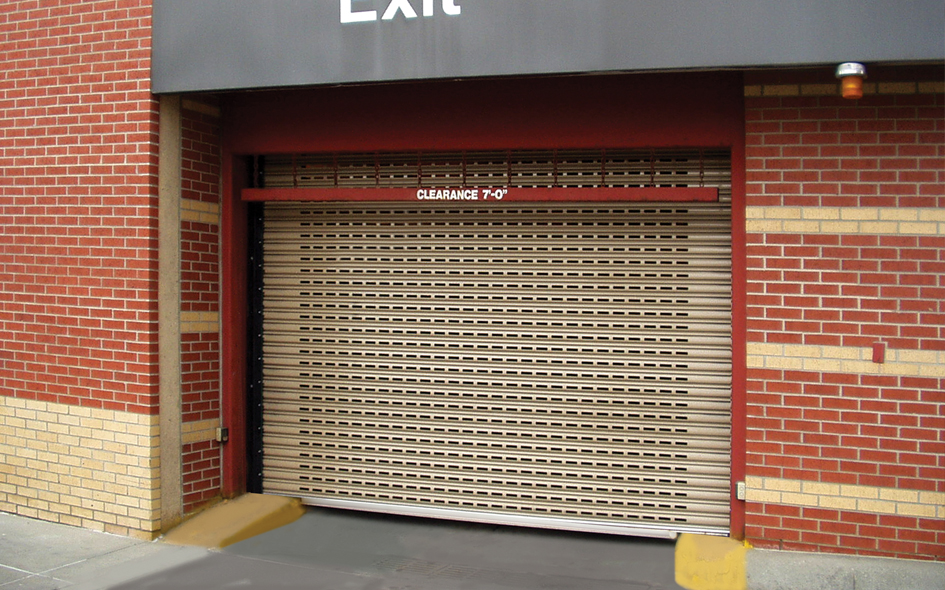

- Fenestrated 18 ga. steel slats or vision lites with uniformly spaced openings of 3" x 5/8" (76 mm x 16 mm) either slat profile or 10” x 1” (254 mm x 25.4 mm) flat slat profile only
- Perforated 18 ga. steel slats with 1/16" diameter perforation; spaced 3/32” on center
- Bottom Bar also available in: galvanized steel, stainless steel, aluminum
- High usage wear strips (not available with high wind load option)
- Guide options include galvanized steel and powdercoated steel
- Hood also available in: powdercoat, stainless steel and aluminum
- Brackets also available in: powdercoat, and galvanized steel
- Dual photoelectric sensors available for safety
- Optional push buttons, loop detectors, radio control, motion detectors or any combination thereof available for door operation/control
- PowderGuard® Max powder coat finish options are available in approximately 200 colors as well as custom matching to specification. On the RapidSlat® models PowderGuard® Max is required on curtain to maintain warranty on finish
- PowderGuard® Textured powdercoat: Industrial textured powdercoat provides a thicker, more scratch resistant coat for added product protection available on brackets, guides and bottom bar
- Perforated 18 ga. steel slats with 1/16" diameter perforation; spaced 3/32” on center
- High wind load options available
*Consult factory for specific slat profile and gauge width limits.
