EverServe® Model 625S​​

​​​​​​​​​This heavy duty Stormtite™ insulated springless service door delivers security, reliability and ease of serviceability and is best suited for applications that require protection against weather extremes. The insulated slats provide climate control as well as sound reduction, while perimeter seals provide additional protection from weather.

Construction

Product Specifications
Standard Max Widthup to 30' (9246 mm) depending on gauge and slat type
Standard Max Heightup to 20' (6096 mm) depending on gauge and slat type
MountingInterior or exterior face of wall
Control panelElectronic controller with microprocessor self-diagnostics. Digital readout indicates door action, alarm conditions, and fault conditions. Time delay self-close timer and non-resettable cycle counter is included. One open/close/stop push button station integrated in control panel. Enclosure is IP54 rated (NEMA 3 equivalent).
CurtainGalvanized steel interlocking roll-formed slats, end locks attached to prevent lateral movement; Insulated flat profile (F-265i) for doors up to 30' wide - front and back slats 24 gauge. Slat cavity shall be filled with CFC-free, foamed in-place, polyurethane insulation
Curtain finishGray, Tan, White or Brown polyester top coat
Bottom barTwo PowderGuard® Premium powder coated black angles (min. thickness 3/16”) with weatherstrip
Hood24-gauge galvanized steel primed; motor and end cover provided
BracketsMin. ¼” hot rolled primed, PowderGuard® Premium powder coated black steel
InsulationR-value* of 7.71 for energy-efficiency. U-value of .13 and STC rating of 21
GuidesBottom, exterior curtain-side guide, interior hood baffle
GuidesThree structural steel angles PowderGuard® Premium powder coated black; With high cycle UHMW wear strip
Door rollDirect driven, springless roll with integrated shafts; self-aligning grease-able sealed bearings; door does not require counterbalance device
Stormtite™ perimeter seal systemExterior guide seal, interior hood baffle, bottom astragal
Safety devicesBuilt-in braking mechanism provides additional peace-of-mind against uncontrolled curtain travel. Photoelectric safety ​sensors with guards - provide obstruction monitoring during door operation to help prevent injury and damage
OperationDirect drive integrated gear/motor/brake assembly; Drive assembly and limit sensors are factory pre-assembled; Manual hand chain for power outage. Horsepower appropriate to door size/weight; 230V AC 3-phase motor
ActuatorSingle open/close/stop push button station incorporated into control panel
Wind load20 psf

Warranty

  • 36 month limited warranty coverage on door system ​​​​​

Standard Exterior Color

  • white powder coat swatch

    White

  • gray color swatch

    Gray

  • tan color swatch

    Tan

  • brown color swatch

    Brown

Actual door color may vary from the digital representation shown here. Actual color samples are available by request through your Overhead Door™ Distributor.

Powder Coat Color Options

PowderGuard® Premium powder coat options are available in approximately 200 colors as well as custom matching to specification.

Powder Guard Coat Colors

Door Options

  • Motor options: 208V AC 1PH†, 220V AC 1PH, 208V AC 3PH†, 230V AC 3PH, 460V AC 3PH†, 575V AC 3PH†
    (†requires stand-alone mounted transformer)
  • Flat profile type F-265i for doors up to 30' wide. Available in: [Front Slat] 22, 20, 18 gauge galvanized steel; 22, 20 gauge stainless steel; 18 gauge (.040") aluminum [Back Slat] 22 gauge steel; 24 gauge stainless steel; 22 gauge (.024") aluminum*
  • Bottom bar also available in galvanized steel, stainless steel and aluminum
  • Guide options include galvanized steel, power-coated steel
  • Hood available in powder coat, stainless steel and aluminum; sloped hood also available
  • Brackets also available in powder coat, galvanized steel
  • IP65 (NEMA 4/4X equivalent) control panel
  • Sensing edge for improved safety
  • Additional set of photoelectric sensors
  • Optional push buttons, loop detectors, radio control, motion detectors or any combination thereof available for door operation/control
  • PowderGuard® Premium powder coat and PowderGuard® Max hardened powder coat available in approximately 200 colors as well as color-matching to specification
  • PowderGuard® Textured Finish: Industrial textured powder coat provides a thicker, more scratch resistant coat for added product protection on guides, bottom bar and head plate

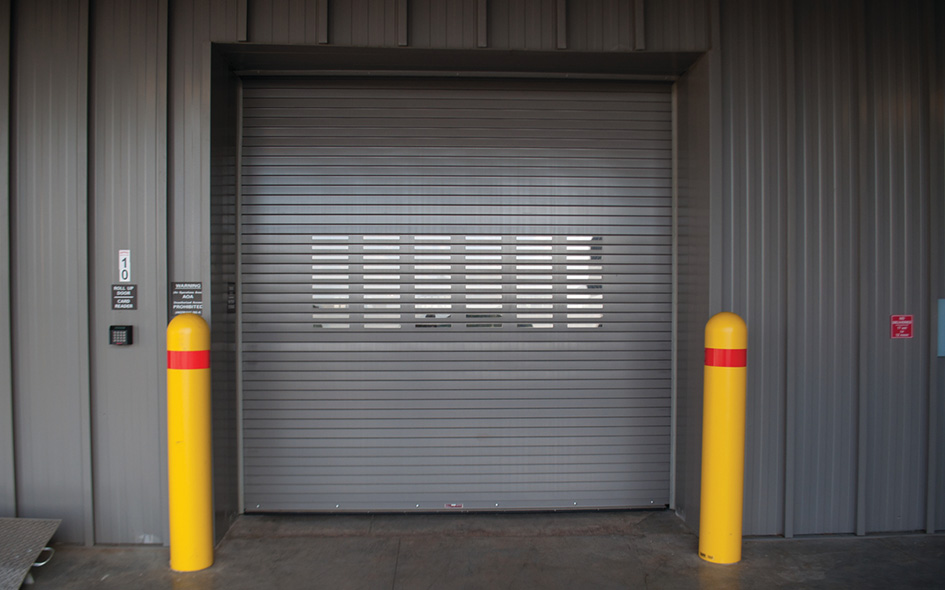

  • Uniformly spaced glazed acrylic vision lites available in 10” x 1”​
  • High wind load options available

*Consult factory for specific slat profile and gauge width limits.
