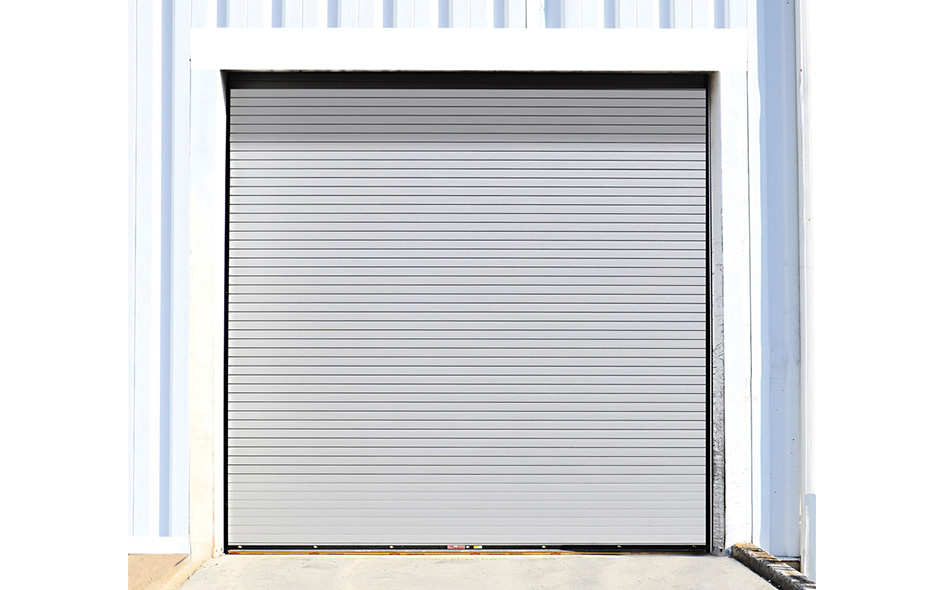

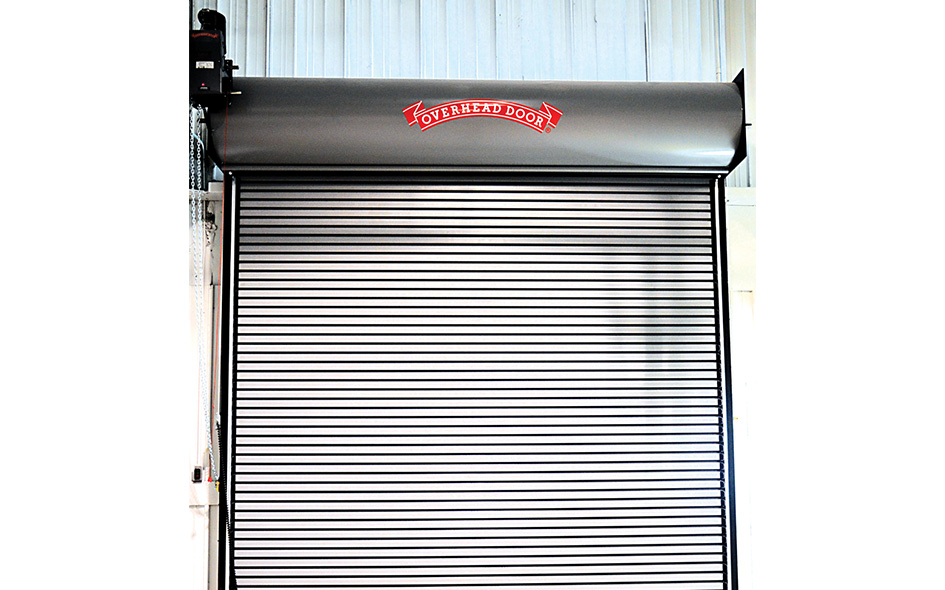

Stormtite™ AP Model 627​​

Our Model 627 door system’s advanced performance answers the demand for more reliability, durability, security, flexibility and thermal efficiency. Ideal applications include: industrial manufacturing facilities, government facilities, public facilities, food and beverage distribution facilities, climate controlled facilities, healthcare facilities, shipping and receiving docks.

Construction

Product Specifications
Standard Max Width30'4" (9144 mm)
Standard Max Height19'4" (5893 mm)
InsulationFoamed-in-place, CFC and HCFC-free polyurethane
R-value 10.9 (1.91 W/m2)*; U-factor 0.87​
FinishWhite, gray, tan or brown
Hood24 ga. galvanized steel ​
Sound Transmission Class ratingThrough curtain 28; Installed system 21
Flame Spread & Smoke IndexClass A or 1
Wind load20 psf
LockPadlockable chain keeper ​
Bottom barBlack powder coated steel with vinyl weatherseal ​
Standard mountingFace of wall ​
OperationChain hoist
Standard springs20,000 cycle
Advanced Perimeter ProtectionBottom weatherseal, interior and exterior EPDM triple-finned guide brush weatherseals, interior hood baffle, and lintel seal

Slat profile

Flat, insulated FIT-265 ​profile

FIT-265 – available up to 30’4” (9246 mm) wide in 24 gauge. Other gauges available. Insulated slat curtain provides R-value of 10.9; U-value of 0.09, STC of 21. No perforation or fenestration available on FIT-265. Vision lites available in 1”x10” (25.4 mm x 254 mm).

rolling steel fit slat

Warranty

  • 24-month limited on door
  • 3 year/20,000 cycles limited on door & operator system (when purchased together) ​​​​

Advanced Performance in an Insulated Rolling Door System

This door system presents the most advanced thermal performance values published by any major US manufacturer of insulated rolling steel doors, with an R-value* of 10.9, U-value** of 0.09 and a tested installed U-factor† of 0.84. When compared to the International Energy Conservation Code (IECC) 2012 requirements, the Stormtite™ AP Model 627 far surpasses these. The superior construction of this rolling service door and the advanced design of the perimeter seals offer superior door protection against air leakage. The innovative EPDM triple-finned guide brush weatherseals (located on interior and exterior of guide), work in tandem with the hood baffle and bottom bar weather seals to reduce air leakage through the entire door system perimeter.​​​​

The sound performance of the Stormtite™ AP Model 627 furnishes a through curtain Sound Transmission Class (STC) rating of 28 and installed system rating of 21. The higher the STC rating the better the buffering is from the transmission of sound through and around the door. This insulated door system also includes a flame spread and smoke index of class A or 1, the highest rating possible and complies with National Fire Protection Association (NFPA), Underwriters Laboratories (UL) and International Building Code (IBC) requirements.

Stormtite™ Secures Against Elements and Forced Entry

The Stormtite™ AP Model 627 is constructed of interlocking slats with endlocks and/or windlocks. This design supplies resistance against forced exterior entry and several interior lock options can supply additional security. The 627 delivers 20 psf (design pressure) wind load protection, which is equivalent to approximately 90 to 110 mph wind speed (comparable to hurricane force wind category 1 to 2). This model can be built to accommodate higher wind loading upon request.

Flexibility in Operation

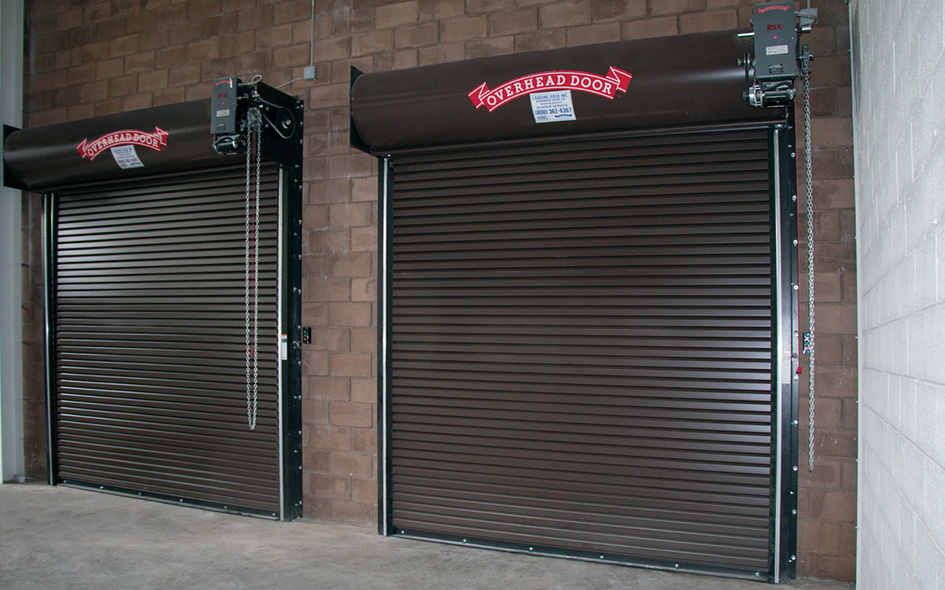

This Stormtite™ AP door system comes with chain hoist operation standard; crank and motor operation options are also available. The varied options of operation and mounting (left or right handed) afford flexibility to meet the needs of the facility and application.

Many Options, Customized Solutions

The Stormtite™ AP Model 627 is available with a number of options to meet individual application needs. The large insulated vision lite features thick dual-wall polycarbonate which affords advanced insulation properties as well as maximum visibility and light transmittance. Slat options include a choice of steel (standard), stainless steel or aluminum. Finish options include a choice of 4 standard colors as well as the PowderGuard® Premium powder coat finish in approximately 200 colors or color-matched to specification. The PowderGuard® Zinc and PowderGuard® Weathered finishes are also available for the door curtain as well as bottom bar angles and guides.

Special application options include oversized doors, combination doors (2 doors on a single head plate), and pass doors. Ask your Overhead Door™ Distributor for more information about the special applications options.​

* R-value is a measure of thermal efficiency. The higher the R-value the greater the insulating properties of the door. Overhead Door Corporation uses a calculated door curtain R-value for our insulated doors.

** U-value is a measure of the flow of heat through an insulating or building material: the lower the U-value, the better the insulating ability. U-value is the inverse of R-value.

† Installed U-Factor - A tested value of actual energy loss - whether heat or cold - of an installed door, wall, or window assembly. The lower the number the lower the energy loss and therefore the better the thermal performance. U-factor will vary between 0.66 and 1.00 depending on finish and color selection. For best U-factor, choose finish and color with high solar reflectance (bright colors).​​​​​

Standard Exterior Color

  • brown color swatch

    Brown

  • white color swatch

    White

  • gray color swatch

    Gray

  • tan color swatch

    Tan

Actual door color may vary from the digital representation shown here. Actual color samples are available by request through your Overhead Door™ Distributor.

Powder Coat Color Options

PowderGuard® Premium powder coat options are available in approximately 200 colors as well as custom matching to specification.

Powder Guard Coat Colors

Door Options

  • Between-jamb mounting
  • Electric (RHX®, RSX®, RMZ®) or crank operation
  • Bottom sensing edge and photo eyes
  • Sloping bottom bar
  • Slat finishes: aluminum or stainless steel
  • PowderGuard® powder coat finish options are available in approximately 200 colors as well as custom matching to specification.
  • PowderGuard® Zinc and PowderGuard® Weathered finishes
  • Insulated vision lites uniformly spaced of 1” x 10” (25.4 mm x 254 mm)
  • High-usage package
  • High-wind load
  • Galvanized steel bottom bar angle guides
  • Cylinder lock
  • Special applications;combination doors, pass doors​​

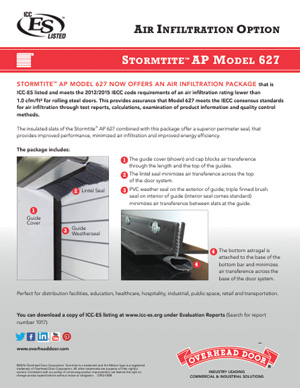

  • Air infiltration package (meets IECC code requirements 2012 C402.4.3/2015 C402.5.2); includes guide cover and cap; weatherseals on interior & exterior of guide; lintel brush seal; bottom astragal​
