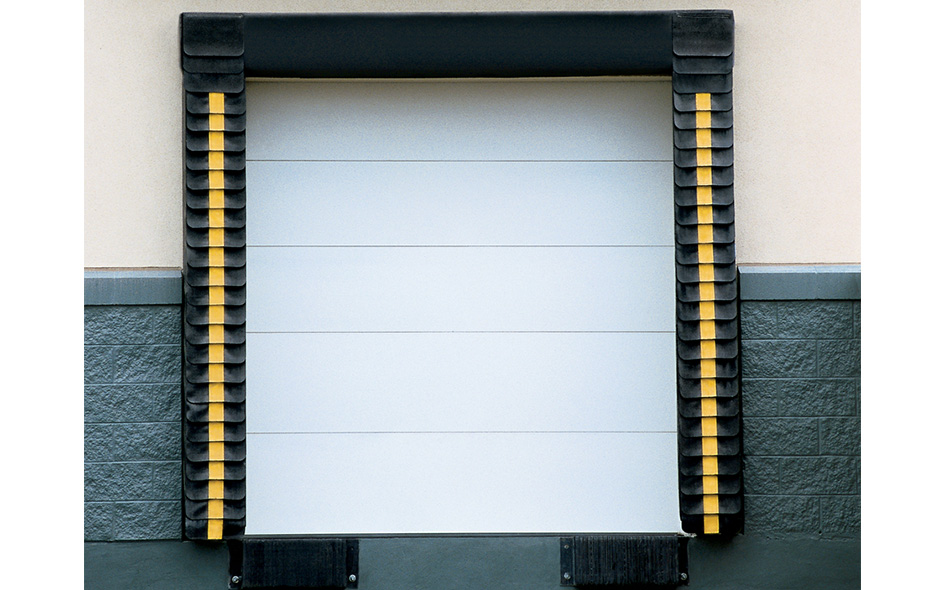

Sectional steel door model 416 is strong, durable and versatile. Designed for heavy-duty commercial and industrial applications, this door is available in 16-gauge galvanized steel, in sizes up to 32'2" (9804 mm) width and 21'1" (6426 mm) in height. Available with an array of options, the Model 416 can be easily customized to meet any project requirement where an extra heavy-duty door is required.

Construction

Product Specifications
Standard Max Width32'2" (9804 mm)
Standard Max Height21'1" (6426 mm)
Exterior steel16-gauge galvanized steel
Exterior surfaceFlush
FinishWhite baked-on polyester
End stiles16-gauge steel
Wind LoadFBC approved wind load options available
Center stiles16-gauge steel
Standard mountingAngle mount
Standard track2" (51 mm)
Standard springs10,000 cycle
Weather StrippingFlexible PVC bottom with retainer
OperationManual pull rope and electric operator
LockInterior mounted slide lock

Warranty

  • 1-year limited

  • white color swatch

    White

  • aluminum sash window option for section steel commercial door

    Aluminum Sash Section (with DSB glazing)

  • Chain Hoist or Electric Operator is recommended for doors above 10' tall or more than 400 pounds
  • Bottom sensing edge
  • Full sash section with 1/8" (3 mm) DSB, insulated; 1/8" (3 mm) and 1/4" (6 mm) acrylic
  • Individual lites with 1/8" (3 mm) DSB; 1/8" (3 mm) and 1/4" (6 mm) acrylic; 1/8" (3 mm) and 1/4" (6 mm) polycarbonate; 1/8" (3 mm) and 1/4" (6 mm) tempered; 1/4" (6 mm) wired
  • 3" (76 mm) track
  • Bracket mounting (not available on full vertical door tracks)
  • Higher-cycle springs in 25k, 50k, 75k, 100k cycles
  • Exhaust ports
  • Jamb weather seals
  • Bottom strips; including: looped PVC weatherstrips, flexible PVC astragal weatherstrips, and double-contact weatherstrips
  • Reinforcing struts of roll-formed, galvanized steel
  • Movable center posts for 2" (51 mm) or 3" (76 mm) tracks that roll away, with automatic safety catches that prevent door closure when posts are removed
  • Tumbler keyed lock
  • Window Glazing Options
  • Impact Section Available
