Sectional Steel Door Model 422 Model 422

Sectional Steel Door Model 422 Model 422

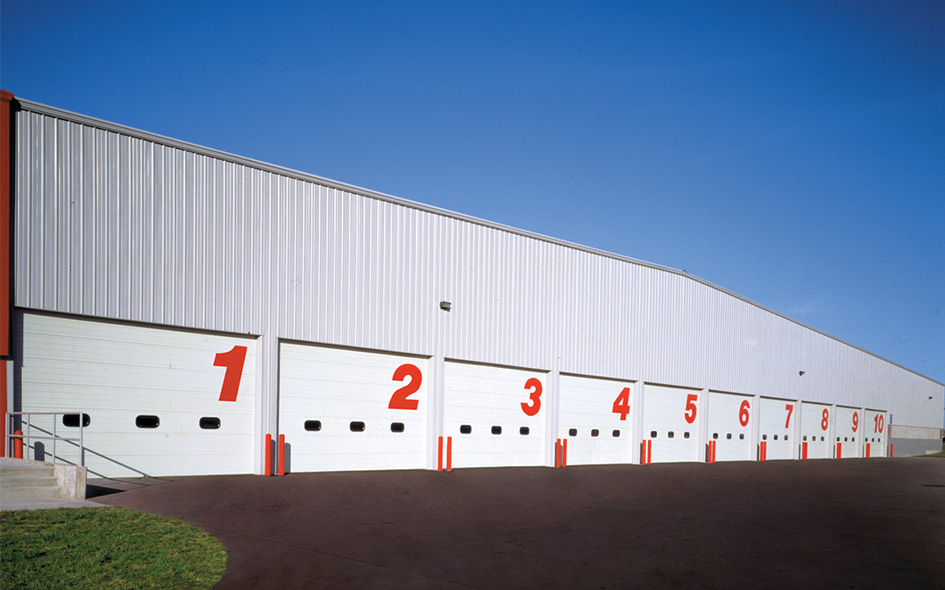

Sectional Steel Door model 422 door is ideal for heavy-duty applications requiring protection against the elements. These doors feature a 2" (51 mm) panel thickness, 16-gauge steel intermediate and end stiles, ribbed steel exterior and 26-gauge steel back cover in a white finish. Polystyrene insulation provides an R-value of 7.35. The Model 422 is a 20-gauge steel door available in sizes up to 29´2" in width and 24´1" in height (8890 mm and 7341 mm). A multitude of options -- including reinforcing struts, movable center posts, and motor operation allow these insulated heavy-duty doors to be used in a variety of commercial and industrial environments.

Construction

Product Specifications
Standard Max Width29'2" (8890 mm)
Standard Max Height24'1" (7341 mm)
Nominal thickness2" (51 mm)
InsulationExpanded polystyrene
R-value7.35 (1.29 W/Msq)
Exterior steel20-gauge galvanized steel
Exterior surfaceRibbed
End stiles16-gauge steel
Center stiles16-gauge steel
Interior colorWhite
Back cover26-gauge galvanized steel (poly-bonded laminate, high impact polystyrene (HIPS) backed optional)
Standard mountingAngle mount
Standard track2" (51 mm)
Standard springs10,000 cycle
Weather StrippingStandard on bottom
OperationManual pull rope or electric operator
FinishWhite baked on-polyester
LockInterior mounted slide lock
Wind LoadFBC approved wind load options available

Warranty

  • 1-year limited

Our model 422 insulated sectional steel doors are ideal for heavy-duty applications requiring protection against the elements. These insulated sectional steel doors feature a 16-gauge steel intermediate and end stiles and ribbed steel exterior and 26-gauge steel back cover in a white finish.

These sectional steel doors offer the benefit of insulation for applications where enhanced thermal efficiency is desired. The standard expanded polystyrene provides R-values of 7.35 (1.29 W/Msq). These sectional doors also feature a back cover of 26-gauge galvanized steel for added protection against thermal transfer.

Superior panel strength and a heavy-duty, tight-fitting 2” (51 mm) track combine to meet local windloading requirements. Rabbeted meeting rails ensure weathertight joints and provide full-width interlocking structural rigidity. Precision-manufactured galvanized steel track, hinges and fixtures ensure long life and low maintenance. A baked-on polyester paint finish eliminates job-site painting and provides added protection against the elements.

These sectional steel doors offer plenty of options to meet your aesthetic and functional requirements. You’ll have the choice of full-sash section or individual-panel glazing to control the amount of light infiltration and permit visitor identification. Bracket mounting is available (except on full vertical doors). A variety of bottom strips and jamb weatherseals minimize air infiltration and accommodate any number of field conditions, including sloping grades.

These sectional steel doors offer an optional package that improves door performance and durability for doors with high-usage cycles. This special application package has three key components for added strength and durability: high-cycle torsion springs in 25K, 50K, 75K or 100K cycles, a solid-steel shaft to reduce fatigue and deflection, and a heavy-duty 3” track. Also available is an integrated line of electric operators designed specifically for these heavy-duty doors, which enhances reliable performance for years to come.

The sectional steel model 422 is a 20-gauge steel door available in sizes up to 29’2” in width and 24’1” in height (8890 mm and 7341 mm). A multitude of options — including reinforcing struts, movable center posts, and motor operation — allow these insulated heavy-duty doors to be used in a variety of commercial and industrial environments.

  • white color swatch

    White

  • Chain Hoist or Electric Operator is recommended for doors above 10’ tall or more than 400 pounds
  • Bottom sensing edge
  • Full sash section with 1/8" (3 mm) DSB, insulated; 1/8" (3 mm) and 1/4" (6 mm) acrylic
  • Individual lites with 1/2" (13 mm) DSB
  • 3" (76 mm) track
  • Bracket mounting (not available on full vertical door tracks)
  • Higher-cycle springs in 25k, 50k, 75k, 100k cycles
  • Exhaust ports
  • Jamb weather seals
  • Bottom strips; including: looped PVC weatherstrips, flexible PVC astragal weatherstrips, and double-contact weatherstrips
  • Reinforcing struts of roll-formed, galvanized steel
  • Movable center posts for 2" (51 mm) or 3" (76 mm) tracks that roll away, with automatic safety catches that prevent door closure when posts are removed
  • Tumbler keyed lock
  • Window Glazing Options
  • Impact Section Available
