Sectional Steel Door Model 430 Model 430

Sectional Steel Door Model 430 Model 430

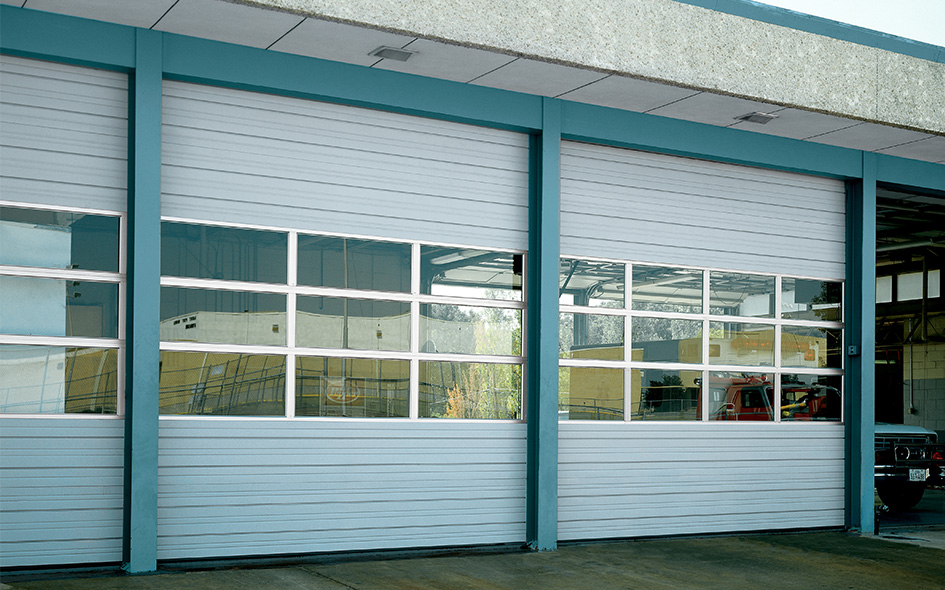

Sectional steel door model 430 is available in sizes up to 20´2" (6147 mm) in width and 16´1" (4902 mm) in height for a variety of medium-duty applications. These doors feature a 2" (51 mm) panel thickness and a nominal 24-gauge, ribbed, white galvanized steel exterior with 16-gauge steel intermediate and end stiles (Industrial Brown exterior is available). The Model 430 is customizable to any project specification with a variety of additionally available options.

Construction

Product Specifications
Standard Max Width 31'2" (9500 mm)
Standard Max Height 24'1" (7341 mm)
Nominal thickness 2" (51 mm)
Exterior steel 20-gauge galvanized steel
Exterior surface Ribbed
End stiles 16-gauge steel
Center stiles 16-gauge steel
Standard mounting Angle mount
Standard track 2" (51 mm)
Standard springs 10,000 cycle
Weather Stripping Flexible PVC bottom with retainer
Operation Manual pull rope or electric operator
Finish White baked on-polyester
Lock Interior mounted slide lock
Wind Load FBC approved wind load options available

Warranty

  • 1-year limited

  • white color swatch

    White

  • industrial brown color swatch

    Industrial Brown

Actual door color may vary slightly from the digital representation above.

  • Chain Hoist or Electric Operator is recommended for doors above 10’ tall or more than 400 pounds
  • Bottom sensing edge
  • Full sash section with 1/8" (3 mm) DSB, insulated; 1/8" (3 mm) and 1/4" (6 mm) acrylic
  • Individual lites with 1/8" (3 mm) DSB; 1/8" (3 mm) and 1/4" (6 mm) acrylic; 1/8" (3 mm) and 1/4" (6 mm) polycarbonate; 1/8" (3 mm) and 1/4" (6 mm) tempered; 1/4" (6 mm) wired
  • 3" (76 mm) track
  • Bracket mounting (not available on full vertical door tracks)
  • Higher-cycle springs in 25k, 50k, 75k, 100k cycles
  • Exhaust ports
  • Jamb weather seals
  • Bottom strips; including: looped PVC weatherstrips, flexible PVC astragal weatherstrips, and double-contact weatherstrips
  • Reinforcing struts of roll-formed, galvanized steel
  • Movable center posts for 2" (51 mm) or 3" (76 mm) tracks that roll away, with automatic safety catches that prevent door closure when posts are removed
  • Tumbler keyed lock
  • Window Glazing Options
  • Warehouse Package – Quick install system available
  • Impact Section Available
