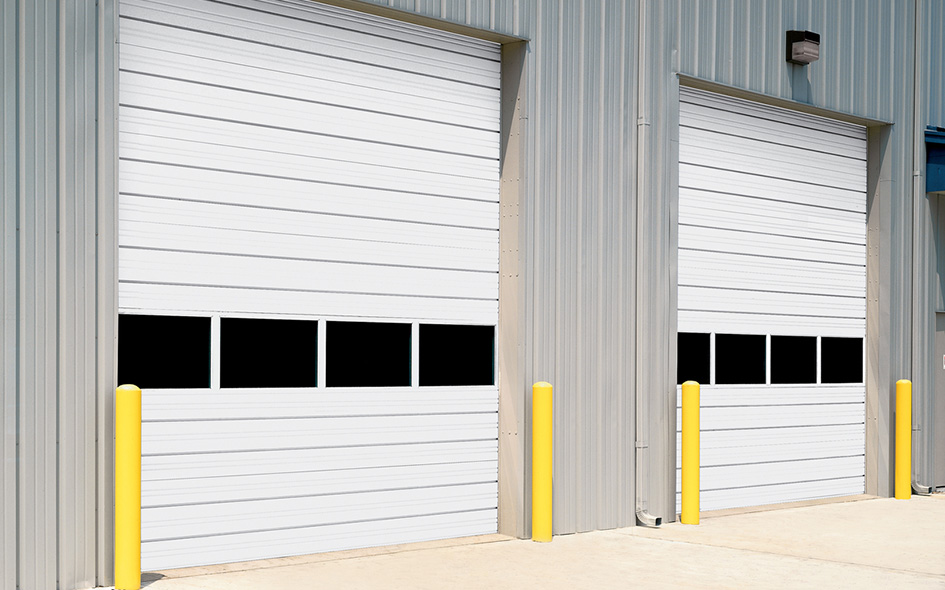

Sectional steel door model 432 offer a 2" (51 mm) panel thickness, a nominal 24-gauge ribbed galvanized steel exterior, and a poly-bonded back cover. Polystyrene insulation provides an R-value of 7.35. A variety of options makes this door an economical solution for applications requiring a medium-duty insulated steel door.
| Product Name | Product Model | Request Drawing |
|---|---|---|
| Insulated Sectional Steel Door | Model 432 | Add Product |
Ideal Applications Include
Construction
| Product Specifications | |
|---|---|
| Standard Max Width | 20'2" (6147 mm) |
| Standard Max Height | 16'1" (4902 mm) |
| Nominal thickness | 2" (51 mm) |
| Exterior steel | 26-gauge galvanized steel |
| Back cover | Poly-bonded laminate |
| Insulation | Expanded polystyrene |
| R-value | 7.35 (1.29 W/Msq) |
| Exterior surface | Ribbed |
| Wind Load Compliance | FBC approved wind load options available |
| End stiles | 16-gauge steel |
| Center stiles | 16-gauge steel |
| Standard mounting | Angle mount |
| Standard track | 2" (51 mm) |
| Standard springs | 10,000 cycle |
| Weather Stripping | Standard on bottom |
| Operation | Manual pull rope or electric operator |
| Finish | White or Industrial Brown baked-on polyester |
| Lock | Interior mounted slide lock |
Warranty
- 1-year limited
-
Ribbed Panel
-
White
-
Industrial Brown
Actual door color may vary slightly from the digital representation above.
- Chain Hoist or Electric Operator is recommended for doors above 10’ tall or more than 400 pounds
- 26-gauge galvanized steel back cover
- High impact polystyrene (HIPS) back cover
- Bottom sensing edge
- Full sash section with 1/8" (3 mm) DSB, insulated; 1/8" (3 mm) and 1/4" (6 mm) acrylic
- Individual lites with 1/2" (13 mm) DSB
- 3" (76 mm) track
- Higher-cycle springs in 25k, 50k, 75k, 100k cycles
- Exhaust ports
- Jamb weather seals
- Bottom strips; including: looped PVC weatherstrips, flexible PVC astragal weatherstrips, and double-contact weatherstrips
- Reinforcing struts of roll-formed, galvanized steel
- Movable center posts for 2" (51 mm) or 3" (76 mm) tracks that roll away, with automatic safety catches that prevent door closure when posts are removed
- Tumbler keyed lock
- Window Glazing Options
- Warehouse Package – Quick install system available
- Impact Section Available
