Side Folding Full Enclosure Security Grilles 675 Model 675

Side Folding Full Enclosure Security Grilles 675 Model 675

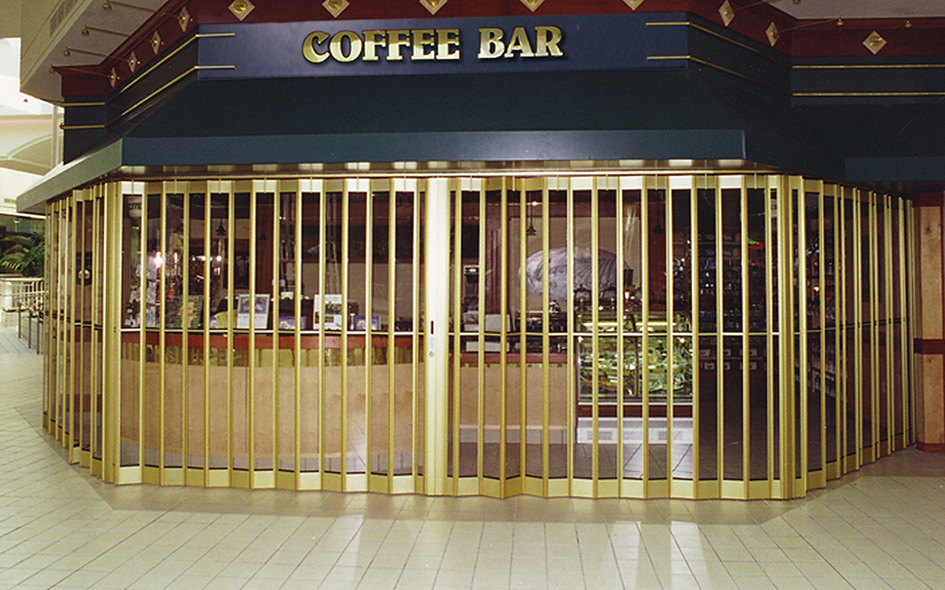

Overhead Door™ side-folding full closure grilles are ideal for applications that require a secure barrier against theft and debris, such as retail applications in malls and airport concourses​. The full closure side folding grille product line includes four panel materials: perforated steel, clear polycarbonate, tempered glass and aluminum.

Side Folding Full Enclosure Security Grilles Model 675 features painted perforated steel for full ventilation. Visibility: 51% of 6-1/8" (156 mm) viewable area.

Construction

Product Specifications
OperationManual
Curtain FrameTruss-like aluminum top and bottom plates; 1/8” (3 mm) thick
Panel Width7” (178 mm) standard body; 4” (102 mm) slim body
FinishAluminum clear anodized
Trolley assembly1 1/8” (29 mm); vertical adjustment 1" (25 mm) up/down without curtain removal
Track detailTop-mounted, heavy-duty aluminum sections
Height: 1 5/8" (41 mm)
Width: 1 3/8" (35 mm)
Track Curves and Radius 90°: Standard body: 14” (356 mm) radius;
Slim body: 10” (254 mm) radius
120°, 135° and 150°; Standard and Slim body:
10” (254 mm) radius
Post typesLead post
Hook lock and wall channel; bi-part; top and bottom shoot bolts
Intermediate post
Bottom shoot bolt
Trailing end post
Traveling; fixed; hook lock and wall jamb; top and bottom shoot bolts; carrier/td>
Locking mechanismsLead post
Concealed cylinder-operated hook lock accessible from interior and exterior
Intermediate post
Concealed cylinder-operated shoot bolt accessible from one side only
Trailing end post
Attached 10’ max. (3048 mm) protection plate self-locking into a steel V-Stop​​

Warranty

  • 24 month OEM limited​​​​​​​​​

Door Options

  • Custom radii and curves
  • Emergency Egress Door ​​

Model 675
Standard Body

security grill standard pattern model 675

Curtain: 7” (178 mm) standard width, 0.05" (1.27 mm) perforated steel panels with 3/16” (5 mm) dia. holes on 1/4" (6 mm) staggered centers that slide into aluminum hinges. Panels are framed by min. 4” (102 mm) high aluminum bottom plates and top plates.

Visibility: 51% of 6 1/8” (156 mm) viewable area.

Model 675
Slim Body

security grill modern 675 slim body pattern

Curtain: 4” (102 mm) standard width, 0.05" (1.27 mm) perforated aluminum panels with 3/16" (5 mm) dia. holes on 1/4" (6 mm) staggered centers that slide into aluminum hinges. Panels are framed by min. 4" (102 mm) high aluminum bottom plates and top plates.

Visibility: 51% of 3 1/2” (89 mm) viewable area. ​
