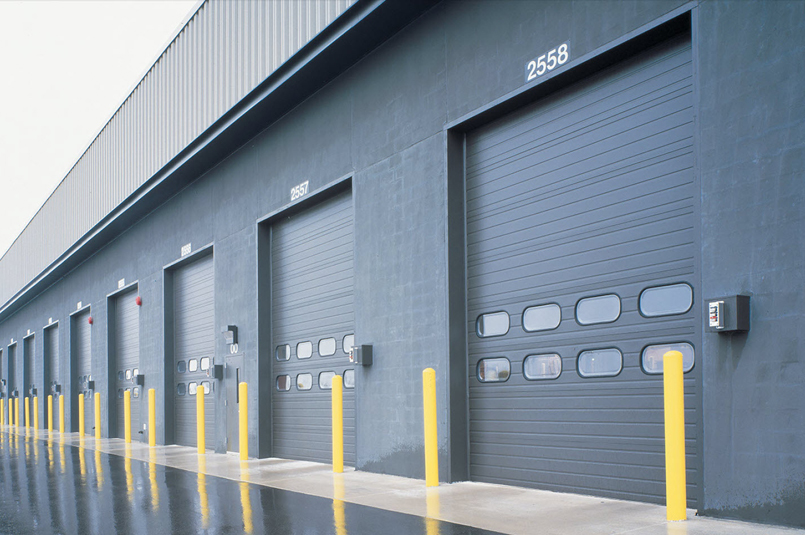

Thermacore® Sectional Steel Door - 592 Model 592
Thermacore® Sectional Steel Door - 592 Model 592
The Thermacore® Model 592 offers thermal efficiency for heavy-duty applications. It is an ideal choice for applications that demand high levels of thermal efficiency, air infiltration, and wind load resistance.
With a U-factor of 0.17 (R-value of 17.5) and low air infiltration, the Thermacore® Model 592 is a thermally efficient door system.
The Thermacore® product line features steel-polyurethane-steel panel construction which provides a thermal barrier that withstands extremely hot or cold climates and the most demanding environmental requirements.
The Model 592 has 2" (51 mm) thick, extra heavy-duty sections that are available in standard sizes up to 40'2" and 32'1" (12,243 mm and 9,779 mm) to fit the broadest range of applications.
| Product Name | Product Model | Request Drawing |
|---|---|---|
| Thermacore® Sectional Steel Door | Model 592 | Add Product |
Ideal Applications Include
Construction
| Product Specifications | |
|---|---|
| Standard Max Width | 40'2" (12,243 mm) |
| Standard Max Height | 32'1" (9,779 mm) |
| Panel thickness | 2" (51 mm) |
| U-factor* | 0.17 |
| R-value** | 17.5 (3.09 W/m2) |
| Sound Transmission Class 20 | Ideal for applications that require sound control |
| Air infiltration | at 25 mph (40 kmp/h) .13 cfm/ft2 (2.37 m3/hr/m2) |
| Thermal break | PVC |
| Exterior Steel | .015" (.38 mm) galv. |
| Exterior Surface | Ribbed, textured |
| Standard Springs | 10,000 cycles |
| Wind Load | Designs available for usage in high-wind conditions |
*U-Factors are based on independent testing and verified per ANSI/DASMA 105. For products other than aluminum full-view doors, testing was conducted on specific sizes of solid doors. Actual thermal performance may vary by door size and configuration.
**Overhead Door uses a calculated door section R-value for our insulated doors.
Warranty
- 10 year limited delamination
- 1 year limited on door
- 3 year/20,000 cycle limited on door & operator system (when purchased together; on material and workmanship)
- 20 year limited on high performance fluoropolymer coating option
-
Ribbed Panel
-
White
-
Gray
-
Tan
-
Industrial Brown
-
Black
-
Trinar White
-
Trinar Brown
-
Trinar Beige
High performance fluoropolymer coating (Trinar® or equivalent) finish option available in white, brown and beige. Offers superior performance.
Actual door color may vary from the digital representation shown here. Color samples are available by request through your Overhead Door™ Distributor.
- Chain Hoist or Electric Operator is recommended for doors above 10’ tall or more than 400 pounds
- Aluminum sash section available up to 24'2" (7,366 mm) wide
- Insulated glass, tempered glass, polycarbonate, multi-wall polycarbonate, etc.
- High performance fluoropolymer coating (Trinar® or equivalent)
- Four-section pass door
- High-usage package
- Wind load options
- Electric operator
- Chain hoist
- Posi-Tension™ drums
- Safety bottom fixture
- Bottom-sensing edge
- Flexible jamb, header seal
- Exhaust ports
- Window Glazing Options
- Impact Section Available
