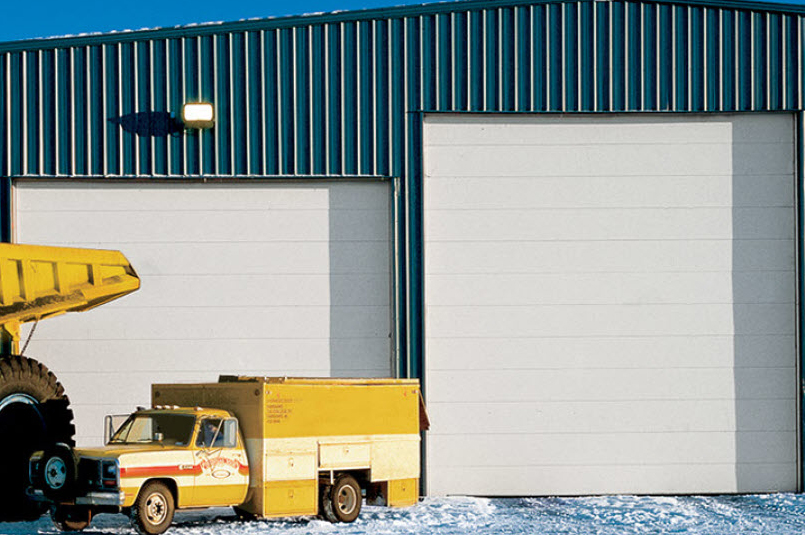

Thermacore® Sectional Steel Door - 599 Model 599

With a U-factor of .10 (R-value of 17.5), and one of the best overall air infiltration ratings in the industry, the Thermacore® Sectional Steel Door Model 599 is one of the most thermally efficient door systems in its class. The Model 599 doors also carry a Class 26 sound transmission rating for applications where sound suppression is desirable.

The Thermacore® line features steel-polyurethane-steel panel construction which provides a thermal barrier that withstands extremely hot or cold climates and the most demanding environmental requirements.

Request a Quote Find a Distributor

Ideal Applications Include

Construction

Product Specifications
Standard Max Width40'2" (12,243 mm)
Standard Max Height32'1" (9,779 mm)
Panel thickness2" (51 mm)
U-factor*.10
R-value**17.5 (3.09 W/m2)
Sound Transmission Class 26Ideal for applications that require sound control
Air infiltrationat 25 mph (40 kmp/h) .13 cfm/ft2 (2.37 m3/hr/m2)
Thermal breakPVC
Exterior Steel.015" (.38 mm) galv.
Exterior SurfaceFlush, textured
Standard Springs10,000 cycles
Wind LoadDesigns available for usage in high-wind conditions

*U-factor values are independently tested and verified per ANSI/DASMA 105.
**Overhead Door™ brand uses a calculated door section R-value for our insulated doors.

Warranty

  • 10 year limited delamination
  • 1 year limited on door
  • 3 year/20,000 cycle limited on door & operator system (when purchased together; on material and workmanship)
  • 20 year limited on high performance fluoropolymer coating option

  • traditional wood flush panel design

    Flush Panel

Exterior Colors

  • white color swatch

    White

Actual door color may vary slightly from the digital representation above. Color samples are available by request through your Overhead Door™ Distributor.

  • Chain Hoist or Electric Operator is recommended for doors above 10’ tall or more than 400 pounds
  • Aluminum sash section available up to 24'2" (7,366 mm) wide
  • Insulated glass, tempered glass, polycarbonate, multi-wall polycarbonate, etc.
  • Four-section pass door
  • High-usage package
  • Wind load options
  • Electric operator
  • Chain hoist
  • Posi-Tension™ drums
  • Safety bottom fixture
  • Bottom-sensing edge
  • Flexible jamb, header seal
  • Exhaust ports
  • Impact Section Available
