Upward Coiling Security Grilles - 674 Model 674
Upward Coiling Security Grilles - 674 Model 674

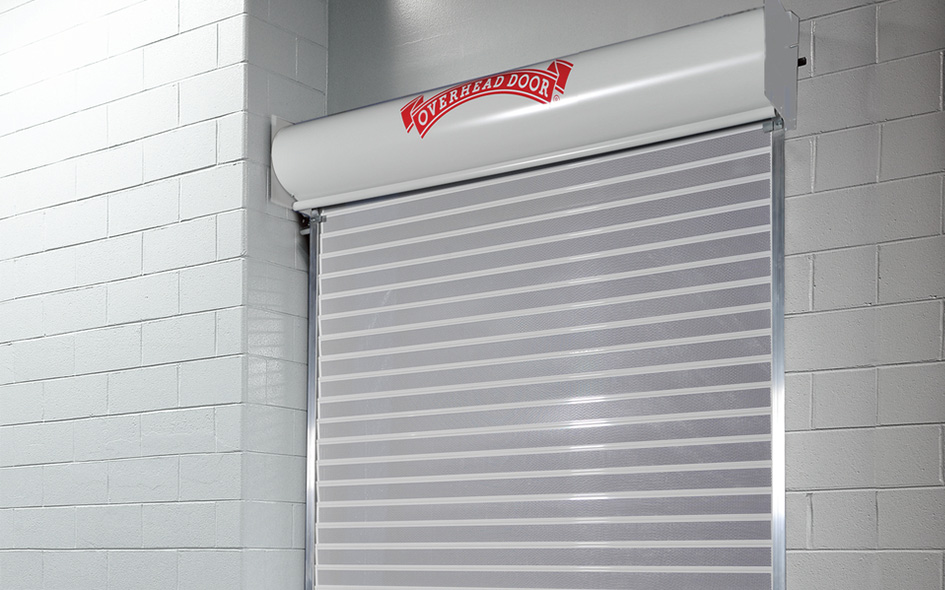

Upward-coiling perforated grille (Model 674) provides an attractive yet functional means to secure areas where public access must be restricted. Perfect for interior applications such as retail, pharmacies and healthcare facilities, the perforated aluminum panels provide security without sacrificing visual access, air circulation or light infiltration.
Available in clear anodized or premium PowderGuard® powder coat finish and with an optional electric operator -- our rolling grilles are well-suited to most any interior environment and application.
| Product Name | Product Model | Request Drawing |
|---|---|---|
| Upward Coiling Security Grilles | Model 674 | Add Product |
Ideal Applications Include
Construction
| Product Specifications | |
|---|---|
| Operation | Manual unless size requires chain hoist |
| Curtain Material / Finish | aluminum, clear anodized |
| Curtain | Perforated aluminum panels |
| Bottom Bar | Clear anodized |
| Guide Type | Guide channels are extruded aluminum with continuous wear strips; clear anodized; Wall angles and any pack-out angles are galvanized steel |
| Mounting | Interior face of wall is standard Between jamb options available |
| Brackets | Steel with black powdercoat finish |
| Pipe | Steel sized for maximum deflection of .03” per linear foot |
| Springs | Oil tempered, 20,000 cycle, torsion springs |
| Locking | Center locking bottom bar, with 1/2” diameter steel throw rods; Comes standard with cylinder locks on both sides or thumb turn on secured side |
Warranty
- 12 month limited
High-Performance, Low Maintenance
These security grilles are built for long-lasting, trouble-free performance. The counterbalance assembly features heavy-duty helical torsion springs in a steel tube or pipe barrel to provide long and reliable service. Guides feature continuous wear strips for ease of operation and noise reduction. Surfaces are factory pre-finished to minimize field preparation and enhance the finish’s durability. Optional crank or electric motor further simplifies grille operation. An optional heavy usage package provides extended life in applications requiring higher-duty cycles, such as parking garages and service access gates.
Optional Electric Operation
These security grilles are available with an electric operator to provide automatic passage for a variety of commercial and industrial uses, including schools, hospitals, libraries, public access buildings and parking garages. Our commercial operators are designed to work with the Model 670 to ensure precise, smooth and safe operation for years to come. These operators are available with a variety of safety and actuator options that make these grilles suitable for nearly any commercial or retail application. These options include:
- Entrapment protection, including an electric or pneumatic sensing edge or photoelectric sensors
- Push-button, key or combination stations; surface or flush-mounted for interior or exterior locations
- Vehicle detectors, key card readers, photocell and door timer controls
- Treadle or pull-switch stations
- Telephone entry and coded keyboard stations
- Universal programmable door timer
- Radio control systems (24 VAC or 120 VAC)
Powder Coat Color Options
PowderGuard® Premium powder coat options are available in approximately 200 colors as well as custom matching to specification.
Door Options
- Operation: Electric operator, chain hoist, removable awning crank
- Monitored Light Curtain (3' or 6' option)
- Controls: Time clock, card reader, keypad access
- Hood: Primed galvanized or stainless steel, mill finished or clear anodized aluminum
- Fascia and back hoods: aluminum, stainless steel
- Steel guides
- PowderGuard® premium powder coat paint finish in approximately 200 colors, or color-matched to specification available on hood, curtain, guides, headplates
- PowderGuard® Zinc and PowderGuard® Weathered finishes
- Locking options include cylinder locks, interlocks
