CDX® Commercial Door Operator Light Duty

CDX® Commercial Door Operator Light Duty

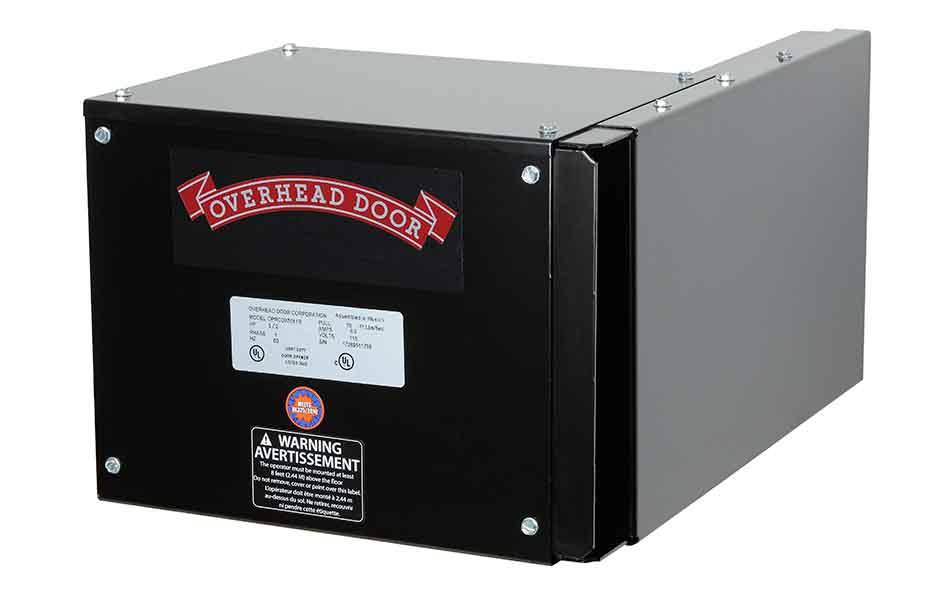

​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​The CDX® commercial door operator is UL 3​25 listed and provides durable and reliable operation. This light duty door operator is designed for use on counter and counter fire door applications. Common applications include factories, schools, concessions, hospitals, cafeterias and retail settings.
Product Specifications

MountingFront of hood (chain/sprocket coupling to door). Includes built-in guarding that prevents access to drive chain allowing CDX to be mounted less than 8 ft off of floor. ​​​​​
Motor1/2 horsepower, 115V AC single phase motor with high start torque, intermittent-duty, NEMA 42 frame open drip-proof construction, instant reversing with automatic reset thermal overload​​​​
Drive reductionHelical gear primary reduction and hardened bevel gear secondary reduction
Power trainOil impregnated bushing to ensure long life
Cycles per hourOperator tested and approved by UL for 5 cycles per hour at rated load of 70 ft-lbs/sec
Display16-character LCD display provides easy-to-read set-up and diagnostics with backlight for low-light conditions
Limit systemAdjustable linear type; remains synchronized with door during release operation
Cycle counterDisplays total cycles logged over the operator's lifetime to support warranty and service functions
Independent timersAutomatic maximum run timer stops the close function if present run time is exceeded, allowing for inspection
Control systemOn-board Open, Close and Stop buttons make set-up and testing simple, saving time during installation
Control buttonsCalibration Mode/Run Mode, Backlight, Scroll Up/Down, Set/Clear​
WarrantyTwo year or 20,000 cycle limited warranty​​​​
Options
​​Models
Counter Door
Counter Fire Door
Radio hookupsOption available for fast, simple radio frequency connectivity to enable remote door operation

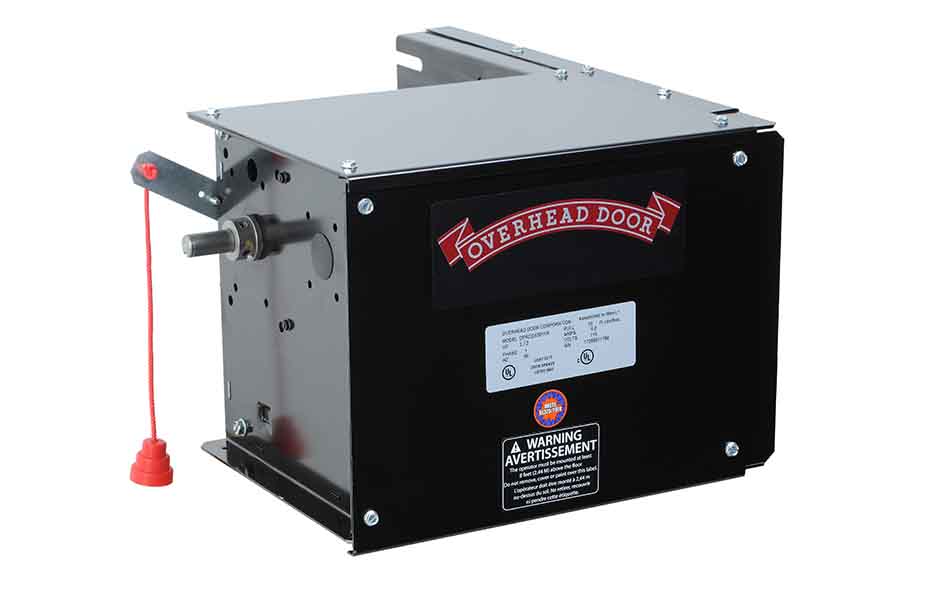

Hand crankOptional on standard counter door; comes with electrical interlock
GovernorOption available on Counter Fire Door only. Centrifugal drum type governor built into operator to control drop speed without disconnection from door
ReleaseOption available on Counter Fire Door only. Spring-loaded for automatic release of door by optional fuse link, Fire Sentinel® or similar fire detection system​
