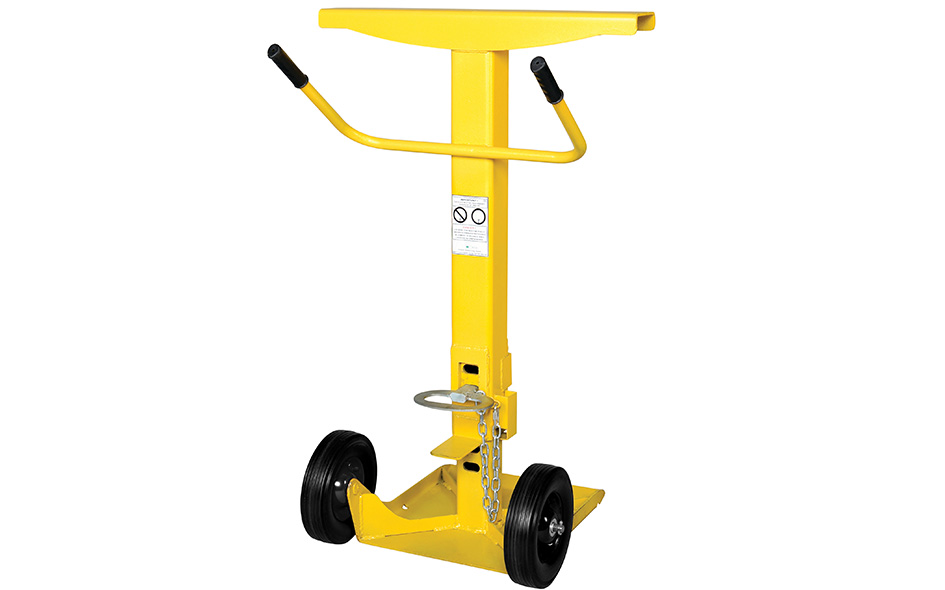

Trailer Stands

Standard and premium trailer stands are self-leveling, easy-to-deploy stabilizing stands designed for high-traffic loading docks. Featuring gas-shock systems, large all-terrain wheels, and secure locking pins, they enhance safety and efficiency.

FEATURE	Standard Model 850343.0001	Premium Model 850343.0002
Static Load Capacity	Up to 100,000 lbs. (45,359 kg)
Large, weight-distributing base	17” x 18 1/2” (432 x 470 mm)
Large trailer-contact pad	5” x 30” x 1/4”   (127 x 762 x 6 mm)	Reinforced  5” x 30” x 1/4”  (127 x 762 x 6 mm)
Wheels/tires	10” (254 mm) diameter wheels	16” (406 mm) diameter solid rubber tires
Gas-shock, self-leveling system	With security pin	With lever locking mechanism
Warranty	1-year limited warranty
Working Range	42-1/2” to 52-1/2”   (1079 mm to 1334 mm)	38″ to 48″   (965 mm to 1219 mm)

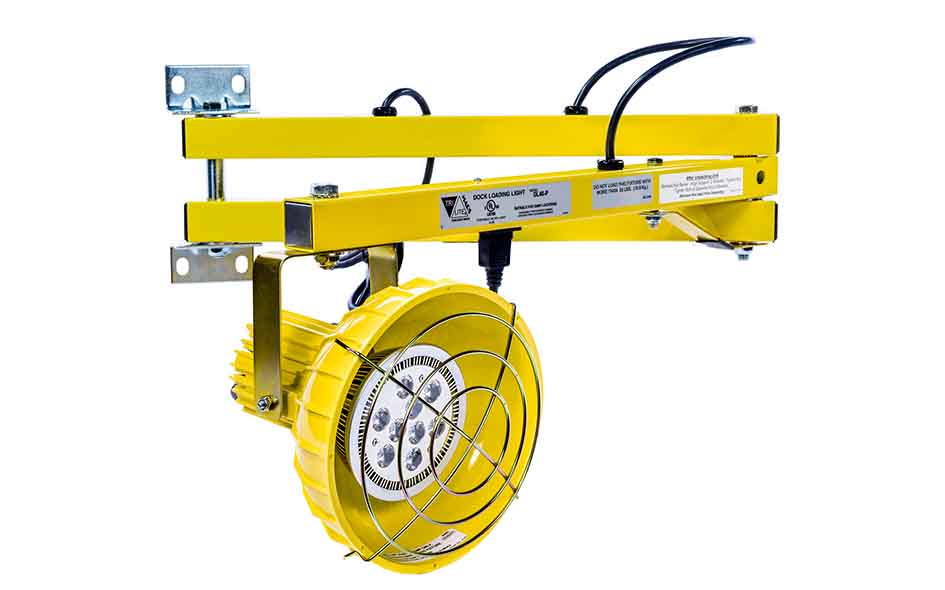

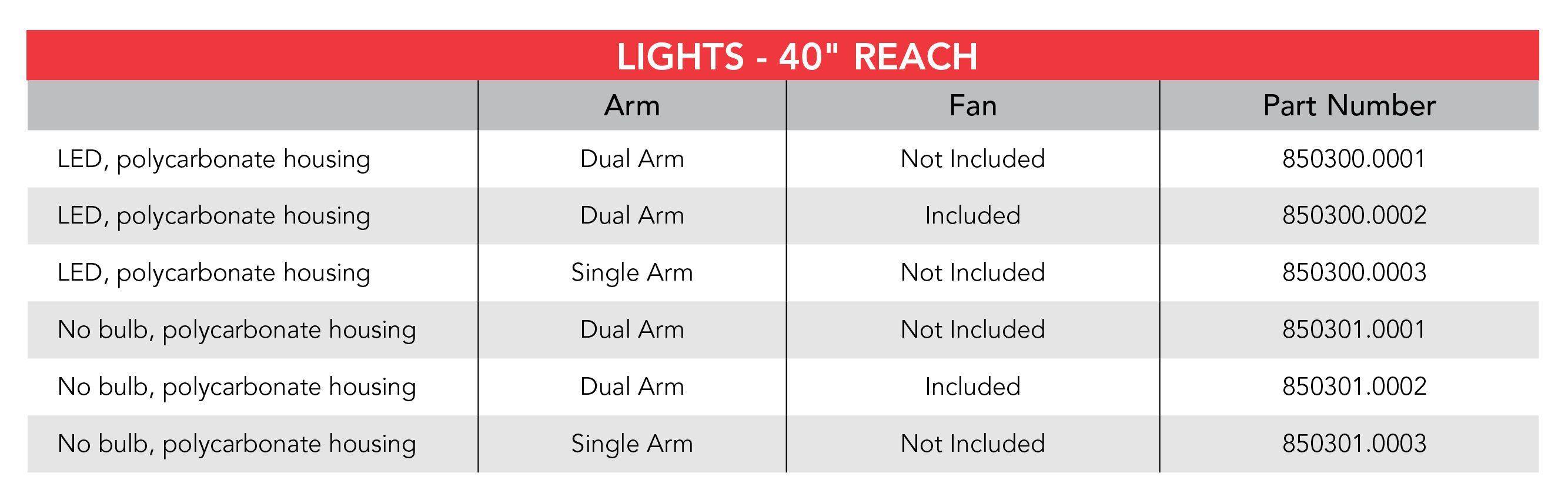

Lights

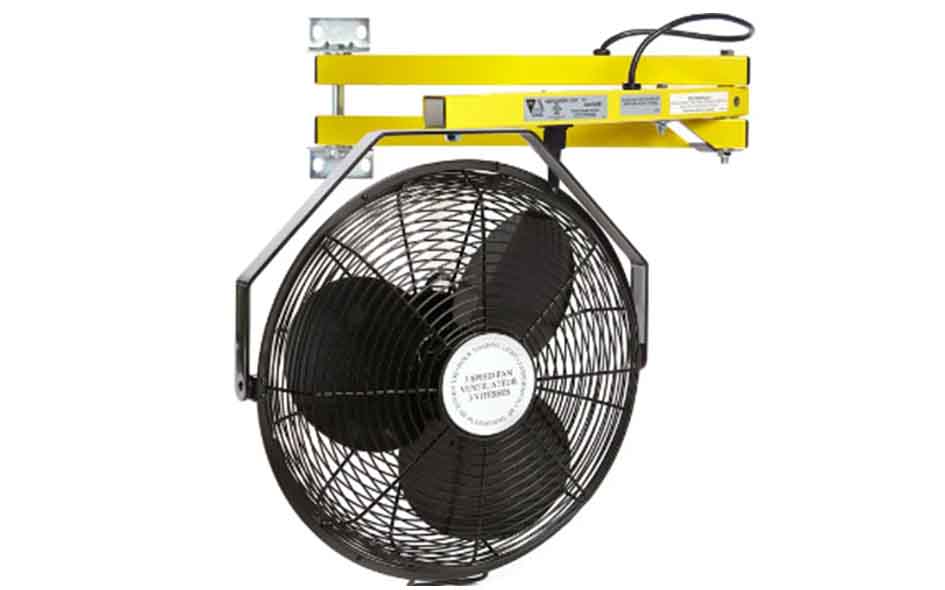

Increase safety at the loading dock with dock lights that provide energy efficient illumination the inside the trailer. Movable arms have a 40" reach and position the lights as needed or completely out of the way. The rugged polycarbonate housing and electric components of these lights are designed to withstand impacts and the rigors of the loading dock. Choice of the sturdy dual arm or single arm for vertical and horizontal adjustability. Add a fan to help keep workers comfortable when it's warm.

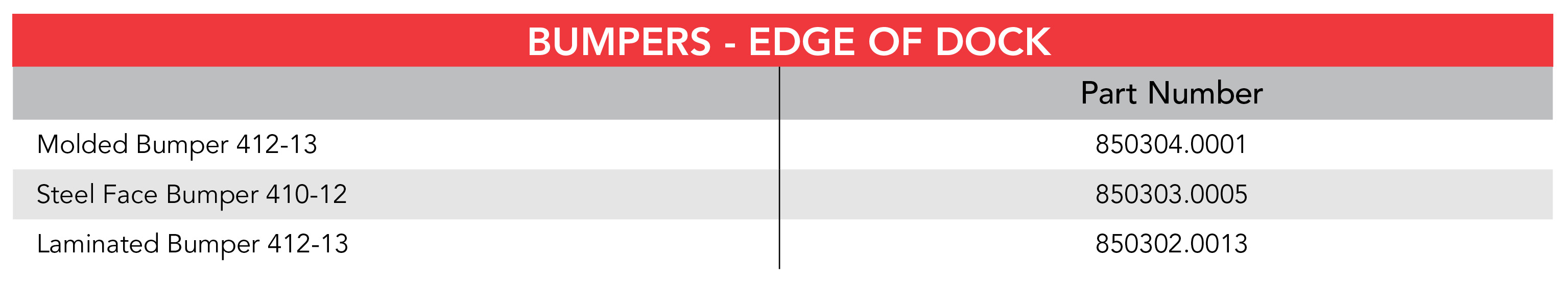

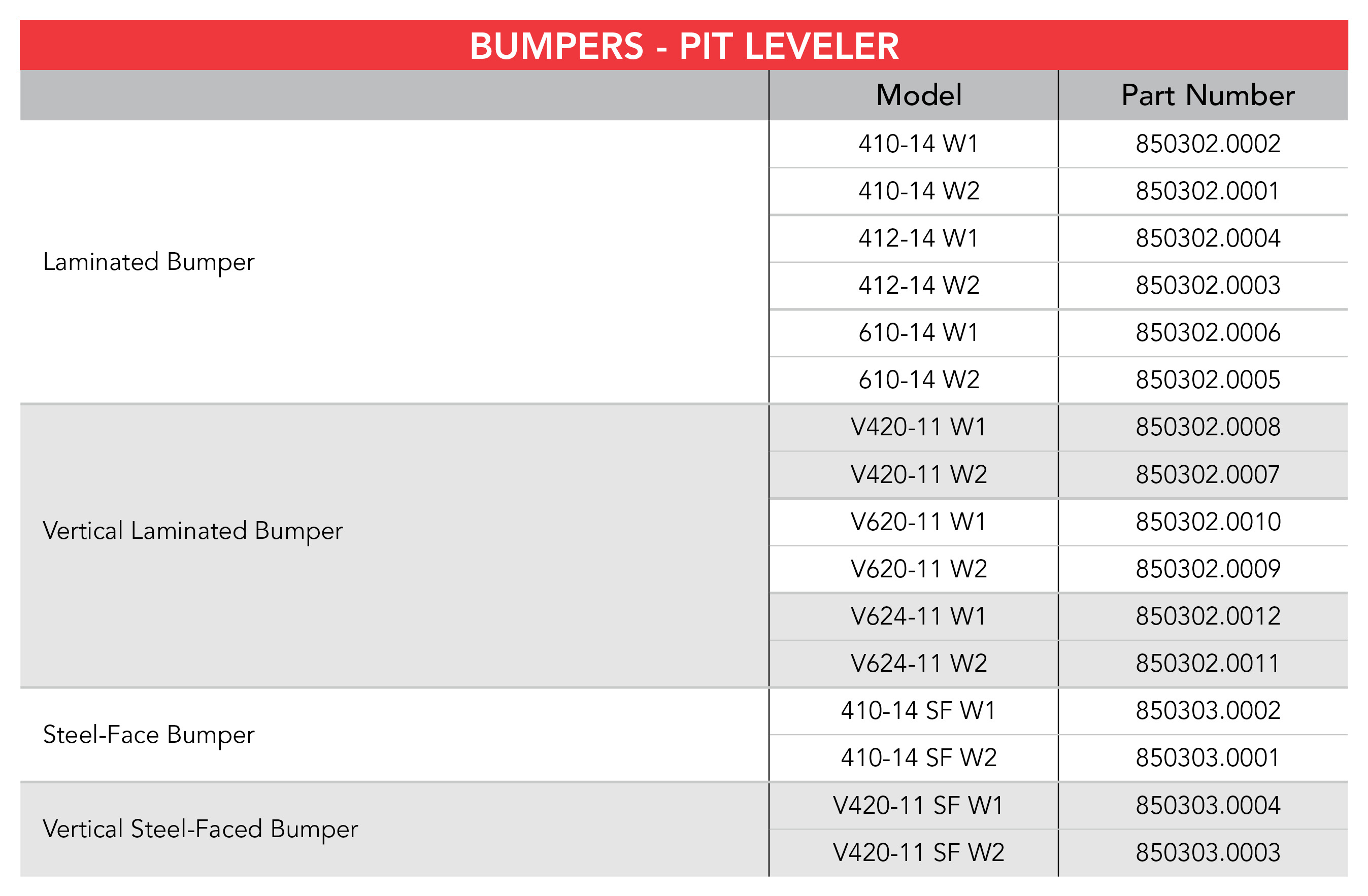

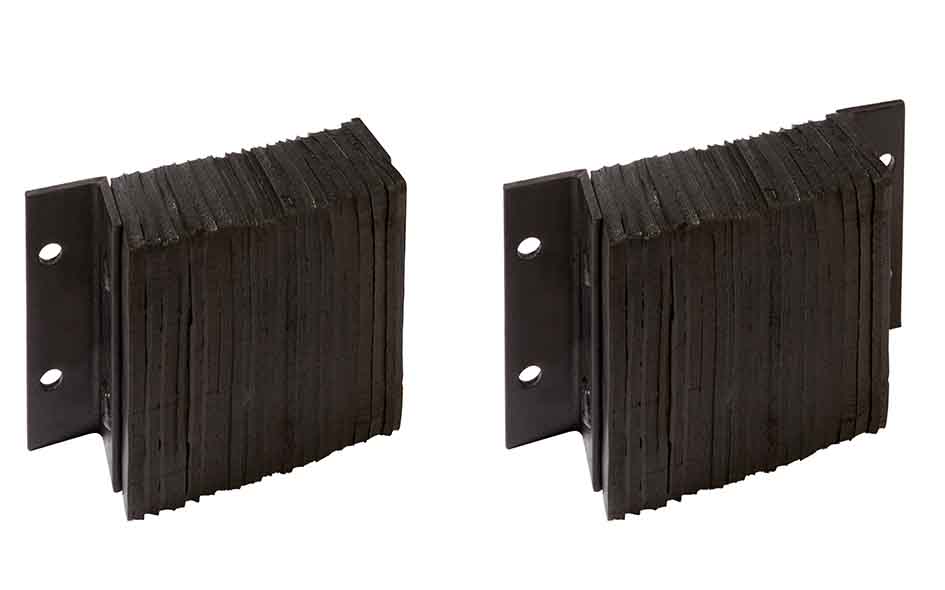

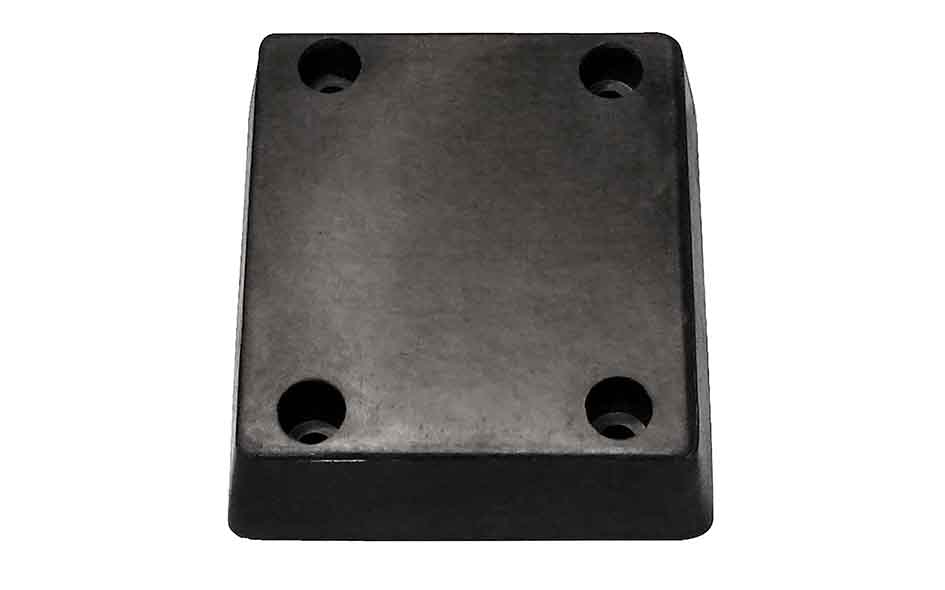

Bumpers - Mechanical Pit Leveler & Edge of Dock

Laminated bumpers protect your dock using recycled ply-type truck tire sections secured with 3/4" steel bar. Constructed with heavy duty 3/8" steel angles at the anchoring location to dock. Select from a range of dimensions and vertical styles to accommodate your application. Steel faced bumpers provide more impact and abrasion protection with a 3/8" steel face.

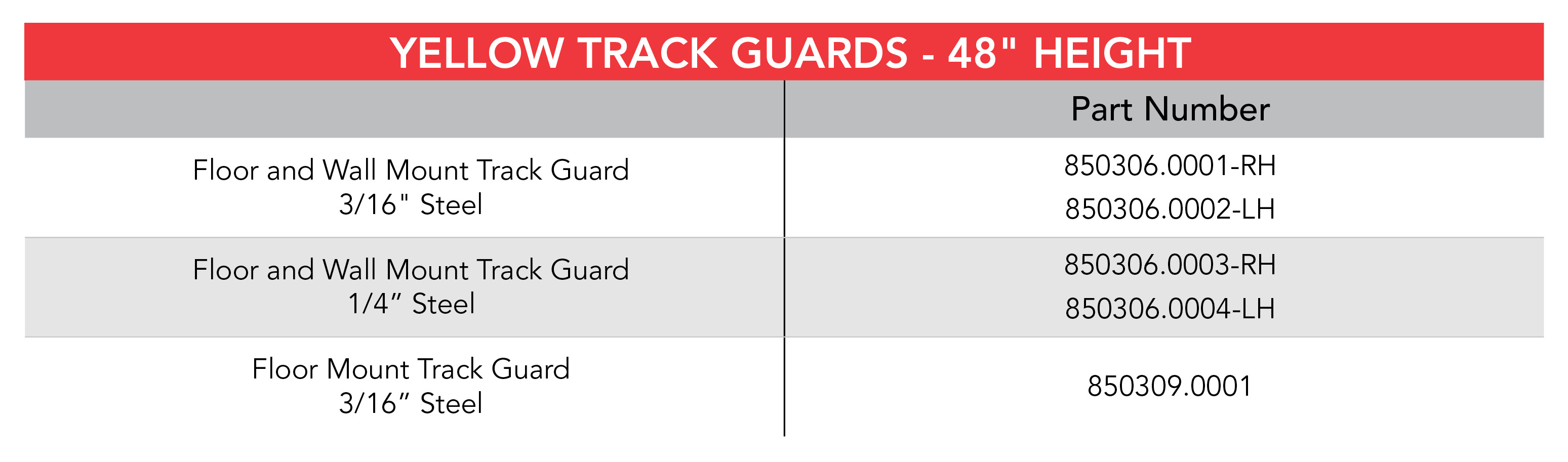

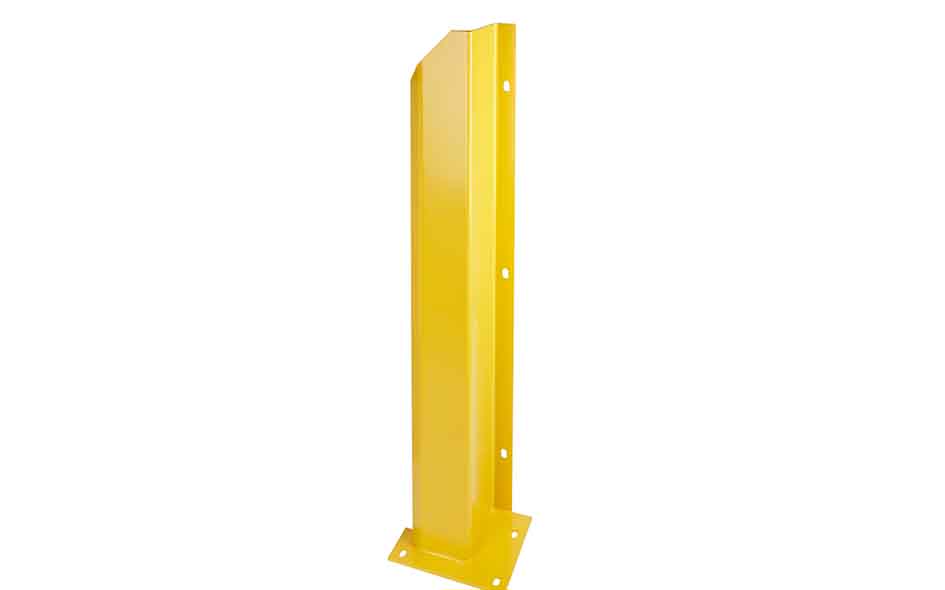

Track Guards

Colored in safety yellow for visibility, these 48" tall track guards are designed to protect door tracks from impacts by forklift and pallet movers without interfering with the door operation. Choice of 3/16" or 1/4" steel construction with floor and wall mounting. Top taper helps reduce hand pinching. Also available in a floor-only mount style.

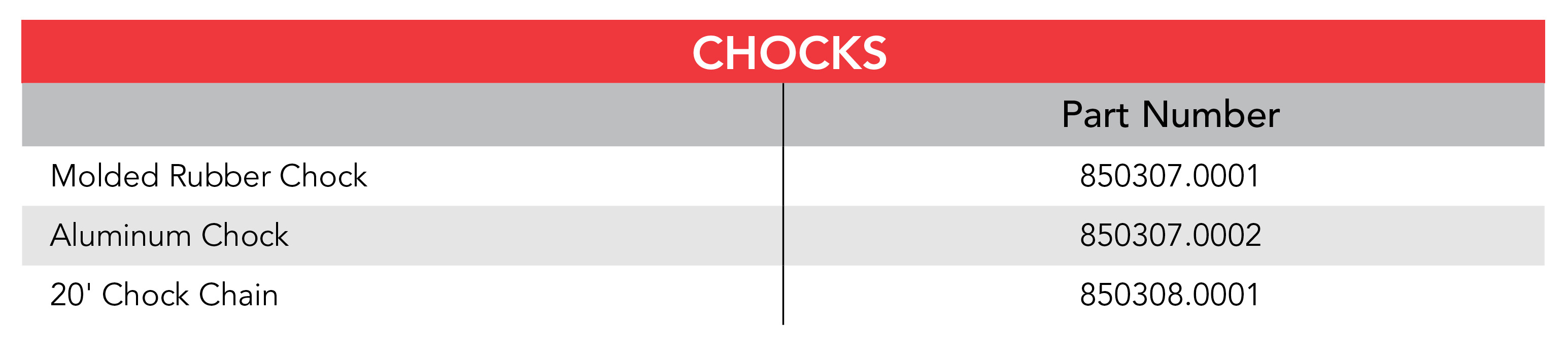

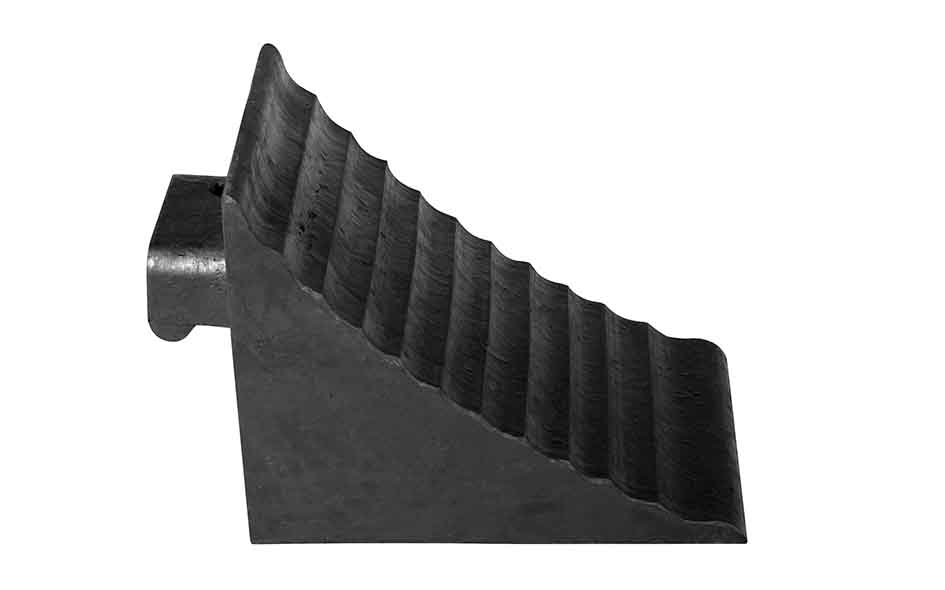

Chocks

For the best protection, use 2 chocks per loading dock position and fit snuggly under the tires for holding power. Molded chock (7" x 9" x 7") is constructed of solid, durable rubber for stability and long life. The aluminum chock (7" x 11" x 8") has a claw-like bottom to grip a variety of surface conditions. The heavy duty, zinc plated chain resists corrosion and attaches to the chock to discourage chock misplacement.
