Fixed Dock Shelter TX40R
Fixed Dock Shelter TX40R

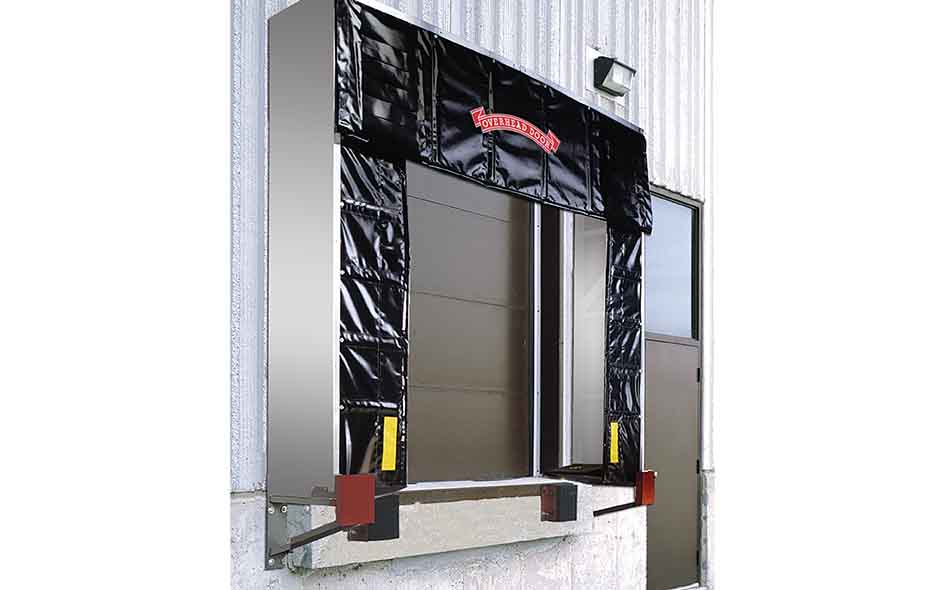

This shelter has flexible vertical panels and a curtain to serve a wide variety of trailers with different widths and heights, while still providing weather protection to save on heating/cooling costs. It provides full width and height access to the back of the trailer.
Overhead Door™ Tech Support: 1-800-929-4692
Construction Advantages
The side and top panels are covered with galvanized steel panels and trimmed with aluminum angle for a clean, durable finish. Both upper corners of the shelter have overlapping wear pleats for added protection from trailer impacts and tearing. The top panel is peaked to drain water.
- A foam bead is sewn into the leading edge of the vertical front panels and top panel
- Vertical panels are double layered fabric at the leading edge of the impact area
- The fabric is double stitched with high strength polyester thread that has been UV treated for improved durability
- Fiberglass stays are encased in multi-layer pockets and provide the vertical panels with strength (Top stays are “Z” style to keep the curtain straight)
Fabric Advantages
- Made of fire resistant fabric and available in multiple weights including a premium 40 oz fabric that has six times more abrasion resistance than standard fabric
- For the most punishing applications, optional premium plus fabric is recommended.
- It is similar to the belts used on heavy duty, industrial conveyors. It provides elevated resistance to UV, fire, abrasion, tearing, rot, stains, salts, and oils
- All fabrics are treated with UV protection to help reduce fading
Foam Dock Shelter Line Drawing
Construction
| TREATED LUMBER FRAME | GALVANIZED STEEL FRAME |
|---|---|
| TL-24: 24" Projection | GS-24: 24" Projection |
| TL-36: 36" Projection | GS-36: 36" Projection |
| TL-48: 48" Projection | GS-48: 48" Projection |
| TL-60: 60" Projection | GS-60: 60" Projection |
| DIMENSIONS | STANDARD | OPTIONAL |
|---|---|---|
| 11'6" Wide, 11' High, 21"Vertical Panel Inward Projection | ✓ | |
| Add Width (12' 8" Max.) | ✓ | |
| Add Height (12' 6" Max.) | ✓ | |
| Vertical Panel Inward Projection (18"- 35") | ✓ | |
| CURTAIN | ||
| 36" Curtain Drop | ✓ | |
| Add Curtain Drop 1" Increments (60" Max.) | ✓ | |
| FABRIC WEIGHT & COLOR | ||
| 22 oz (Black, Blue, Gray, Green, Brown) | ✓ | |
| 40 oz Regular (Black, Blue, Gray, Green, Red, Brown) | ✓ | |
| 40 oz Premium (Black) | ✓ | |
| 4Premium Plus Fabric (Black) | ✓ | |
| DRAFT CONTROL | ||
| 2 Draft Pads (Same fabric weight/color available as above) | ✓ | |
| BUMPERS (PROTECTIVE STEEL GUARDS) | ||
| 2 Steel Bumpers (Hardware not included) | ✓ | |
| GUIDE STRIPES | ||
| 14" High | ✓ | |
| Full Height | ✓ | |
| MOUNTING | ||
| Galvanized Mounting Hardware and Stabilizing Bracket | ✓ | |
| VERTICAL PANELS | ||
| * Vertical panels with fiberglass stays | ✓ | |
| * Vertical panels with trailer door hinge gap seal | ✓ | |
| ** Vertical panels with premium trailer door hinge gap seal | ✓ |
* Available with all 22 oz and 40 oz fabric and color options
** Available with premium plus fabric only
