Residential Vehicular Slide Gate Operator RRSL24V
Residential Vehicular Slide Gate Operator RRSL24V

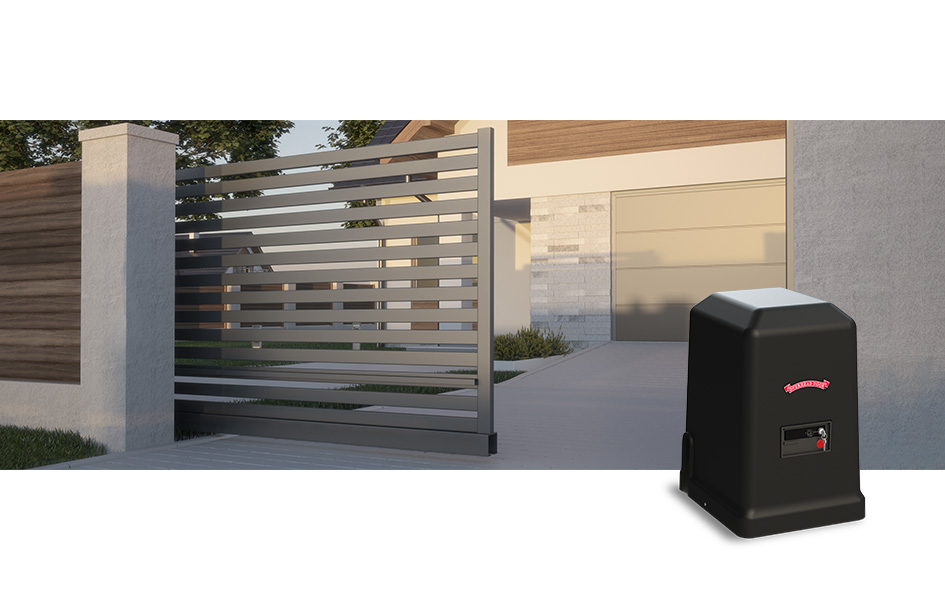

The model RRSL24V slide gate operator is designed for residential slide gates that have up to a 120 cycle/day duty requirement. Advanced controls and simplified LCD interface makes install and service fast and easy.
Standard Features
- Dual line backlit LCD display
- Adjustable speed
- Advanced 315/390Mhz radio receiver stores up to 250 CodeDodger® transmitters with unique IDs
- OHD Anywhere® ready (with optional Wi-Fi board)
- Timer to close
- Battery backup
- Up to 150 cycles on fully charged batteries
- On-board solar charge controller
- Surge protection on field wiring inputs
- Four monitored safety inputs
- Two auxiliary relays, configurable from LCD
- Built-in 7-day timer
- Primary/secondary control for dual gates
Specifications
- 115VAC, field adjustable to 230VAC
- Duty Cycle 50% with up to 120 cycles per day
- Rated for use on gates up to 25 ft long and 850 lbs
- -20° to +60°C (-40° to +60°C with optional heater)
- (2) 7Ah batteries included
- 3 Year warranty
- UL 325 Listed, Class I, II
- 24VDC switched and constant accessory power, up to 800mA combined
Construction
- 24VDC Motor
- Direct drive motor to worm gear reduction
- Electro-mechanical limits stay synced through power loss
- Keyed release lever disconnects drive allowing for easy manual operation
