Residential Vehicular Swing Gate Operator RLA24V
Residential Vehicular Swing Gate Operator RLA24V

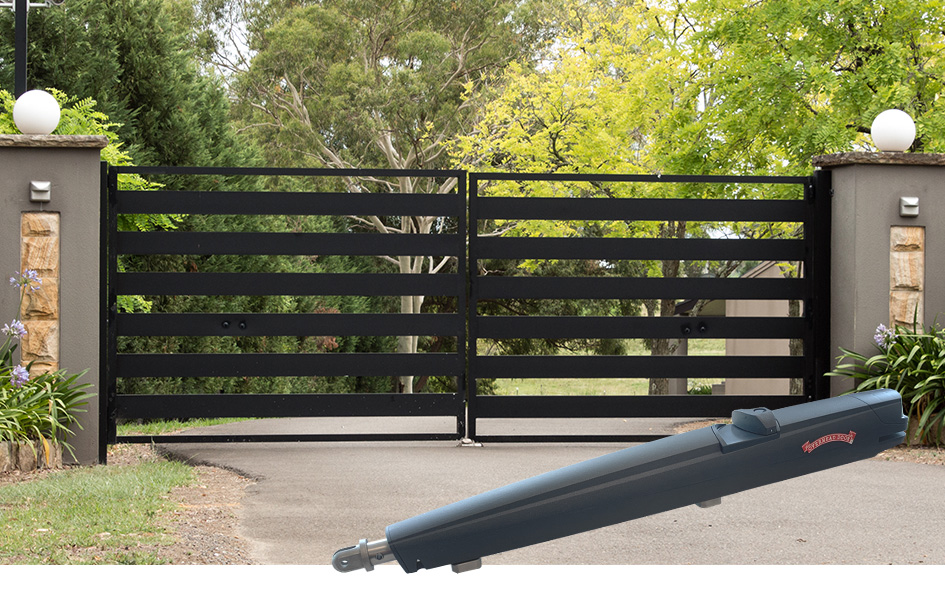

The model RLA24V linear actuator gate operator is designed for residential swing gates that have up to a 150 cycle/day duty requirement. Advanced controls and simplified LCD interface makes install and service fast and easy.
Standard Features
- Dual line backlit LCD display
- Adjustable speed
- Advanced 315/390Mhz radio receiver stores up to 250 CodeDodger® transmitters with unique IDs
- OHD Anywhere® ready (with optional Wi-Fi board)
- Timer to close
- Battery backup
- Up to 250 cycles on fully charged batteries
- On-board solar charge controller
- Surge protection on field wiring inputs
- Four monitored safety inputs
- Two auxiliary relays, configurable from LCD
- Built-in 7-day timer
- Bi-parting delay, adjustable on LCD
Specifications
- 115VAC, field adjustable to 230VAC
- Duty Cycle 50% with up to 150 cycles per day
- Rated for use on gates up to 16 ft wide or 850 lbs
- -20° to +60°C
- (2) 7Ah batteries included
- 2 Year warranty
- UL Listed, Class I, II, III
- 24VDC switched and constant accessory power, up to 800mA combined
Construction
- 24VDC Motor
- Worm gear primary reduction
- Cast aluminum upper and lower body
- Stainless steel extension tube
- Keyed release lever for manual operation
- Enclosure and controls ready for secondary arm, no additional boards needed
