Aluminum Glass Garage Doors Modern Aluminum - Models 9910 & 9920
Aluminum Glass Garage Doors Modern Aluminum - Models 9910 & 9920
A unique look for today’s more contemporary-styled homes. Crisp lines and sleek design formed from durable corrosion-resistant aluminum frames and light-filtering glass make a striking complement to your home.

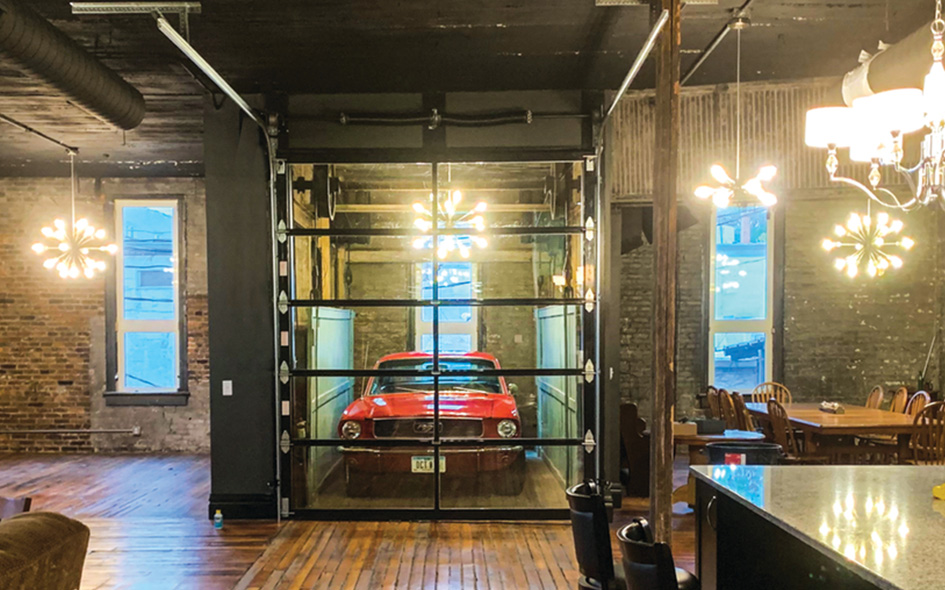

Our aluminum garage door model 9910 (511) has a standard frame featuring a narrow width and an array of frame finishes and special custom options in door sizes up to 16’.
Our aluminum garage door model 9920 (521) features a wide, heavy-duty frame and offers an array of frame finishes and special custom options in door sizes up to 26’ wide. The Model 521 also offers a joint seal between sections for additional weather resistance and can be fitted to meet wind load building requirements.
Wind Load options are available for your Aluminum garage door to add protection from high-wind speeds.
Construction
| Product Specifications | |
|---|---|
| Frames | Model 9910 (511) - Standard, narrow rails and stiles. Integrated stiffening struts. Strong, light-weight struts are included in the design of the rail assembly to enhance durability. Model 9920 (521) - Heavy duty, wide rails and stiles. Commercial-grade aluminum frame. Low-maintenance and corrosion resistant. |
| Max. width | Model 9910 (511) - 16 ft. Model 9920 (521) - 26 ft. |
| Glass Garage Door Insulation | 9920: U-factor of up to .28 |
| Integrated stiffening struts | Strong, light-weight struts are included in the design of the rail assembly to enhance durability |
| Stylish hardware | Hinges and fixtures are galvanized to maintain a contemporary look. |
| Wind Load | Our WindStorm™ wind load rated system is available on selected products to meet regulations for a variety of wind speeds, ensuring your door is built to withstand varying wind conditions, including hurricane-force winds, and meet the most stringent local building codes. Wind load is not available on model 9910 (511). |
*U-factor values are independently tested and verified per ANSI/DASMA 105.
**Overhead Door™ Brand uses a calculated door section R-value for our insulated doors.
Overhead DoorTM Brand participates in the DASMA Thermal Performance Verification Program. The program verifies the thermal performance of sectional doors. The lower the U-factor rating, the better the thermal performance.
Symbol indicates verified U-factor rating in accordance with the DASMA Thermal Performance Verification Program.
Warranty
- 1-year limited
Design flexibility
Available in a variety of vertical rail widths and horizontal stile widths to complement the style of your home.
Solid aluminum panels
Available for a unique, distinctive look.
Glass
An array of glass choices are available (both insulated and non-insulated) including: double strength, obscure, satin, laminated white, low E, tempered, tinted, clear polycarbonate, multi wall polycarbonate and clear acrylic.
Wind load Model 9910 (521)
Can be fitted to meet wind load building requirements.
-
9910 - 8ft
-
9920 - 8ft.
-
9920 - 7ft.
-
9910 - 7ft.
Anodized Finishes
-
Medium Bronze
-
Clear ((standard))
-
Light Bronze
-
Dark Bronze
Powder Coat Color Options
PowderGuard® Premium powder coat options are available in approximately 200 colors as well as custom matching to specification.
A variety of glass options are available including: clear, obscure, and satin.
-
Obscure
-
Bronze Tint
-
Double Strength DBS* (standard)
-
Green Tint
-
Satin
-
Gray Tint
-
Impacted Frosted Polycarbonate
Specialty Glass
- Laminated White - privacy
- Low E Glass* - thermal efficiency
- Tempered Glass - enhanced safety
- Tinted Glass* - color options: Green, Grey, Bronze
Glass Alternatives
Actual glass may vary from brochure photos due to fluctuations in the printing process.
Check with your Overhead Door™ Distributor to view a glass sample.
* Insulated options available
Polycarbonate Glass Window Cleaning Tips (LINK)
