​​Steel Garage Doors Model 1400, Model 1440, Model 1500, Model 1540, Model 1600

​​Steel Garage Doors Model 1400, Model 1440, Model 1500, Model 1540, Model 1600

Traditional Steel garage doors deliver the Overhead Door™ brand’s legendary performance and durability at our most affordable price. These garage doors are available with classic raised panels, wainscot-inspired design, or contemporary long panels. Two coats of baked-on polyester paint provide a low-maintenance finish that looks great, year after year.​​

These steel garage doors combine the long-lasting performance of high-quality steel with the elegance of clean lines and classic designs. Whether you want to create a subtle statement or a bolder one, our wide assortment of neutral tones will complement the architectural details of your home.

These traditional steel garage doors offer Wind Load options to protect your garage from high-wind and hurricane-like weather.

Construction

Product Specifications
Embossed wood-grain textureAdds beauty, sophistication and durability
Reinforced door constructionFor maximum strength, durability and minimal weight
Durable finishHot-dipped galvanized steel with two coats of baked-on polyester paint.
Designed with award-winning safety and technology featuresincluding pinch-resistant door panels.
Bulb-type bottom weathersealGuards against wind and rain while providing a cushion when closing the door


Warranty

Up to limited lifetime

Wind Load

Our WindStorm™ wind load rated system is available on selected products to meet regulations for a variety of wind speeds, ensuring your door is built to withstand varying wind conditions, including hurricane-force winds, and meet the most stringent local building codes.​​​​​​​​​​​​​​​​​​​​​​​​​​​​​


Thermal Performance

Models14001440150015401600
Polystyrene Insulation
U-factor*     ​.23
R-value*  7.47.4​9.8
Heavy-duty steel
Backing  VinylVinylSteel
Warranty**15-Year LimitedLimited Lifetime20-Year Limited​Limited LifetimeLimited Lifetime

*U-factor values are independently tested and verified per ANSI/DASMA 105.
**Overhead Door™ Brand uses a calculated door section R-value for our insulated doors.

DASMA

Overhead DoorTM Brand participates in the DASMA Thermal Performance Verification Program. The program verifies the thermal performance of sectional doors. The lower the U-factor rating, the better the thermal performance.

Thermal Performance Checkmark Symbol indicates verified U-factor rating in accordance with the DASMA Thermal Performance Verification Program.

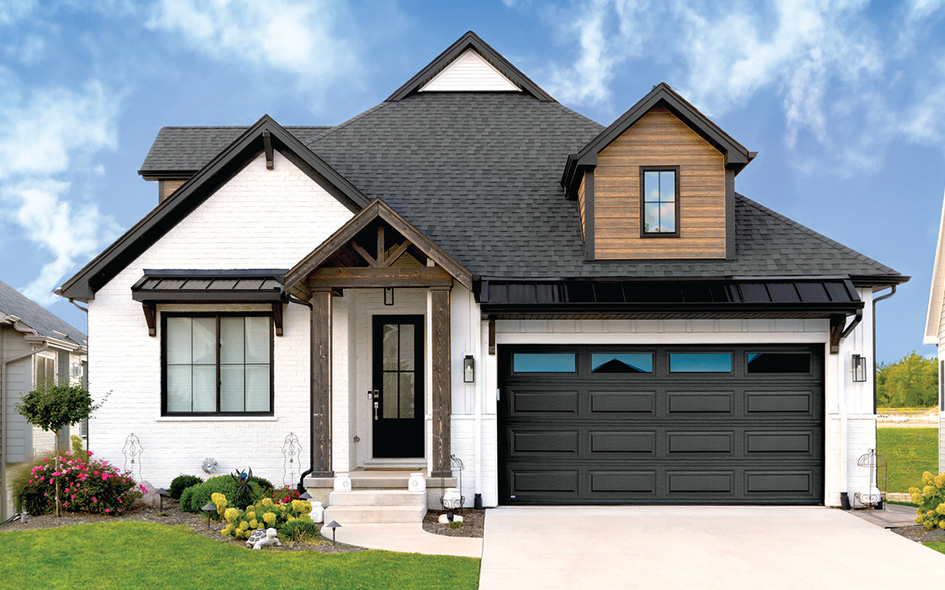

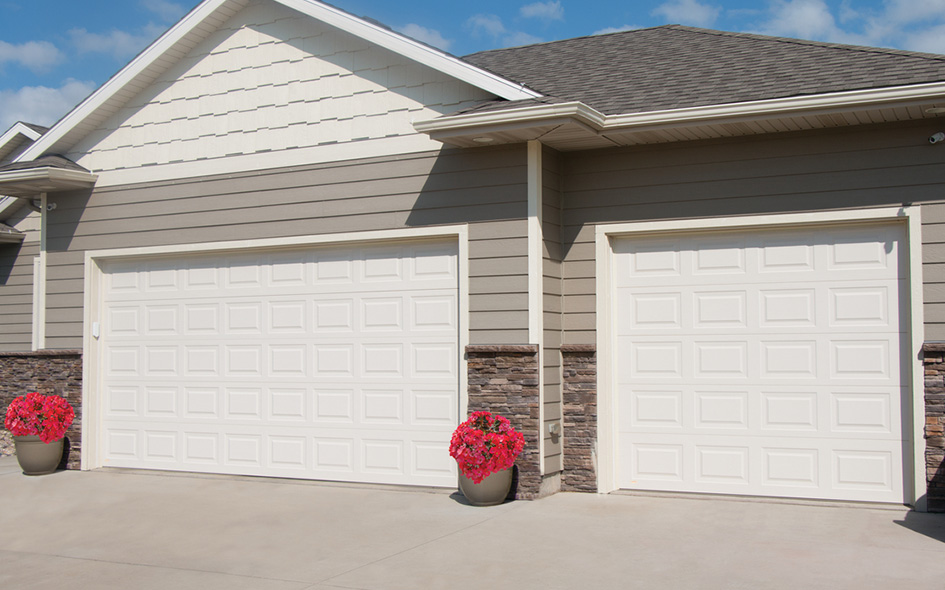

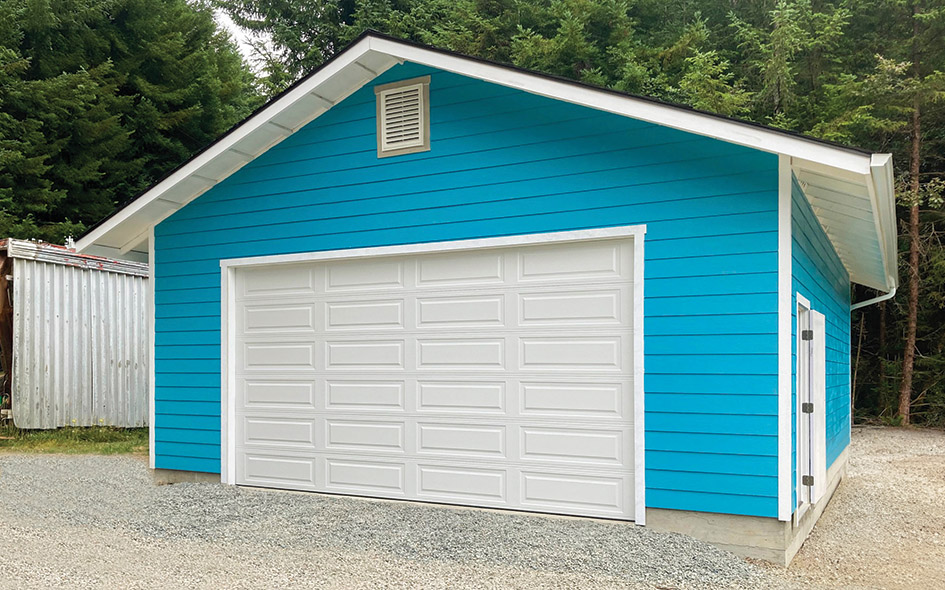

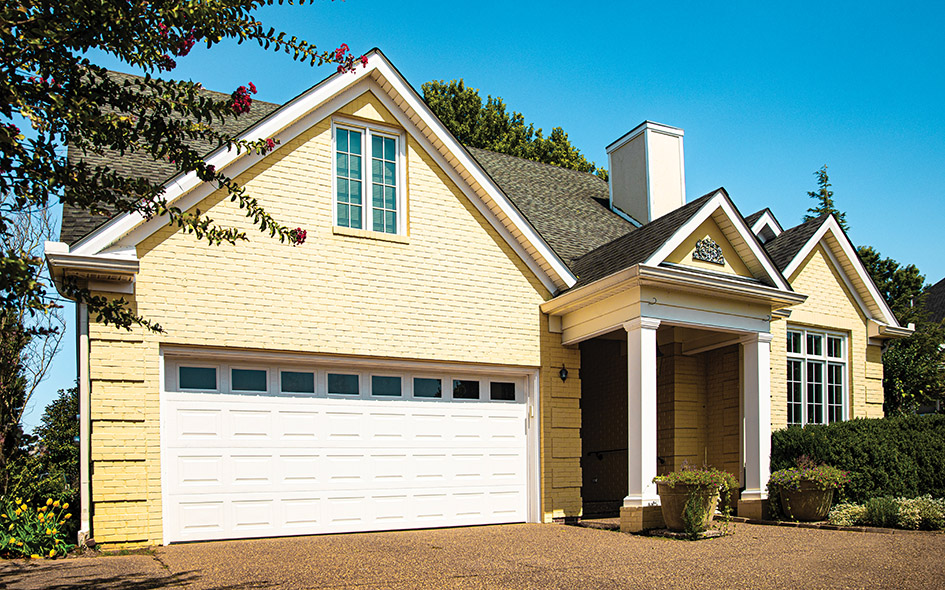

Our steel garage door Model 1400 (170/171/175) is available in the the Standard panel, Long panel and Vertical Short panel (V5) designs and features an embossed wood grain texture to enhance the appearance of your door. A 15-year limited warranty on these steel garage doors means it is built to last. A wide variety of window options are also available for these non-insulated ​steel garage doors. ​​​

​​​​

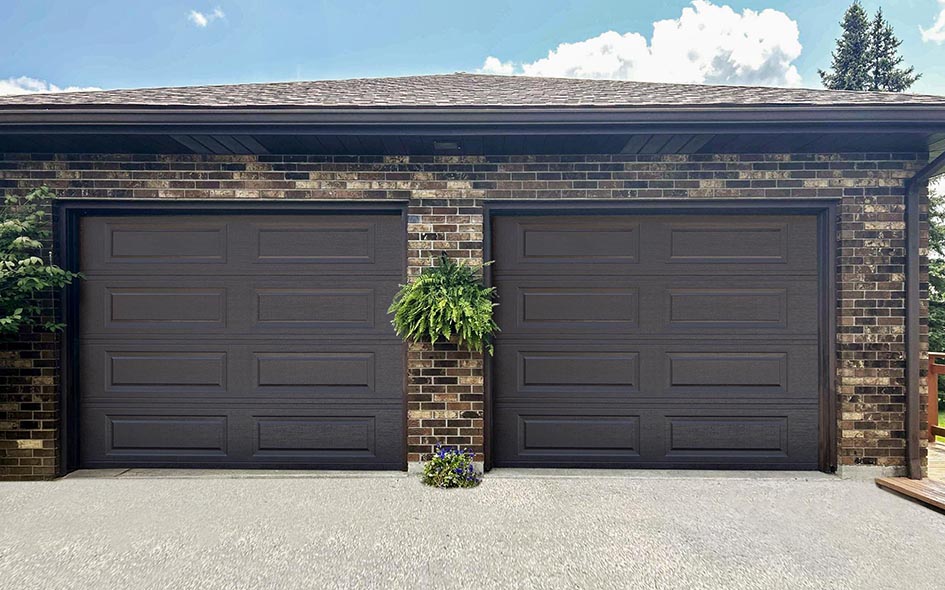

Our steel garage door Model 1440 (173/174/176) is available in the Standard panel, Long panel and Vertical Short panel (V5) designs, is constructed of heavy-duty steel and features an embossed wood grain texture to enhance the appearance of your door. A limited lifetime warranty on these steel garage doors means it is built to last. A wide variety of window options are also available for these non-insulated steel garage doors. ​​​

​​​​ ​​

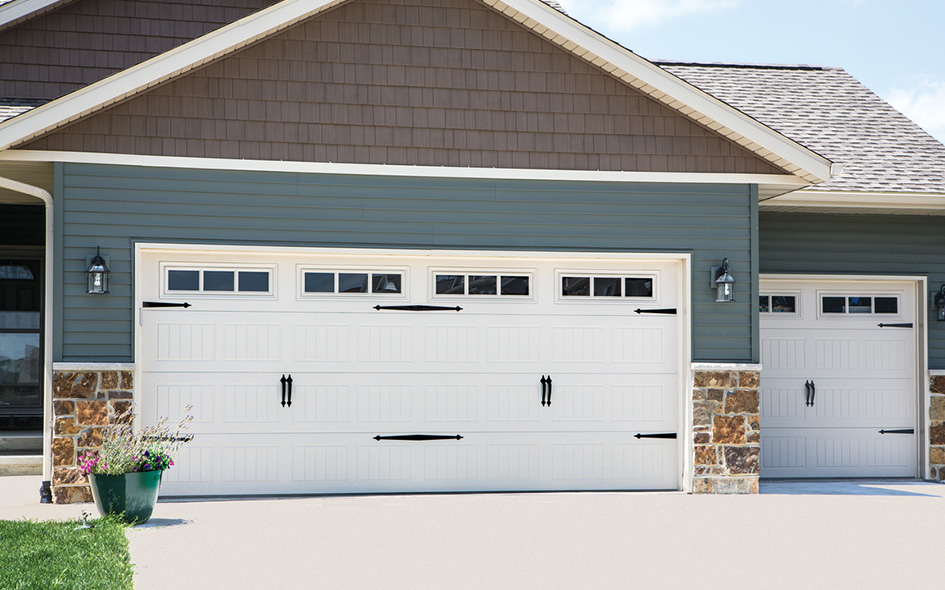

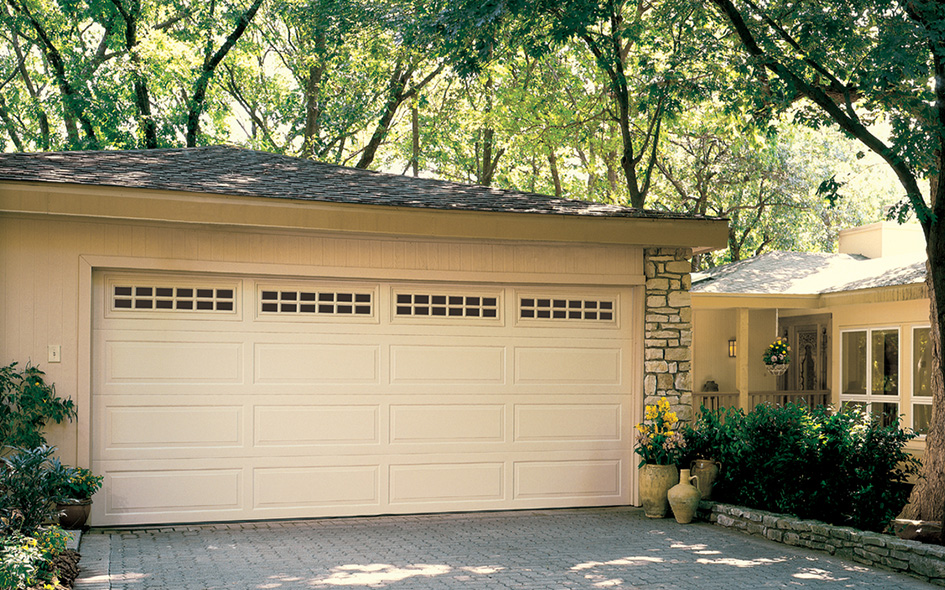

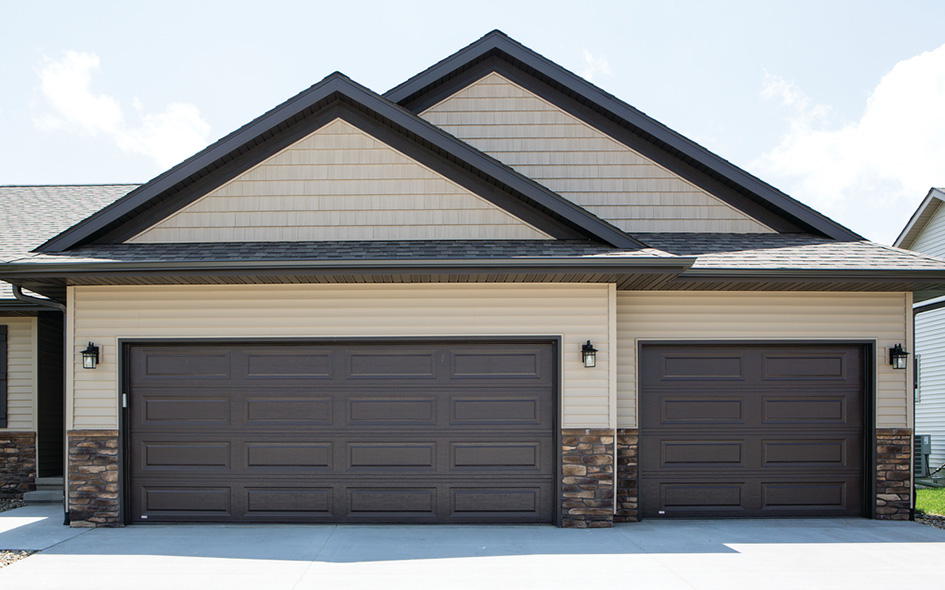

Our steel garage door Model 1500 (180/181/185) is available in the Standard panel, Long panel and Vertical Short panel (V5) designs and features an embossed wood grain texture to enhance the appearance and durability of your door. The polystyrene insulation provides a 7.4 R-value for enhanced thermal efficiency of your garage space. A vinyl interior backing of the door provides a finished appearance. Model 1500 steel garage doors come with a 20-year limited warranty which means they are built to last. A wide variety of window options are also available for these steel garage doors. ​​​

​​ ​​

Our steel garage door Model 1540 (183/184/186) is available in the Standard panel, Long panel and Vertical Short panel (V5) designs, is constructed of heavy-duty steel and features a wood grain embossment to enhance the appearance of your door. The polystyrene insulation provides a 7.4 R-value for enhanced thermal efficiency of your garage space. A vinyl interior backing of the door provides a finished appearance. Model 1540 steel garage doors come with a limited lifetime warranty which means they are built to last. A wide variety of window options are also available for these steel garage doors.​​​

​​

Our steel garage door Model 1600 (391/399) features a standard panel design or a long panel design with an embossed wood grain texture to enhance the appearance and durability of your door. The polystyrene insulation provides a U-factor of .23 (9.8 R-value) for enhanced thermal efficiency of your garage space. A steel interior backing of the door provides a durable, finished appearance. Model 1600 steel garage doors come with a limited lifetime warranty which means they are built to last. A wide variety of window options are also available for these steel garage doors.

Standard

  • seven foot standard traditional steel garage door design

    Standard - 7ft.

  • standard eight foot traditional steel panel

    Standard - 8ft.

The Standard door design option is available for Models 1400, 1440, 1500, 1540, and 1600.

Long

  • traditional steel seven foot long panel

    Long - 7ft.

  • traditional steel eight foot long panel

    Long - 8ft.

The Standard door design option is available for Models 1400, 1440, 1500, 1540, and 1600.

Vertical Short

  • traditional steel seven foot vertical short panel

    Vertical Short - 7ft.

  • traditional steel eight foot vertical short panel

    Vertical Short - 8ft.

The Standard door design option is available for Models 1400, 1440, 1500, and 1540.

The Traditional Steel garage doors are available in five standard colors or can be painted to match your home’s décor. Color selections may not be available for some models. Door overlays and window trim are available in the colors shown (additional charges may apply).

Color Options

  • Sandstone

    Sandstone*

  • Desert Tan

    Desert Tan

  • Brown

    Brown

  • White

    White

  • Almond

    Almond

  • black color swatch

    Black

Optional Wood Grain Finishes†

  • mission oak color swatch

    Mission Oak

  • walnut color swatch

    Walnut

Actual door color may vary slightly from the digital representation above. Color samples are available by request through your local Overhead Door™ Distributor.

*Called Sandstone on Model 1600

† Only available on Models 1400 and 1500

Windows available on Standard and Vertical Short (V5) panels.

  • Ashton 1

    Ashton 1

  • Williamsburg 1 4-Piece

    Williamsburg 1 (4pc)

  • Cathedral 1

    Cathedral 1

  • Williamsburg 1 8-Piece

    Williamsburg 1 (8pc)​

  • Ruston 1

    Ruston 1

  • Sherwood 1

    Sherwood 1

  • Madison 1

    Madison 1

  • Stockford 1

    Stockford 1

  • garage door window design

    Stockbridge 1 (3-lite)

  • Waterton 1

    Waterton 1

  • Winston 1

    Winston 1 (2pc)

  • Cascade 1

    Cascade 1

  • Clear Short

    Clear Short

  • Prairie 1

    Prairie 1**

  • Stockton 1

    Stockton 1 4-lite

Windows available on Long and Vertical Short (V5) panel.

(Long panel window option and trim not available on Model 1600 in Standard Panel).

  • Somerton 2

    Somerton 2*

  • Stockton 2 6-Lite

    Stockton 2 (6 lite)

  • Cathedral 2

    Cathedral 2

  • Ruston 2

    Ruston 2

  • garage door window style

    Cascade 2

  • garage door window style

    Madison 2**

  • Stockford 2

    Stockford 2*

  • Stockbridge 2 3-Lite

    Stockbridge 2 (3 lite)

  • Wyndbridge 2

    Wyndbridge 2

  • Prairie 2

    Prairie 2**

  • garage door window design

    Stockton 2 (4 lite)**

  • garage door window design

    Stockton 2 (8 lite)*

  • Sherwood 2

    Sherwood 2

  • Williamsburg 2

    Williamsburg 2 (2pc)

  • Ashton 2

    Ashton 2*

  • Clear Long

    Clear Long*

  • garage door window design

    Stockton 2 (10-Lite)

  • Waterton 2

    Waterton 2

  • Williamsburg 2 4-Piece

    Williamsburg 2 (4pc)

Windows available on Model 1600 in Long panel only:

  • Stockton 2 12-Lite

    Stockton 2 (12 lite)

  • Glass-Clear

    Clear

  • Glass - Obscure

    Obscure

  • Glass - Bronze Tint

    Bronze

All decorative trim windows come standard with double strength glass in Clear.

​​​​​​Optional glass types are also offered including:

  • Solar Bronze - UV Protection (Model 1600 Standard panel only)
  • High Velocity Impact Glass - Security Option (Not available on Model 1600 in Long panel)
  • Insulated Glass - Thermal Efficiency (Model 1600 in Standard panel only)
  • Obscure Glass - Light filtration with added security
