The WindStorm™ Collection Models 5745/5765 are thermally efficient garage doors constructed of polyurethane insulation. Series 5745 (Models 901-905) features a U-factor of .15 (R-value of 12.12) and Series 5765 (Models 906-909) features an U-factor of .12 (R-value of 16.22). Offered in a variety of colors, including bi-directional wood grain colors, this collection adds beauty to your home while meeting stringent building codes and agency requirements.
Premium insulated garage doors designed to protect your family against hurricanes, high wind damage, pressure changes and wind-borne debris.
Learn more about our new Artisan Wood Grain™ finish options!
Construction
| Product Specifications | |
|---|---|
| Wind Load | Stringently tested to meet wind load requirements |
| Impact Resistent | |
| Reinforced hardware throughout the door | |
| Designed to meet local building codes | when ordered with proper wind load options – including Miami-Dade County. |
| WindStorm™ Construction | Provides a continuous layer of foamed-in-place, CFC-free polyurethane insulation sandwiched between two layers of corrosion-resistant steel, for maximum thermal efficiency |
| Polyurethane insulation | Models 5745 (901-905): U-factor* of .15(R-value** 12.12) Models 5765 (906-909): U-factor* of .12(R-value** 16.22) |
| Strong, sturdy doors | Models 5745 (901-905): 1 3/8" thick Models 5765 (906-909): 1 7/8" thick |
| Embossed wood-grain texture | Adds beauty, sophistication and durability |
| Steel backing | For clean, finished interior appearance |
| Durable finish | Hot-dipped galvanized steel with two coats of baked-on polyester paint |
| In-between section seals | Seals provide superior resistance to the elements |
| Bulb-type bottom weatherseal | Guards against wind and rain while providing a cushion when closing the door |
| Residential garage door and opener system limited warranty | (when purchased together) - features 3 year on components (see warranty for details) |
*U-factor values are independently tested and verified per ANSI/DASMA 105.
**Overhead Door™ Brand uses a calculated door section R-value for our insulated doors.
Wind load
Our WindStorm™ wind load rated system is available on selected products to meet regulations for a variety of wind speeds, ensuring your door is built to withstand varying wind conditions, including hurricane-force winds, and meet the most stringent local building codes. See other wind load garage doors.
Overhead DoorTM Brand participates in the DASMA Thermal Performance Verification Program. The program verifies the thermal performance of sectional doors. The lower the U-factor rating, the better the thermal performance.
Symbol indicates verified U-factor rating in accordance with the DASMA Thermal Performance Verification Program.
Warranty
- Limited lifetime warranty on door.
-
White
-
Almond
-
Sandstone
-
Brown
-
Terra Bronze
-

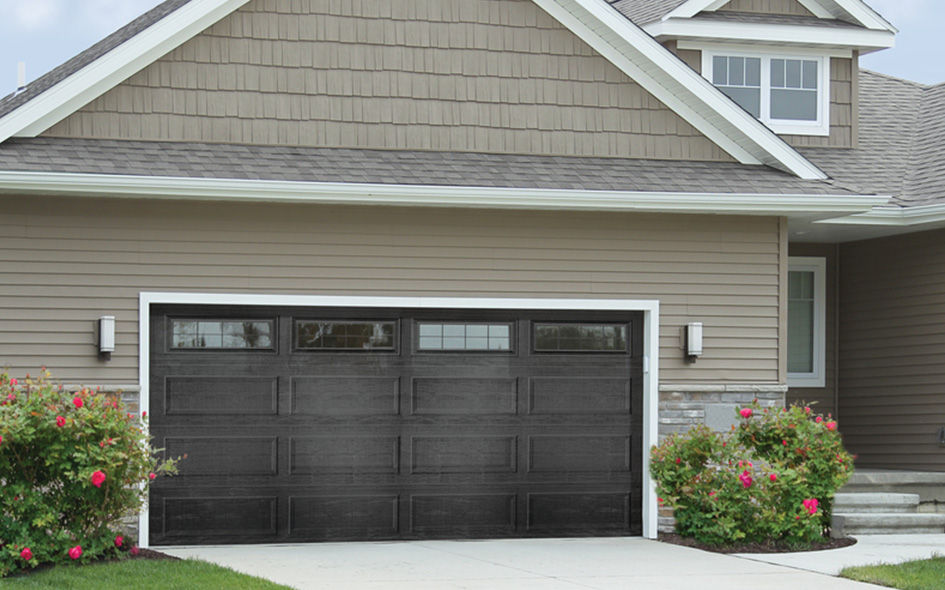

Black (Model 5745 only)
Artisan Wood Grain™ Plank Finishes
(Only Available In Model 5745)
-
Beachwood Plank
-
Cedar Plank
-

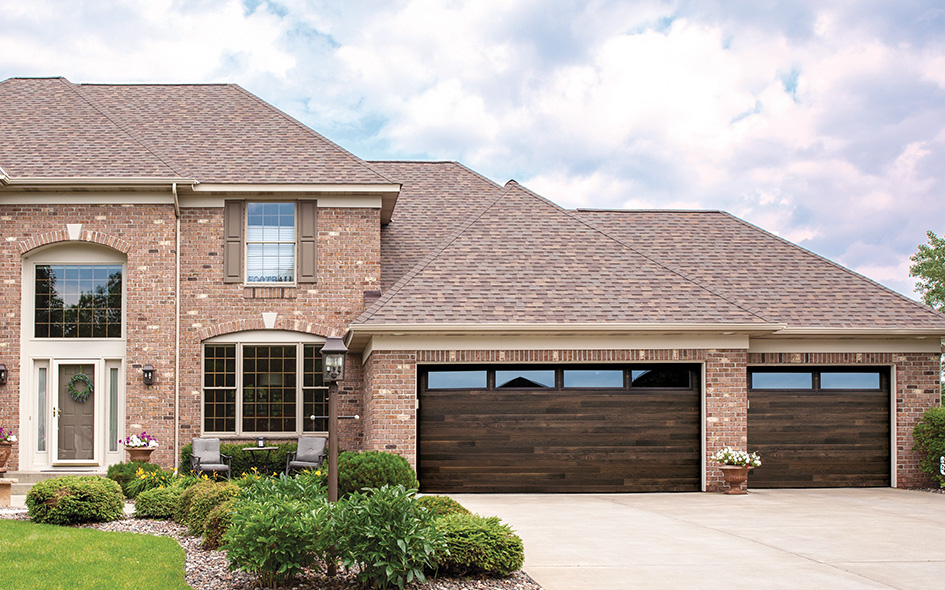

Medium Oak Plank
-
Carbon Oak Plank
Artisan Wood Grain™ Bi-directional Finishes
-
Western Cedar
-
Carbon Oak
-
Medium Oak
Actual door color may vary slightly from the digital representation above. Color samples are available by request through your local Overhead Door™ Distributor.
*Overhead Door does not warrant this product with black finish against warping, rubbing, or other issues associated with thermal bowing. Black finish is not recommended for areas that experience high heat and/or high UV conditions.
Artisan Wood Grain™ Bi-directional Finishes
-
Clear Long
-
Stockton Short
-
Clear Short
-
Prairie Long
-
Prairie Short*
-
Stockbridge Long (3-Lite)
-
Stockbridge Long (4-Lite*)
-
Stockton Long (4-Lite)
-
Stockton Long (6-Lite)
-
Stockton Long (8-Lite)
Artisan Wood Grain™ Plank Finishes and Paint Finishes
-
Arched Stockton
-
Prairie Short
-
Ruston Long
-
Sherwood Long
-
Sherwood Short
-
Stockbridge Long (3-Lite)
-
Stockbridge Long (4-Lite)
-
Stockford Long
-
Stockton Long (4-Lite)
-
Stockton Long (6-Lite)
-
Stockton Long (8-Lite)
-
Ashton Long
-
Stockton Long (12-Lite)
-
Stockton Short
-
Waterton Long
-
Waterton Short
-
Williamsburg Long
-
Williamsburg Short
-
Wyndbridge Long
-
Arched Stockton Long 4 pc
-
Williamsburg Long 4 pc
-
Double Narrow
-
Cascade Long
-
Cascade Short
-
Narrow
-
Cathedral Long
-
Cathedral Short
-
Clear Long
-
Clear Short
-
Prairie Long

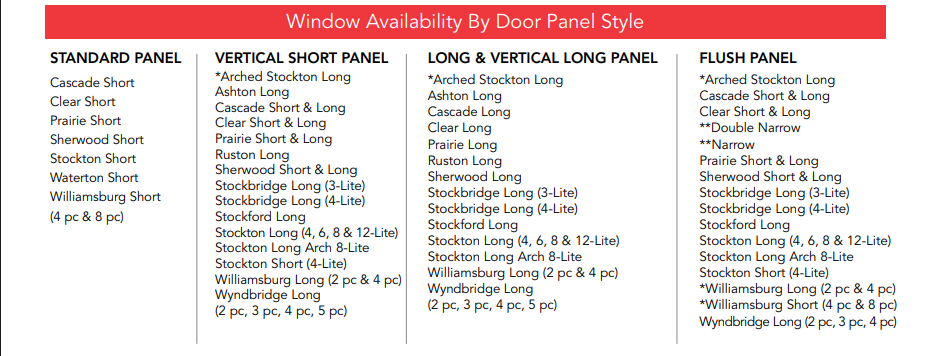

Model 5745 (Impact glazing available)
For Vertical Short panels with windows a full row of windows are required.
For Standard, Vertical Short, Vertical Long panels with windows a full row of
impact windows are required.
Model 5765 (Impact glazing not available)
For Vertical Short panels with windows a full row of windows are required.
* Available in single and double arch.
** Artisan Wood Grain™ Plank Finishes with 1/2" clear insulated or impact resistant glass.
