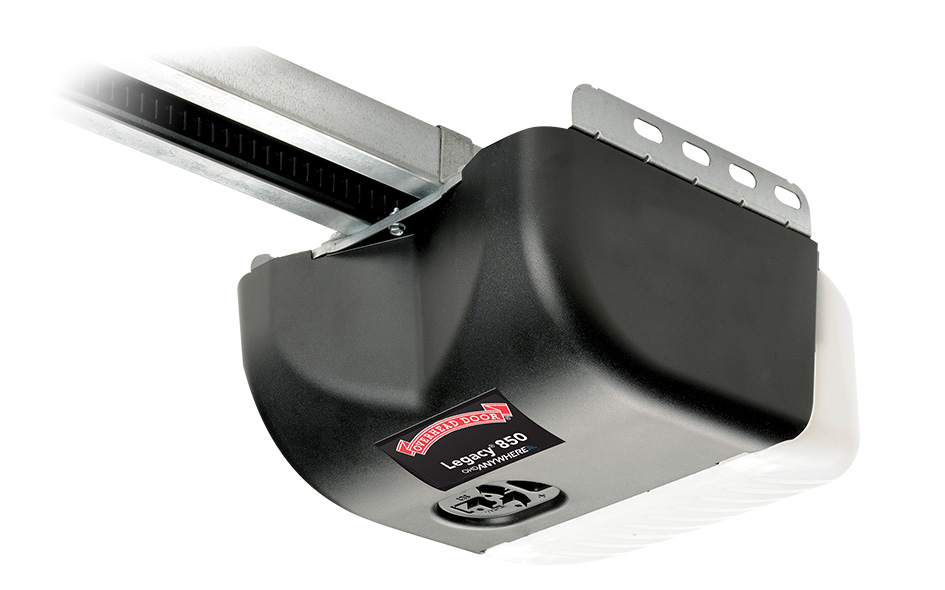

Legacy® 850 Garage Door Opener 850

Legacy® 850 Garage Door Opener 850

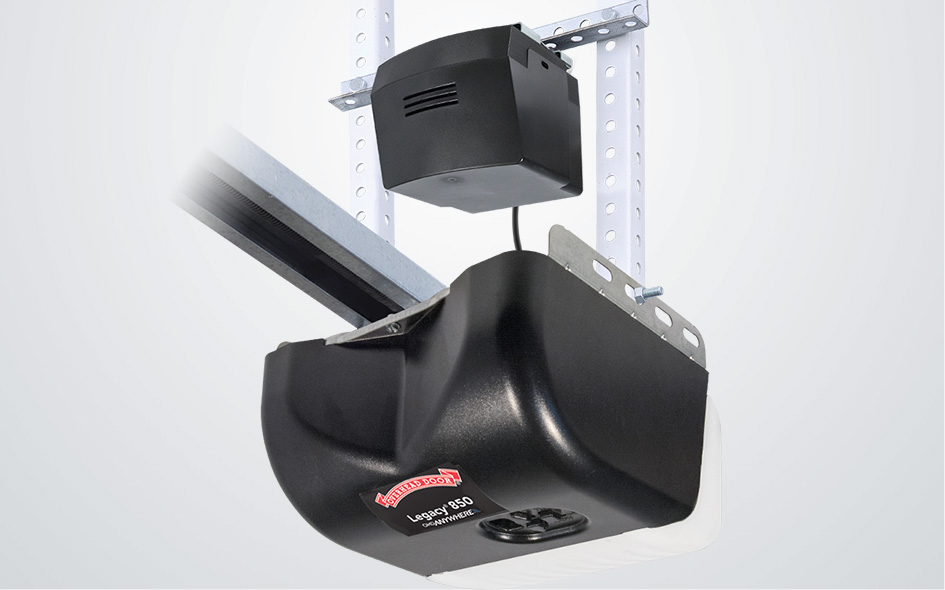

The Legacy® 850 garage door opener provides power, reliability and is available with optional OHD Anywhere®, battery backup, and integrated LED lighting. The quiet DC motor with belt or chain drive is a great choice for those looking to get value and reliability without sacrificing features. See the brochure for a full list of features, benefits and specifications.

Power, Value and Reliability

Product Specifications

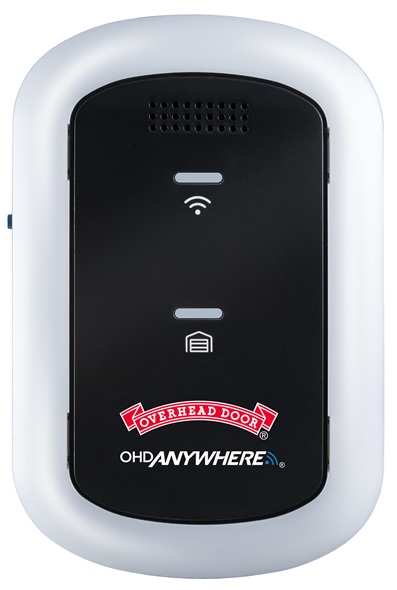

Optional Integrated OHD Anywhere®Wi-fi and smartphone control capabilities.
DC motor technology24V DC motor operates with variable speed for soft start and stop, providing smooth, quiet operation and less wear and tear on your garage door.
CodeDodger® access security systemEach time the remote control is activated, a new access code is selected from 4.3 billion possible combinations to help prevent piracy of the radio signal that opens your door.
Easy programmingQuick, effortless limit setting for faster installation.
Auto seek frequency rangeThe opener listens for both the 315 or 390 MHz frequency emitted by the remote or wireless keypad, allowing reliable operation even in areas with frequency interference.
Self-diagnostic Safe-T-Beam® SystemWhen objects pass through the infrared beam, the door automatically stops closing and then reverses.
C-channel railOperator rail designed for strength; conceals rotating belt or chain for better aesthetics.
Light systemIlluminate your garage with built-in lighting positioned toward the inside of the garage. Optional integrated LED lighting.
Automobile convenience featuresCompatible with HomeLink® and Car2U® systems. (No external repeater box or bridge needed)

HPc Power Plus designates that it exceeds Overhead Door Corporations’ lifting force specification for 1/2 horsepower garage door openers.​​​​​​

The Garage Door Opener Does NOT Run From The Wall Console.

  • Turn Sure-Lock™ OFF.
  • Check power source.
    • Plug a lamp into outlet used for powerhead. If lamp works, power source is OK.
    • If not, check fuse or circuit breaker.
  • If power is OK,
    • Check connections at powerhead terminals and at wall console.
  • Check for reversed, broken or cut wires. Staples can cut insulation and short wires. Repair or replace.

The Garage Door Opener Runs, But Door Does Not Move. The Garage Door Opener Works From Wall Console, But NOT From Remote.

  • Make sure carriage is engages with chain/belt bullet.
  • Check to make sure chain/belt in not broken or OFF its pulley.
  • Check all garage door opener remotes.
  • Replace garage door opener remote battery with a good one.
  • Program garage door remotes to powerhead.

The Garage Door Opener Remote Has Less Than 25 Feet Operating Range Or No Operation.

  • Relocate the garage door opener remote inside the car and /or point remote at the garage door.
  • Replace the battery in the garage door opener remote.
  • Reposition garage door opener antenna.
  • Eliminate possible competing signals (satellite radio, etc.)

The Garage Door Starts Down, Then STOPS And Goes Back Up.

  • If a your garage door opener is a NEW installation, check the Door Arm position.
  • Check if limits are properly set.
  • Check if the Safe-T- Beam® red LED is flashing.
  • Check the Safe-T-Beam® system for beam obstruction or misalignment of lenses.
  • Check the garage door for binding.
  • If an operational problem exists, and the garage door opener will not close, the garage door opener can be forced to close as follows: Press and hold the wall control button until door is completely closed.
    Check for interference from adjacent Safe-T-Beam® units.

The Garage Door Starts Up, But STOPS Before It Is Completely Open.

  • Check if limits are properly set.
  • Be sure the garage door, the garage door opener, and the springs are in good condition, properly lubricated and balanced.
  • Check closing, “FORCE” adjustment.
  • WARNING: If you suspect a problem with the garage door hardware or springs, use the locator to hire a local garage door service professional.
  • NEVER try to repair garage door hardware or springs yourself.

The Garage Door Will Only Run Closed.

  • Turn the Sure-Lock™ OFF.
  • Check if the limits are properly set.
  • Check the garage door balance, condition, and garage door spring.
  • Check opening “FORCE” adjustment.
  • WARNING: If you suspect a problem with the garage door hardware or springs, use the locator to hire a local door service professional.
  • NEVER try to repair door hardware or springs yourself. ​​

The Garage Door Opener Starts For No Reason.

  • Button stuck on wall control or remote.
  • Was the garage door opener remote lost or stolen? Erase all remotes from powerhead memory and program new remotes​​

The Garage Door Opener Has A Noisy Operation.

  • Be sure all door fasteners are tight.
  • Be sure garage door is in good repair, properly lubricated and balanced.
  • Be sure opener is in good repair.

The Garage Door Opener Runs Slow.

  • Check operating condition of the garage door. The garage door may need professional repair/adjustment
  • Have you installed this garage door opener on a one-piece garage door? This garage door opener is not designed to operate a one-piece door.
