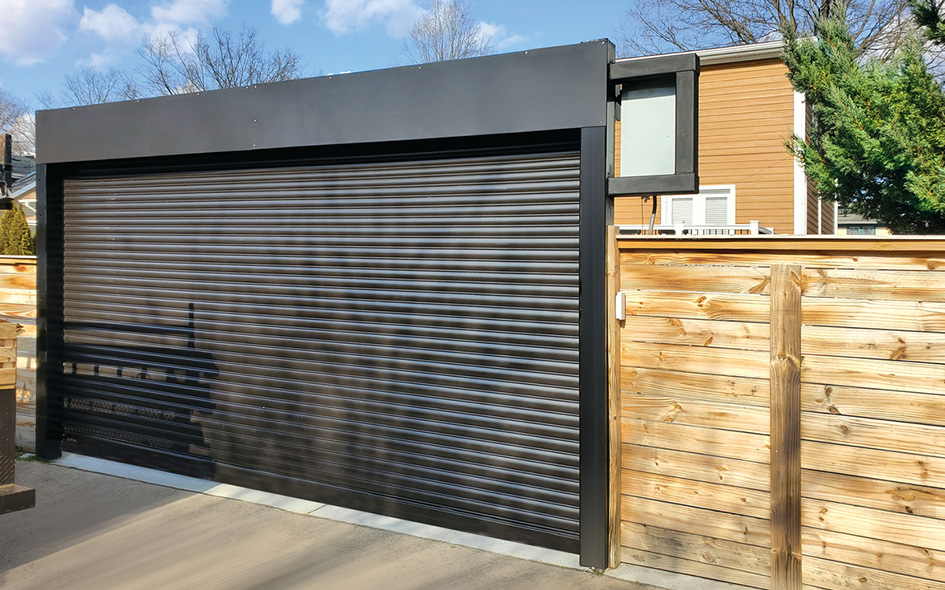

Allura® Collection Residential Exterior Shutter Model 653RX

Allura® Collection Residential Exterior Shutter Model 653RX

Residential Exterior Shutter System

An ideal door and operator system for homes needing to provide security and restrict unwanted access from the street into driveways in high traffic areas. The Allura® Residential Exterior Shutter System is specifically designed to prevent back drive of door to gain access. A first in in the industry, the system is UL 325 listed for safety standards in residential applications. In addition, the Allura® 653RX comes with a weather resistant enclosure and direct drive operation with monitored photo eyes for safe operation. For additional security, cylinder locking options are also available.

The extruded aluminum curtain, guides and bottom bar provide aesthetically pleasing, compact design with an attractive, finished look to the secured space when the shutter is closed.

Construction

Product Specifications
ApplicationDesigned to restrict driveway access
Curtain and GuidesExtruded aluminum curtain and guides provide aesthetically pleasing, compact design with an attractive, finished look
Standard Max Width16’
Standard Max Height12’
Operator EnclosureWeather resistant enclosure for direct drive operator with quiet DC motor
OperationUL 325 listed for residential exterior shutter application with monitored NEMA 4X photo eyes and door force detection for safety
Slat OptionsFully perforated or fenestrated slat options allow for visual access while maintaining security
HoodSloped hood to promote moisture runoff
MountingExterior face of wall mounted to tube frame structure
Battery BackupBBU included for door operation during brief power outages. Manual operation in the event of extended outage

Warranty

  • Shutter: Two year limited warranty on parts, components and finish ​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​
  • Operator: Limited lifetime, accessories one year, core unit parts – two years, other parts and components – one year

Slat Style

  • solid slat exterior shutter

    Solid

  • perforated slat exterior shutter

    Perforated

  • Fenestrated Slat exterior shutter

    Fenestrated

Options

  • Cylinder locking bottom bar (requires interlocks)
  • Operator accessories: additional 3-button remotes, master remote, wireless keypad and push button stations

Standard Powder Coat Finish

  • white powder coat swatch

    White

  • shutter powder coat almond swatch

    Almond

  • shutter silver powder coat swatch

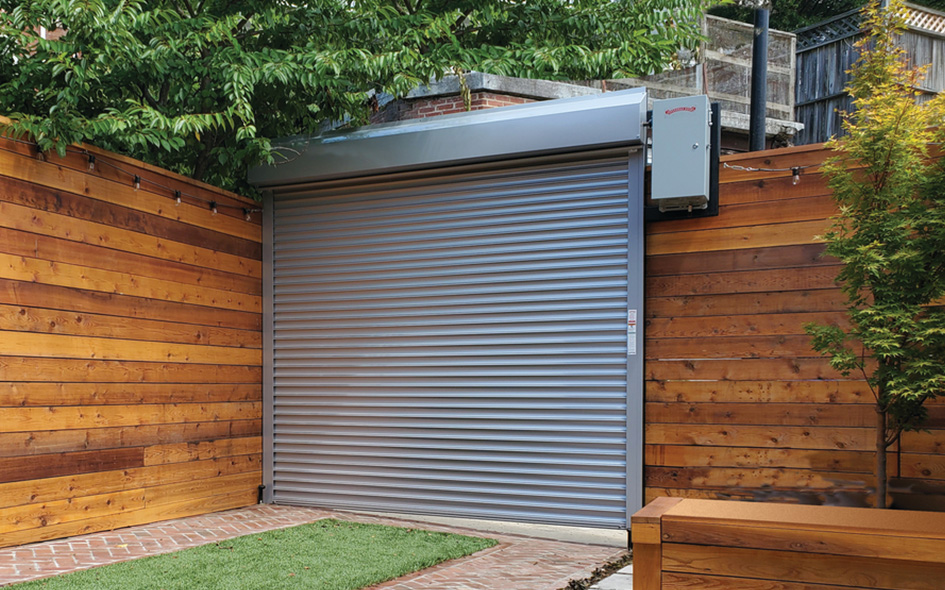

    Silver

  • bronze shutter powder coat swatch

    Bronze

*Silver and Bronze powder coat made to mimic anodized aluminum.

Powder Coat Color Options

PowderGuard® Premium powder coat options are available in approximately 200 colors as well as custom matching to specification.

Powder Guard Coat Colors
